Component Parts Location

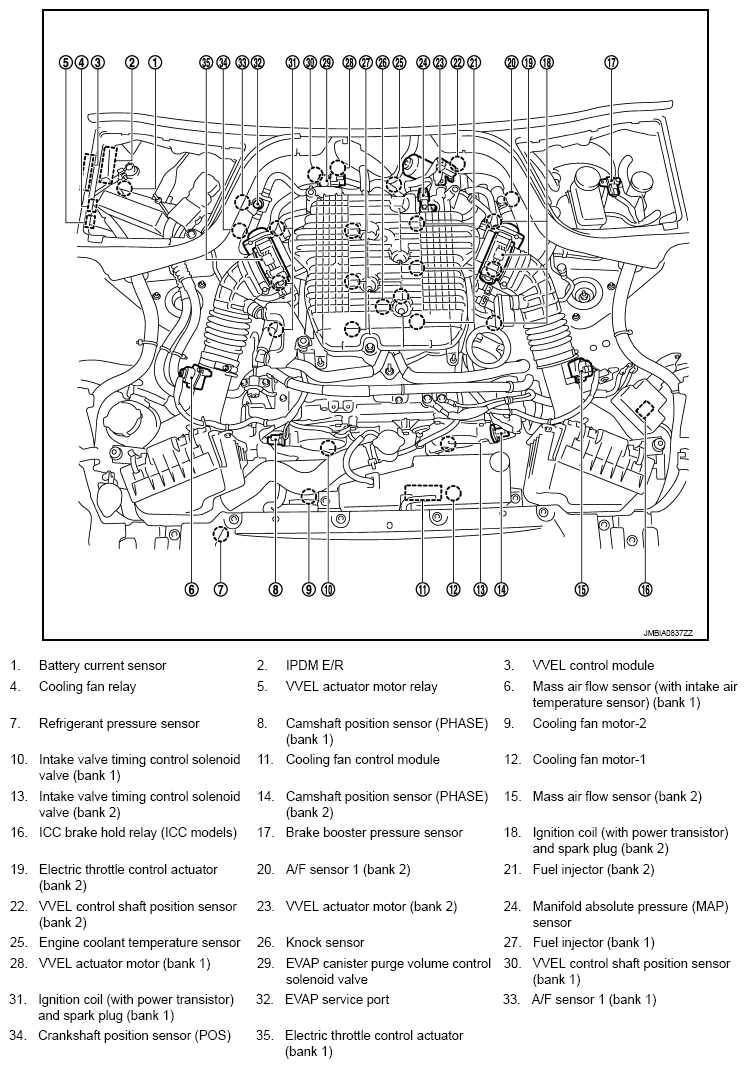

Fig 1: Identifying Cooling Fan Control Component Parts Location (1 Of 21)

G07159567

Courtesy of NISSAN MOTOR CO., U.S.A.

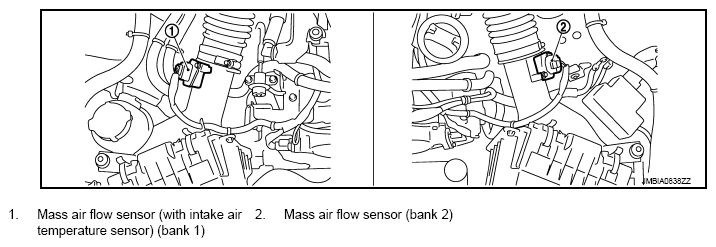

Fig 2: Identifying Cooling Fan Control Component Parts Location (2 Of 21)

G07159568

Courtesy of NISSAN MOTOR CO., U.S.A.

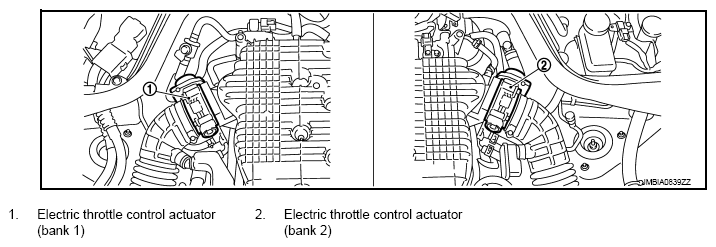

Fig 3: Identifying Cooling Fan Control Component Parts Location (3 Of 21)

G07159569

Courtesy of NISSAN MOTOR CO., U.S.A.

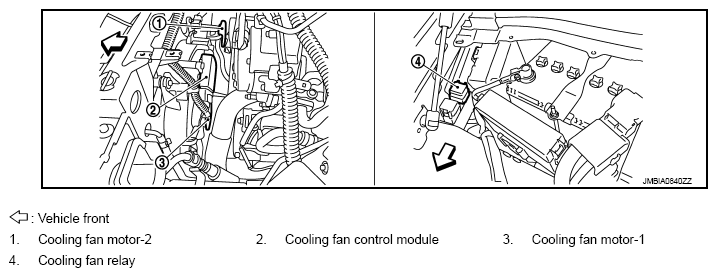

Fig 4: Identifying Cooling Fan Control Component Parts Location (4 Of 21)

G07159570

Courtesy of NISSAN MOTOR CO., U.S.A.

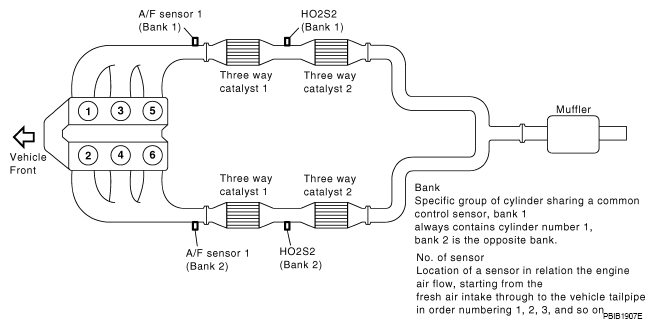

Fig 5: Identifying Cooling Fan Control Component Parts Location (5 Of 21)

G07159571

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Cooling Fan Control Component Parts Location (6 Of 21)

G07159572

Courtesy of NISSAN MOTOR CO., U.S.A.

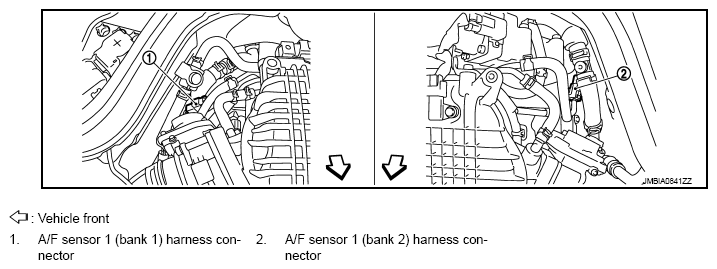

Fig 7: Identifying Cooling Fan Control Component Parts Location (7 Of 21)

G07159573

Courtesy of NISSAN MOTOR CO., U.S.A.

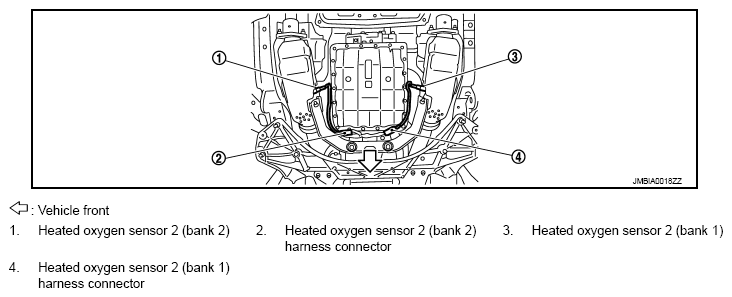

Fig 8: Identifying Cooling Fan Control Component Parts Location (8 Of 21)

G07159574

Courtesy of NISSAN MOTOR CO., U.S.A.

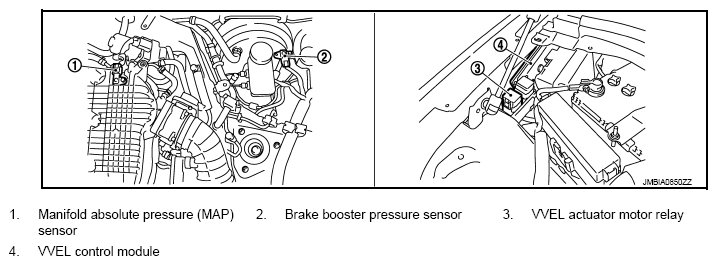

Fig 9: Identifying Cooling Fan Control Component Parts Location (9 Of 21)

G07159575

Courtesy of NISSAN MOTOR CO., U.S.A.

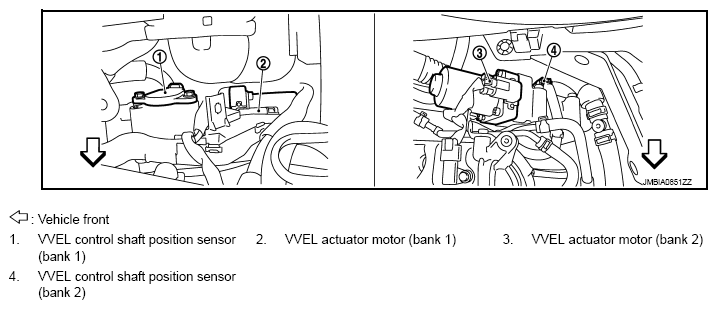

Fig 10: Identifying Cooling Fan Control Component Parts Location (10 Of 21)

G07159576

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Cooling Fan Control Component Parts Location (11 Of 21)

G07159577

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Cooling Fan Control Component Parts Location (12 Of 21)

G07159578

Courtesy of NISSAN MOTOR CO., U.S.A.

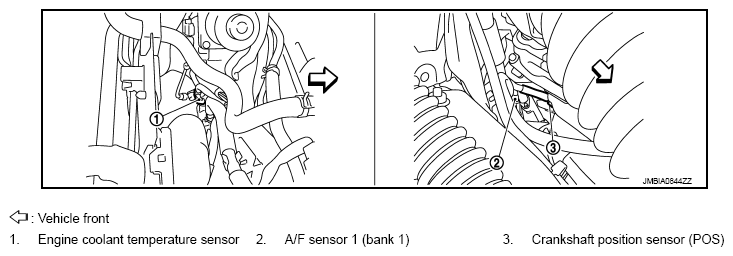

Fig 13: Identifying Cooling Fan Control Component Parts Location (13 Of 21)

G07159579

Courtesy of NISSAN MOTOR CO., U.S.A.

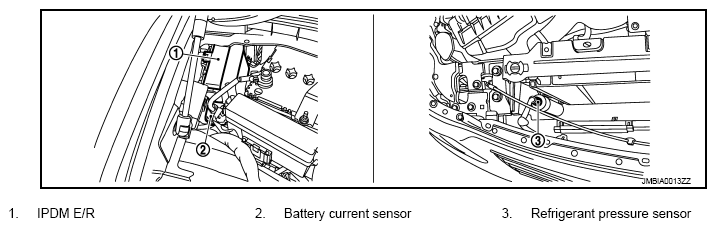

Fig 14: Identifying Cooling Fan Control Component Parts Location (14 Of 21)

G07159580

Courtesy of NISSAN MOTOR CO., U.S.A.

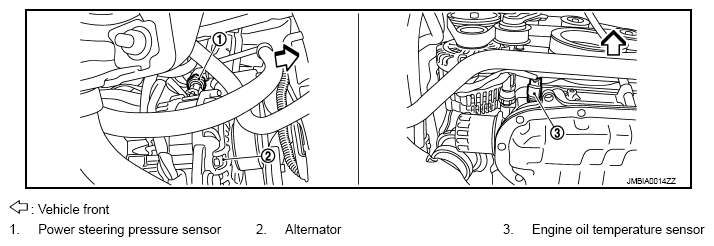

Fig 15: Identifying Cooling Fan Control Component Parts Location (15 Of 21)

G07159581

Courtesy of NISSAN MOTOR CO., U.S.A.

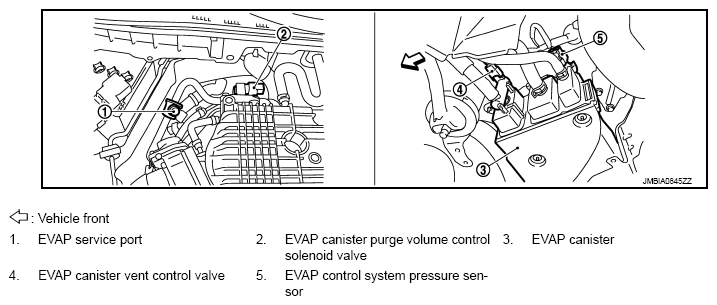

Fig 16: Identifying Cooling Fan Control Component Parts Location (16 Of 21)

G07159582

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Cooling Fan Control Component Parts Location (17 Of 21)

G07159583

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Cooling Fan Control Component Parts Location (18 Of 21)

G07159584

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Cooling Fan Control Component Parts Location (19 Of 21)

G07159585

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Cooling Fan Control Component Parts Location (20 Of 21)

G07159586

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Cooling Fan Control Component Parts Location (21 Of 21)

G07159587

Courtesy of NISSAN MOTOR CO., U.S.A.
