Component Parts Location

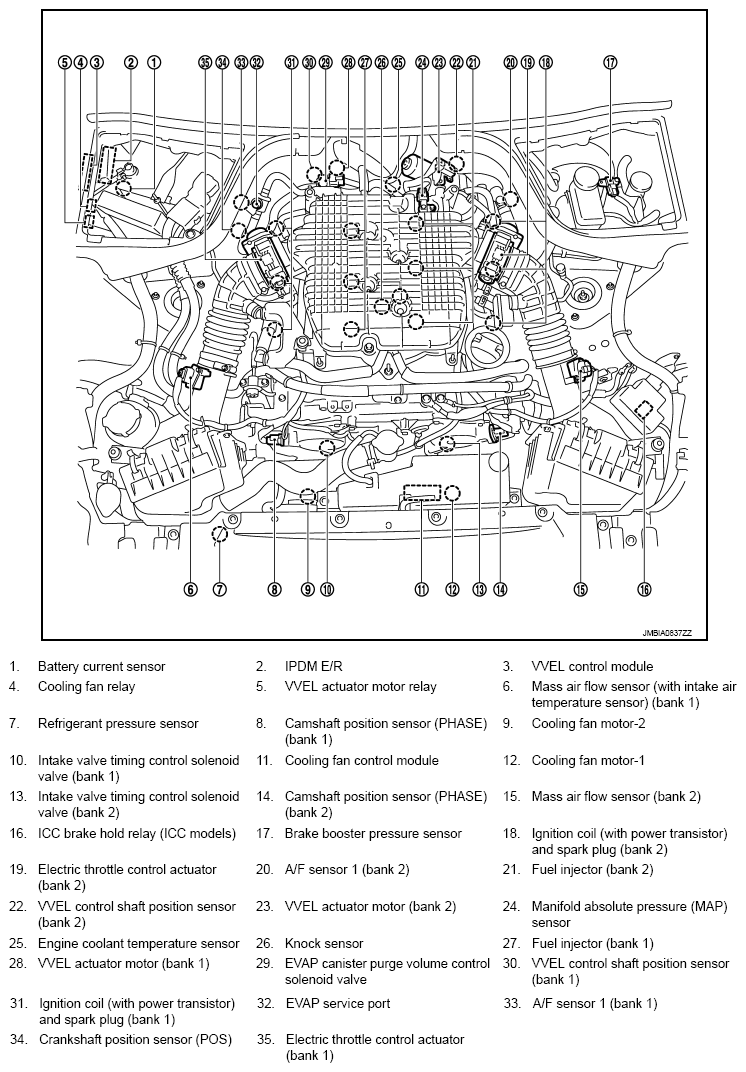

Fig 1: Identifying Electric Ignition System Component Parts Location (1 Of 21)

G07159501

Courtesy of NISSAN MOTOR CO., U.S.A.

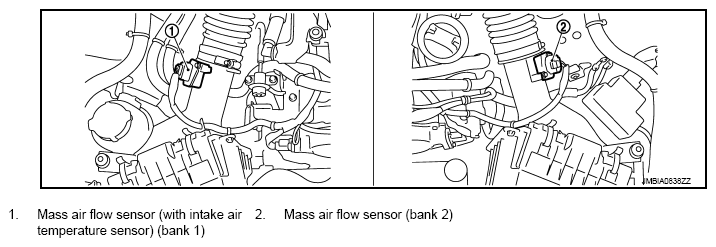

Fig 2: Identifying Electric Ignition System Component Parts Location (2 Of 21)

G07159502

Courtesy of NISSAN MOTOR CO., U.S.A.

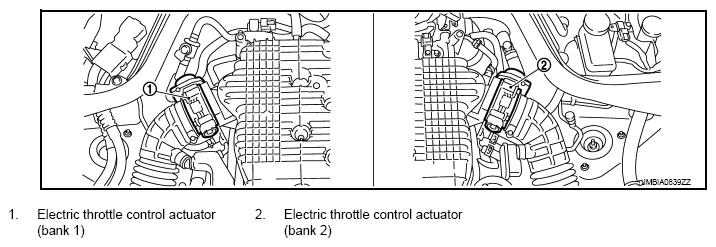

Fig 3: Identifying Electric Ignition System Component Parts Location (3 Of 21)

G07159503

Courtesy of NISSAN MOTOR CO., U.S.A.

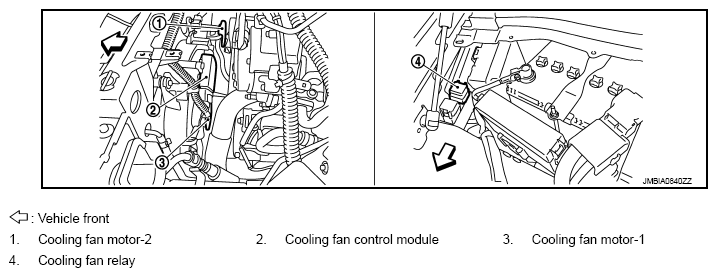

Fig 4: Identifying Electric Ignition System Component Parts Location (4 Of 21)

G07159504

Courtesy of NISSAN MOTOR CO., U.S.A.

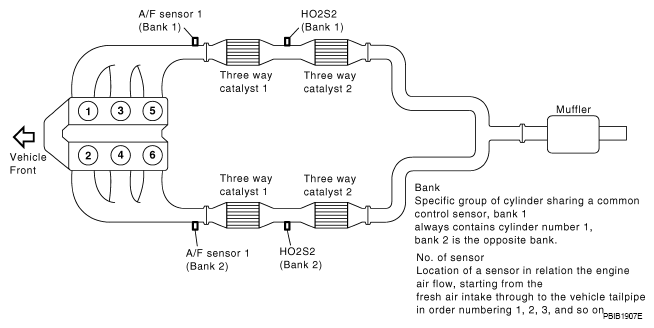

Fig 5: Identifying Electric Ignition System Component Parts Location (5 Of 21)

G07159505

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Electric Ignition System Component Parts Location (6 Of 21)

G07159506

Courtesy of NISSAN MOTOR CO., U.S.A.

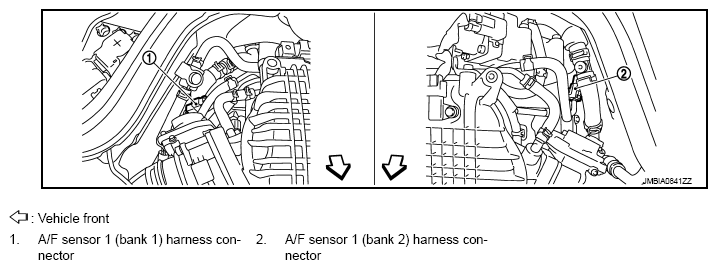

Fig 7: Identifying Electric Ignition System Component Parts Location (7 Of 21)

G07159507

Courtesy of NISSAN MOTOR CO., U.S.A.

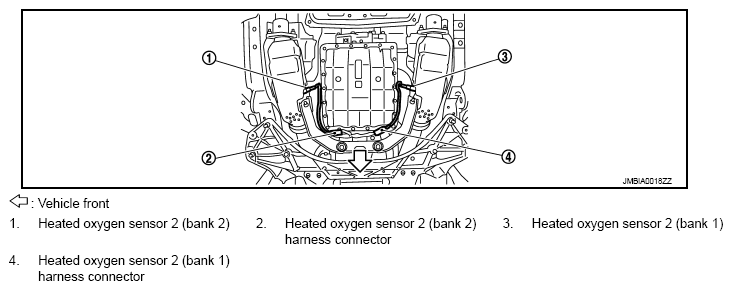

Fig 8: Identifying Electric Ignition System Component Parts Location (8 Of 21)

G07159508

Courtesy of NISSAN MOTOR CO., U.S.A.

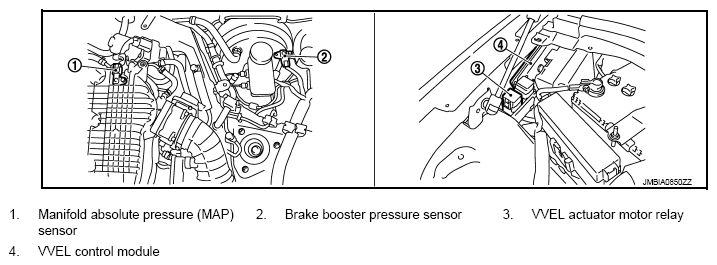

Fig 9: Identifying Electric Ignition System Component Parts Location (9 Of 21)

G07159509

Courtesy of NISSAN MOTOR CO., U.S.A.

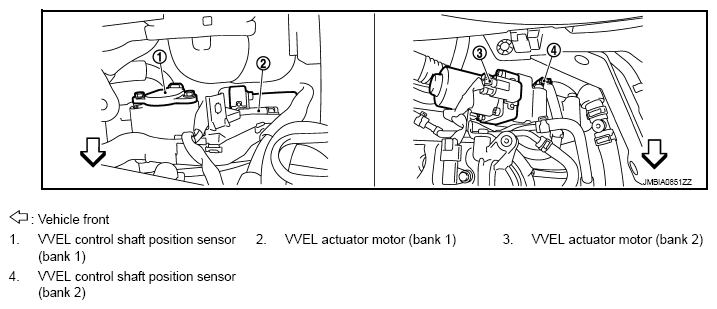

Fig 10: Identifying Electric Ignition System Component Parts Location (10 Of 21)

G07159510

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Electric Ignition System Component Parts Location (11 Of 21)

G07159511

Courtesy of NISSAN MOTOR CO., U.S.A.

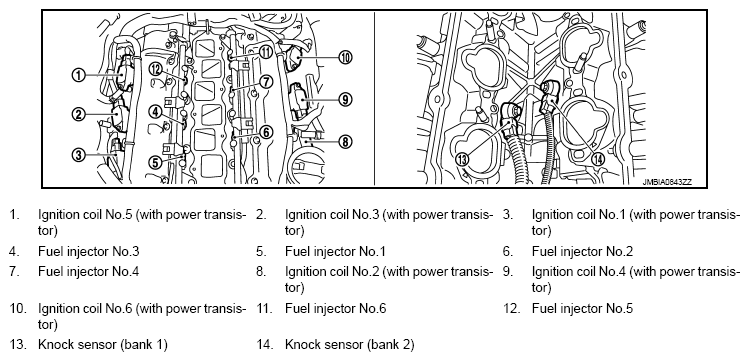

Fig 12: Identifying Electric Ignition System Component Parts Location (12 Of 21)

G07159512

Courtesy of NISSAN MOTOR CO., U.S.A.

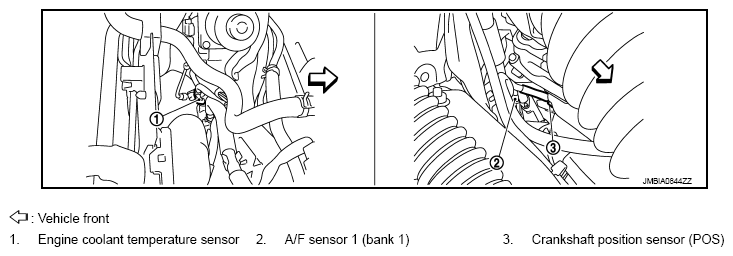

Fig 13: Identifying Electric Ignition System Component Parts Location (13 Of 21)

G07159513

Courtesy of NISSAN MOTOR CO., U.S.A.

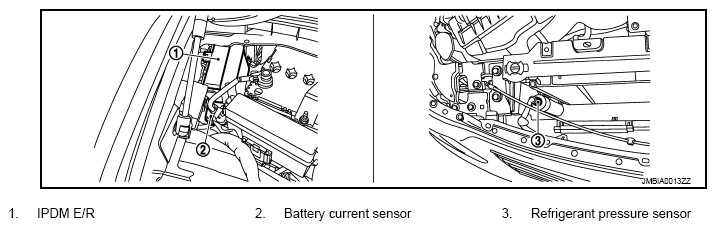

Fig 14: Identifying Electric Ignition System Component Parts Location (14 Of 21)

G07159514

Courtesy of NISSAN MOTOR CO., U.S.A.

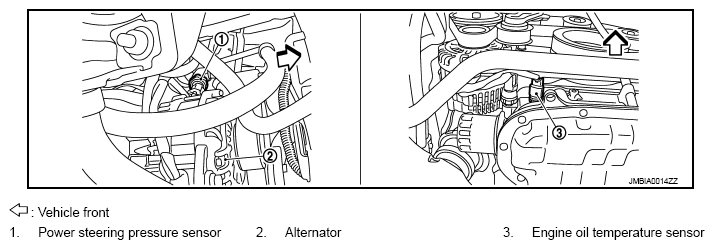

Fig 15: Identifying Electric Ignition System Component Parts Location (15 Of 21)

G07159515

Courtesy of NISSAN MOTOR CO., U.S.A.

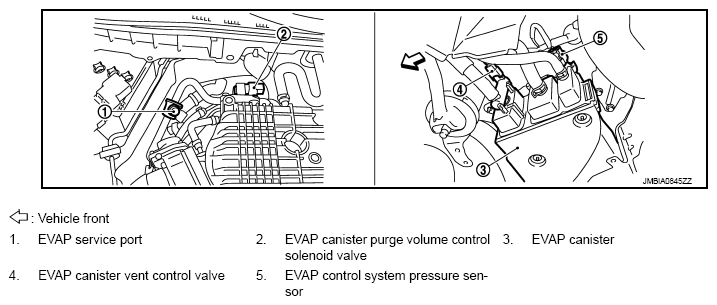

Fig 16: Identifying Electric Ignition System Component Parts Location (16 Of 21)

G07159516

Courtesy of NISSAN MOTOR CO., U.S.A.

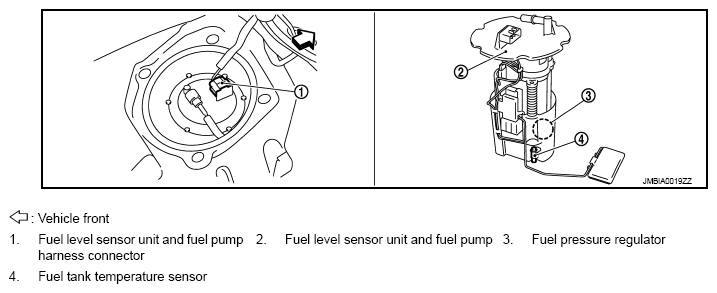

Fig 17: Identifying Electric Ignition System Component Parts Location (17 Of 21)

G07159517

Courtesy of NISSAN MOTOR CO., U.S.A.

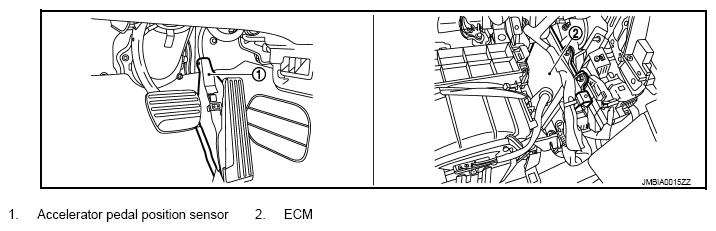

Fig 18: Identifying Electric Ignition System Component Parts Location (18 Of 21)

G07159518

Courtesy of NISSAN MOTOR CO., U.S.A.

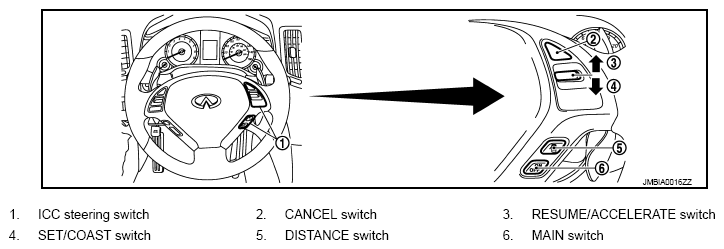

Fig 19: Identifying Electric Ignition System Component Parts Location (19 Of 21)

G07159519

Courtesy of NISSAN MOTOR CO., U.S.A.

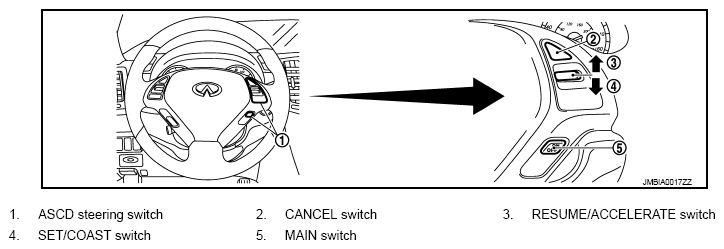

Fig 20: Identifying Electric Ignition System Component Parts Location (20 Of 21)

G07159520

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Electric Ignition System Component Parts Location (21 Of 21)

G07159521

Courtesy of NISSAN MOTOR CO., U.S.A.
