Component Parts Location

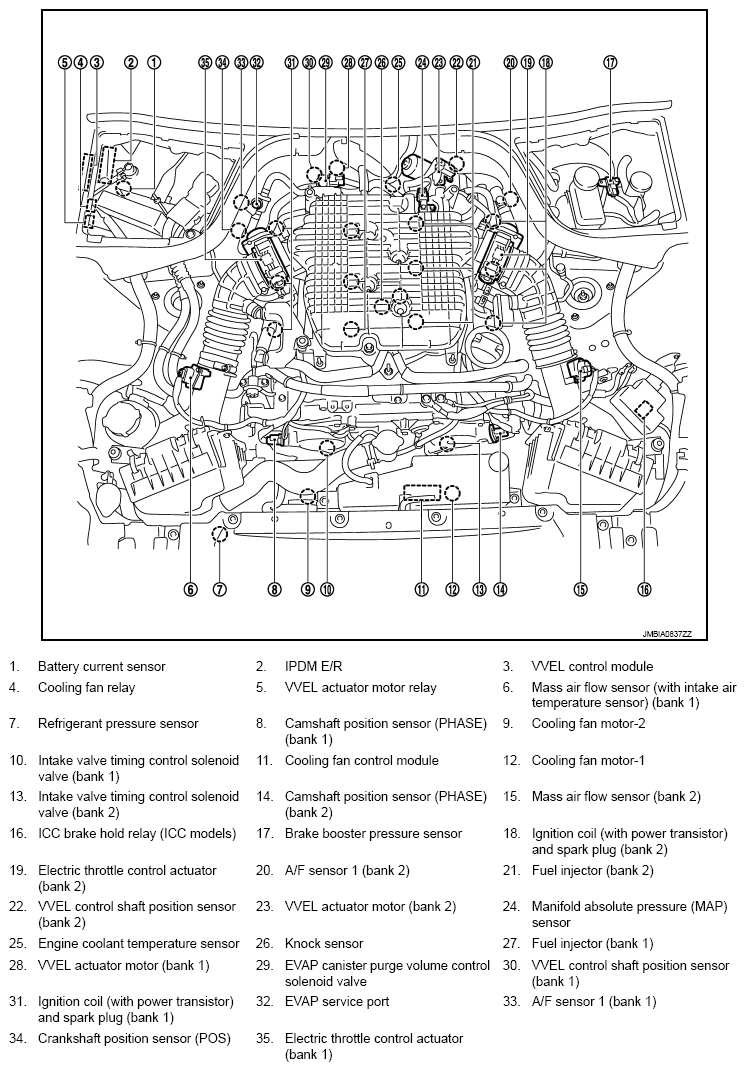

Fig 1: Identifying Fuel Filler Cap Warning System Component Parts Location (1 Of 21)

G07159614

Courtesy of NISSAN MOTOR CO., U.S.A.

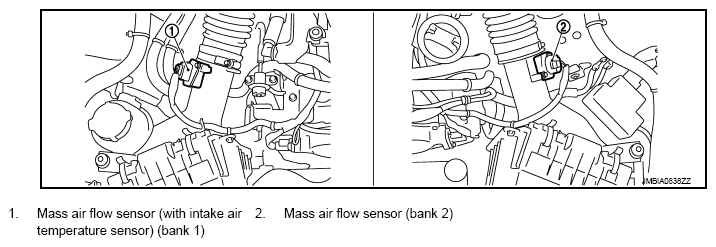

Fig 2: Identifying Fuel Filler Cap Warning System Component Parts Location (2 Of 21)

G07159615

Courtesy of NISSAN MOTOR CO., U.S.A.

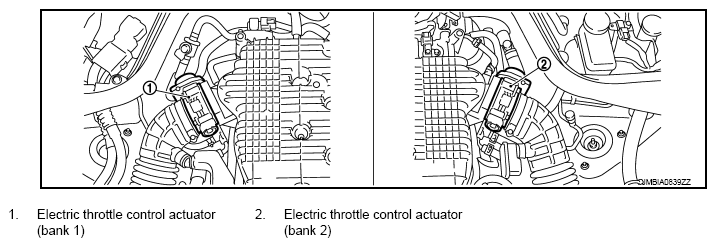

Fig 3: Identifying Fuel Filler Cap Warning System Component Parts Location (3 Of 21)

G07159616

Courtesy of NISSAN MOTOR CO., U.S.A.

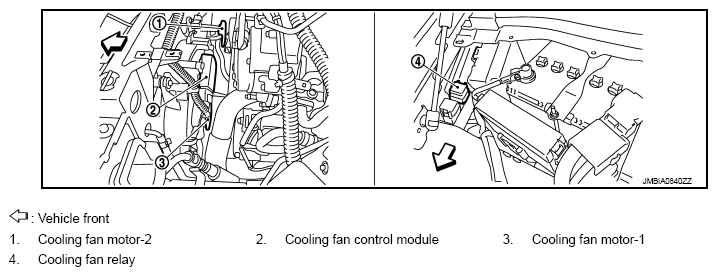

Fig 4: Identifying Fuel Filler Cap Warning System Component Parts Location (4 Of 21)

G07159617

Courtesy of NISSAN MOTOR CO., U.S.A.

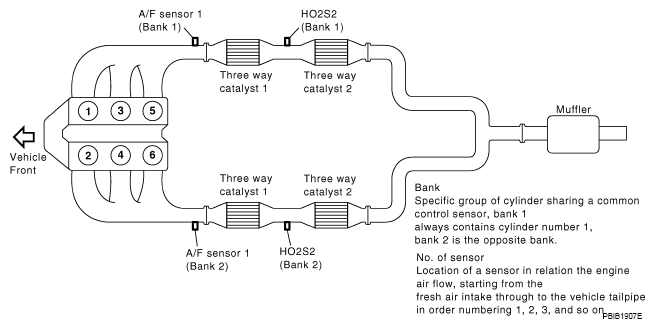

Fig 5: Identifying Fuel Filler Cap Warning System Component Parts Location (5 Of 21)

G07159618

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Fuel Filler Cap Warning System Component Parts Location (6 Of 21)

G07159619

Courtesy of NISSAN MOTOR CO., U.S.A.

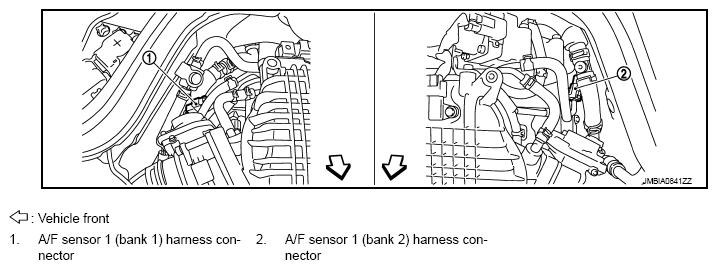

Fig 7: Identifying Fuel Filler Cap Warning System Component Parts Location (7 Of 21)

G07159620

Courtesy of NISSAN MOTOR CO., U.S.A.

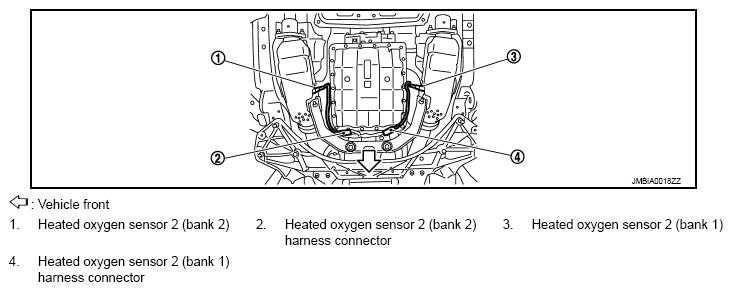

Fig 8: Identifying Fuel Filler Cap Warning System Component Parts Location (8 Of 21)

G07159621

Courtesy of NISSAN MOTOR CO., U.S.A.

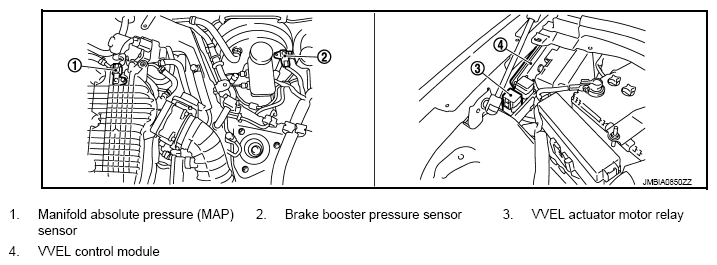

Fig 9: Identifying Fuel Filler Cap Warning System Component Parts Location (9 Of 21)

G07159622

Courtesy of NISSAN MOTOR CO., U.S.A.

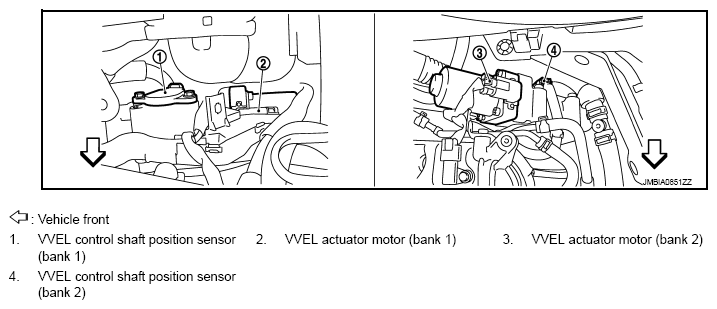

Fig 10: Identifying Fuel Filler Cap Warning System Component Parts Location (10 Of 21)

G07159623

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Fuel Filler Cap Warning System Component Parts Location (11 Of 21)

G07159624

Courtesy of NISSAN MOTOR CO., U.S.A.

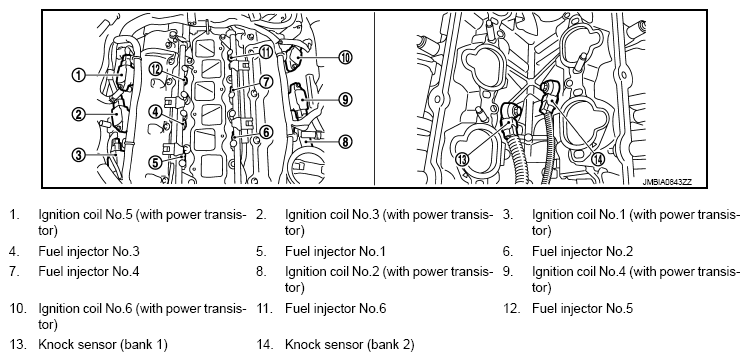

Fig 12: Identifying Fuel Filler Cap Warning System Component Parts Location (12 Of 21)

G07159625

Courtesy of NISSAN MOTOR CO., U.S.A.

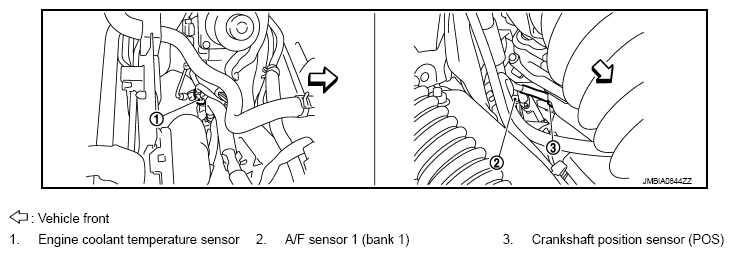

Fig 13: Identifying Fuel Filler Cap Warning System Component Parts Location (13 Of 21)

G07159626

Courtesy of NISSAN MOTOR CO., U.S.A.

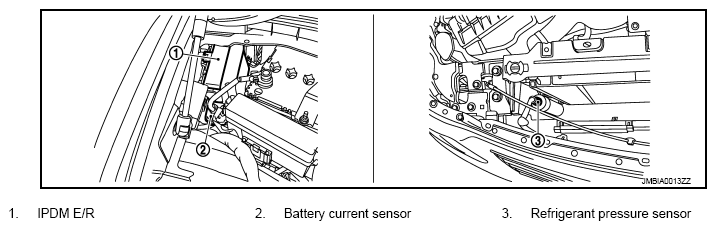

Fig 14: Identifying Fuel Filler Cap Warning System Component Parts Location (14 Of 21)

G07159627

Courtesy of NISSAN MOTOR CO., U.S.A.

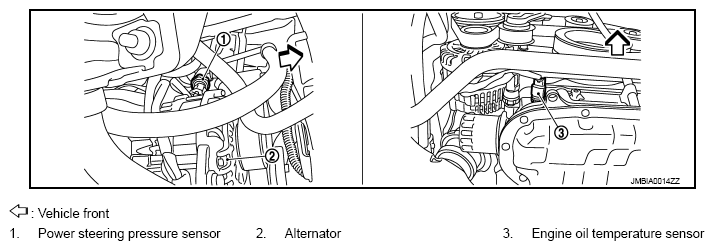

Fig 15: Identifying Fuel Filler Cap Warning System Component Parts Location (15 Of 21)

G07159628

Courtesy of NISSAN MOTOR CO., U.S.A.

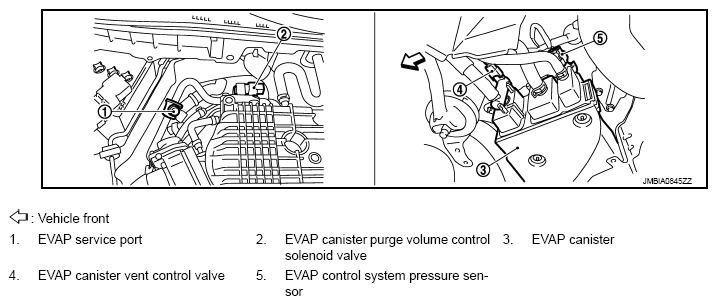

Fig 16: Identifying Fuel Filler Cap Warning System Component Parts Location (16 Of 21)

G07159629

Courtesy of NISSAN MOTOR CO., U.S.A.

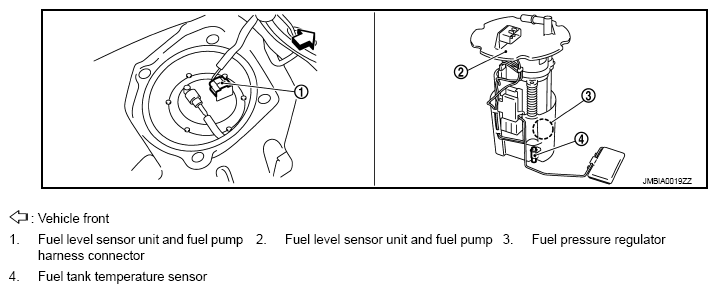

Fig 17: Identifying Fuel Filler Cap Warning System Component Parts Location (17 Of 21)

G07159630

Courtesy of NISSAN MOTOR CO., U.S.A.

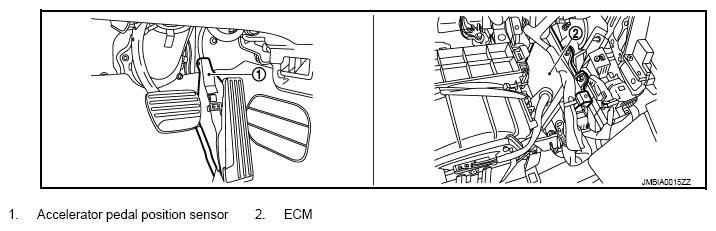

Fig 18: Identifying Fuel Filler Cap Warning System Component Parts Location (18 Of 21)

G07159631

Courtesy of NISSAN MOTOR CO., U.S.A.

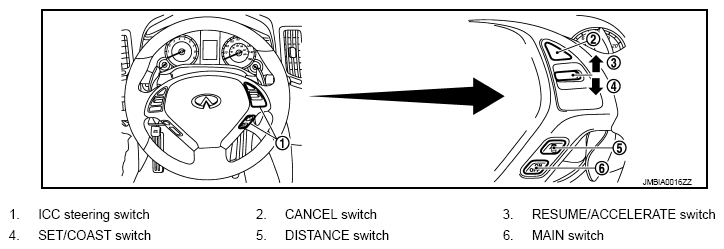

Fig 19: Identifying Fuel Filler Cap Warning System Component Parts Location (19 Of 21)

G07159632

Courtesy of NISSAN MOTOR CO., U.S.A.

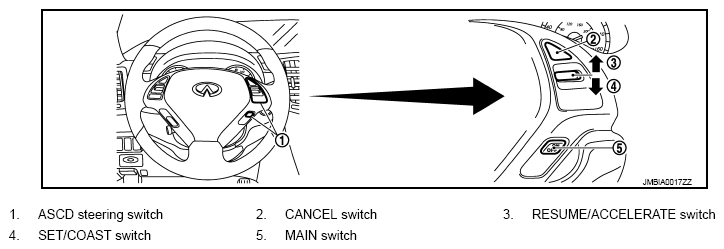

Fig 20: Identifying Fuel Filler Cap Warning System Component Parts Location (20 Of 21)

G07159633

Courtesy of NISSAN MOTOR CO., U.S.A.

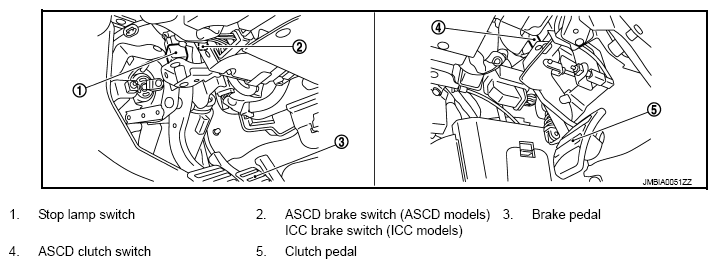

Fig 21: Identifying Fuel Filler Cap Warning System Component Parts Location (21 Of 21)

G07159634

Courtesy of NISSAN MOTOR CO., U.S.A.
