Component Parts Location

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 21)

G07159637

Courtesy of NISSAN MOTOR CO., U.S.A.

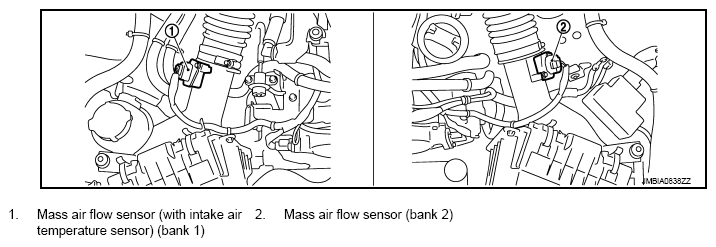

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 21)

G07159638

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 21)

G07159639

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 21)

G07159640

Courtesy of NISSAN MOTOR CO., U.S.A.

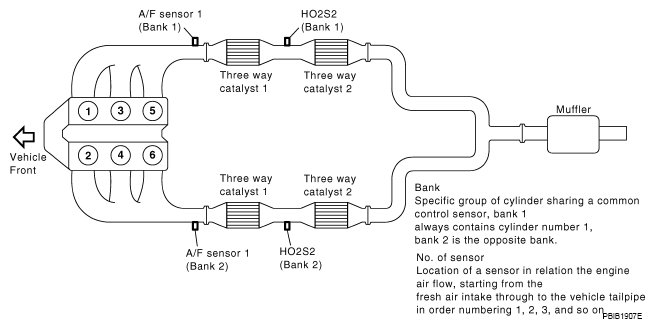

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 21)

G07159641

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 21)

G07159642

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 21)

G07159643

Courtesy of NISSAN MOTOR CO., U.S.A.

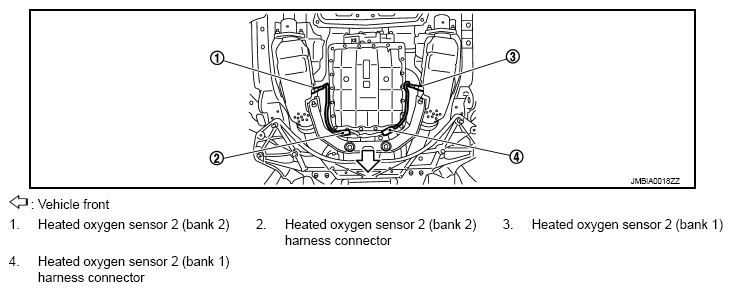

Fig 8: Identifying Intake Valve Timing Control Component Parts Location (8 Of 21)

G07159644

Courtesy of NISSAN MOTOR CO., U.S.A.

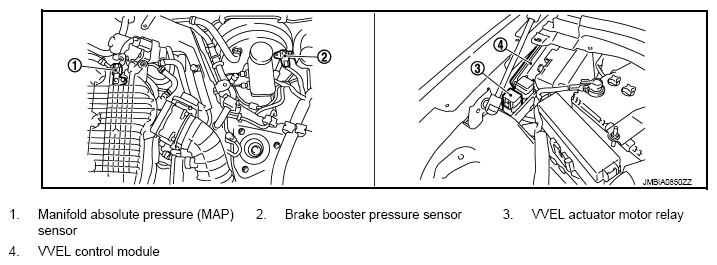

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (9 Of 21)

G07159645

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Intake Valve Timing Control Component Parts Location (10 Of 21)

G07159646

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Intake Valve Timing Control Component Parts Location (11 Of 21)

G07159647

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (12 Of 21)

G07159648

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Intake Valve Timing Control Component Parts Location (13 Of 21)

G07159649

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Intake Valve Timing Control Component Parts Location (14 Of 21)

G07159650

Courtesy of NISSAN MOTOR CO., U.S.A.

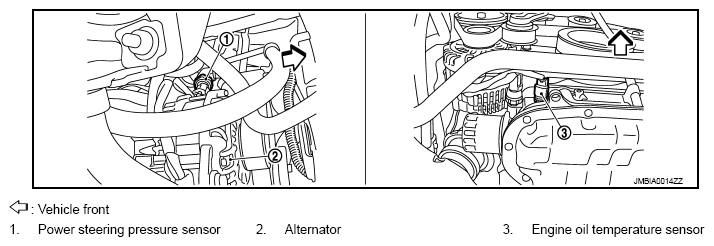

Fig 15: Identifying Intake Valve Timing Control Component Parts Location (15 Of 21)

G07159651

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Intake Valve Timing Control Component Parts Location (16 Of 21)

G07159652

Courtesy of NISSAN MOTOR CO., U.S.A.

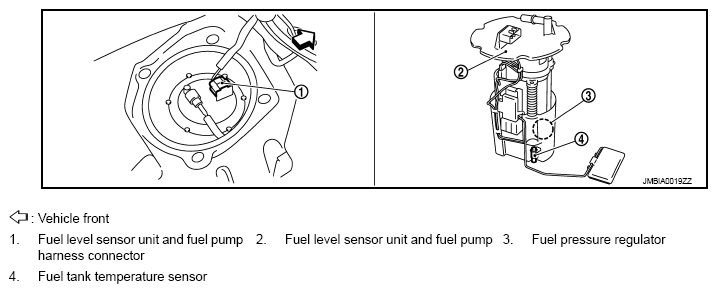

Fig 17: Identifying Intake Valve Timing Control Component Parts Location (17 Of 21)

G07159653

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Intake Valve Timing Control Component Parts Location (18 Of 21)

G07159654

Courtesy of NISSAN MOTOR CO., U.S.A.

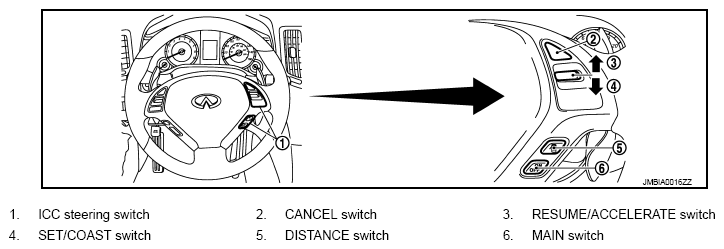

Fig 19: Identifying Intake Valve Timing Control Component Parts Location (19 Of 21)

G07159655

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Intake Valve Timing Control Component Parts Location (20 Of 21)

G07159656

Courtesy of NISSAN MOTOR CO., U.S.A.

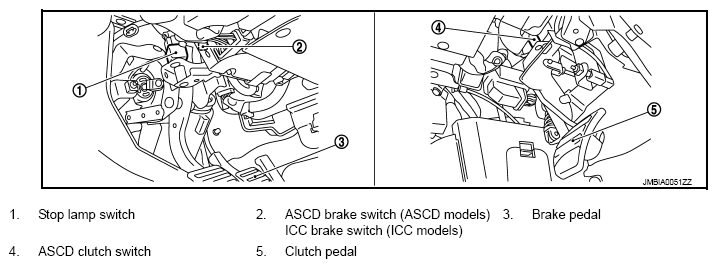

Fig 21: Identifying Intake Valve Timing Control Component Parts Location (21 Of 21)

G07159657
