Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

WARNING: This page is about a different variant/trim than selected.

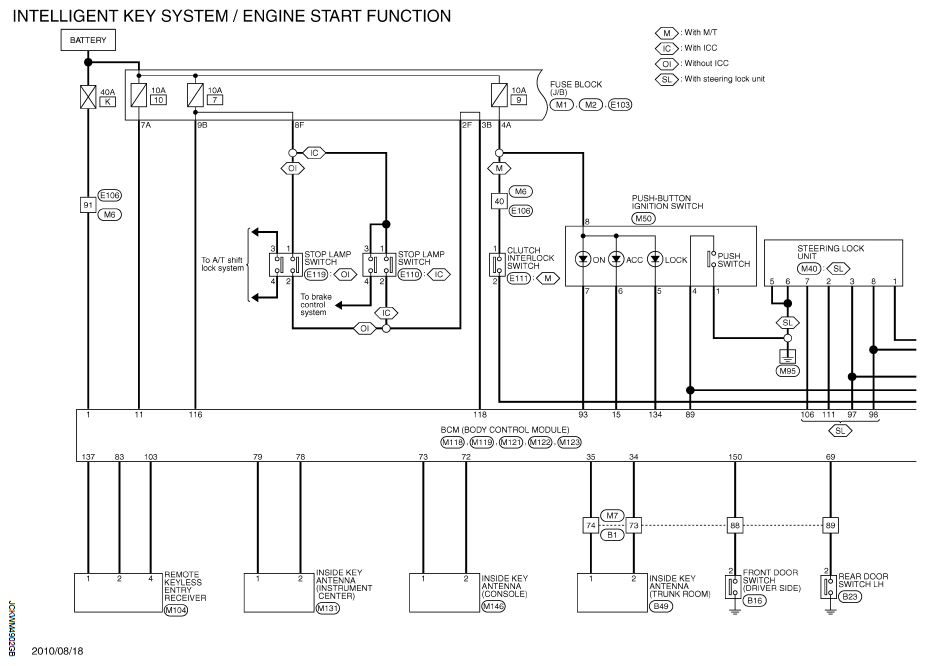

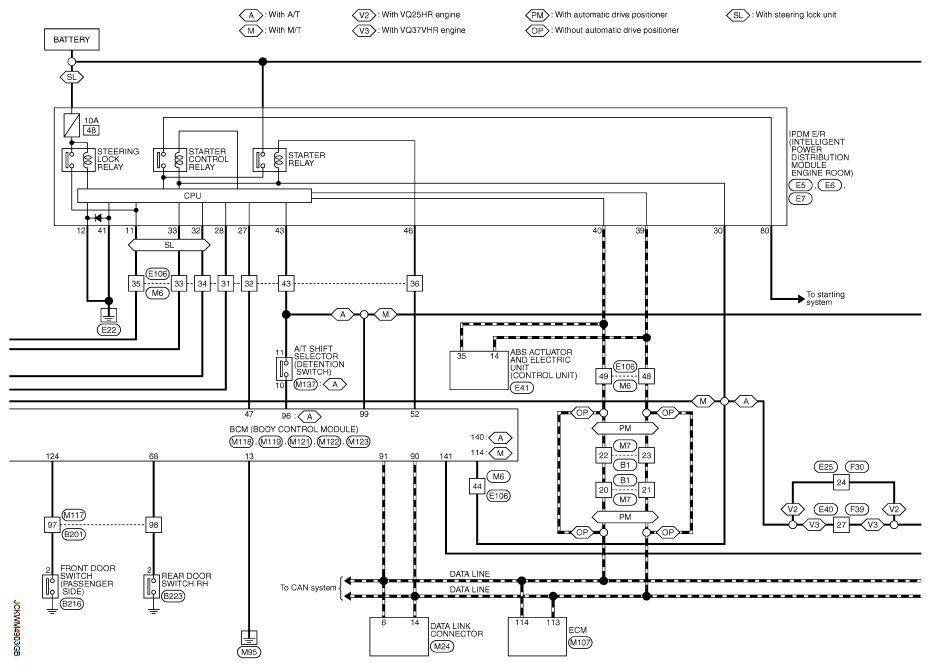

Fig 1: Intelligent Key System/Engine Start Function - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

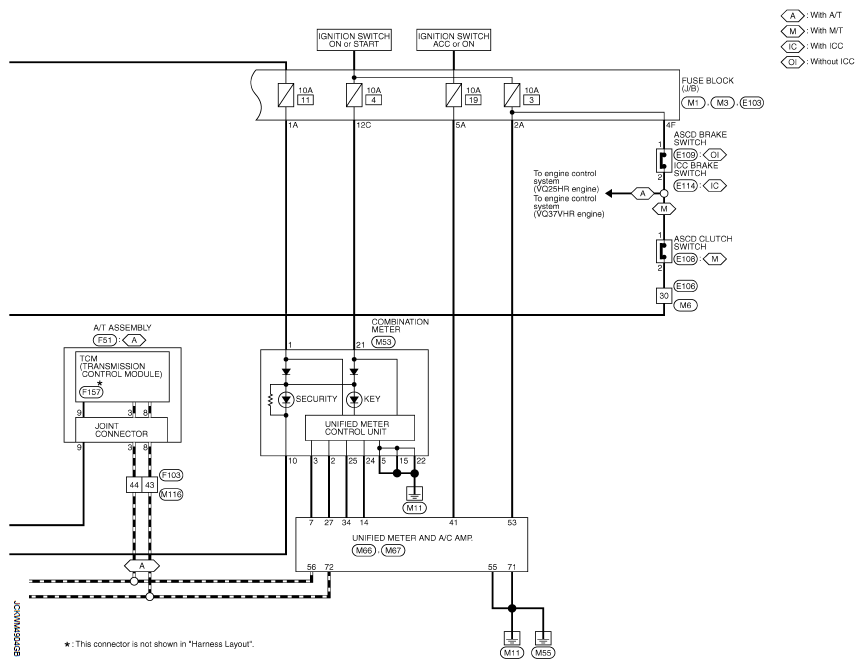

Fig 2: Intelligent Key System/Engine Start Function - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Intelligent Key System/Engine Start Function - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

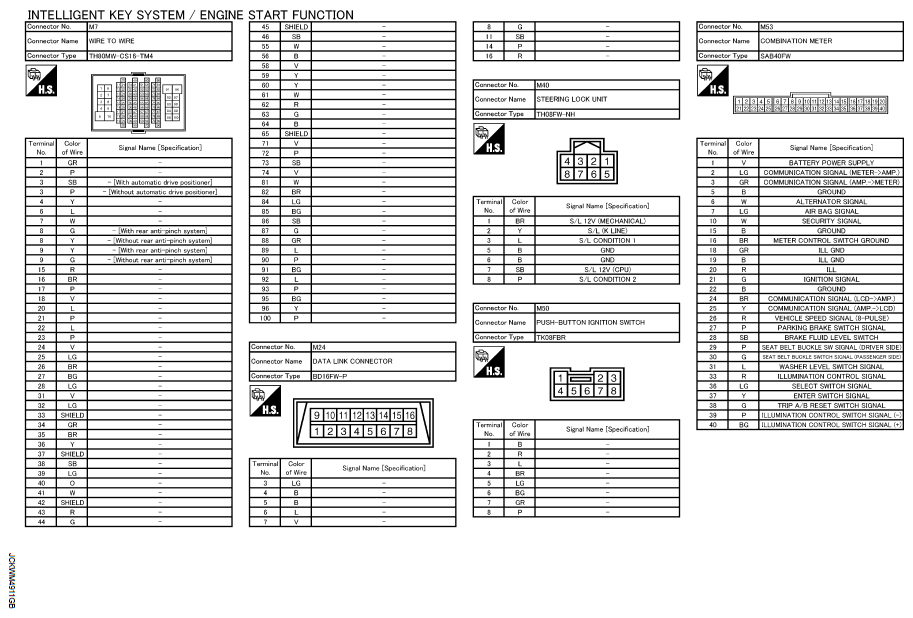

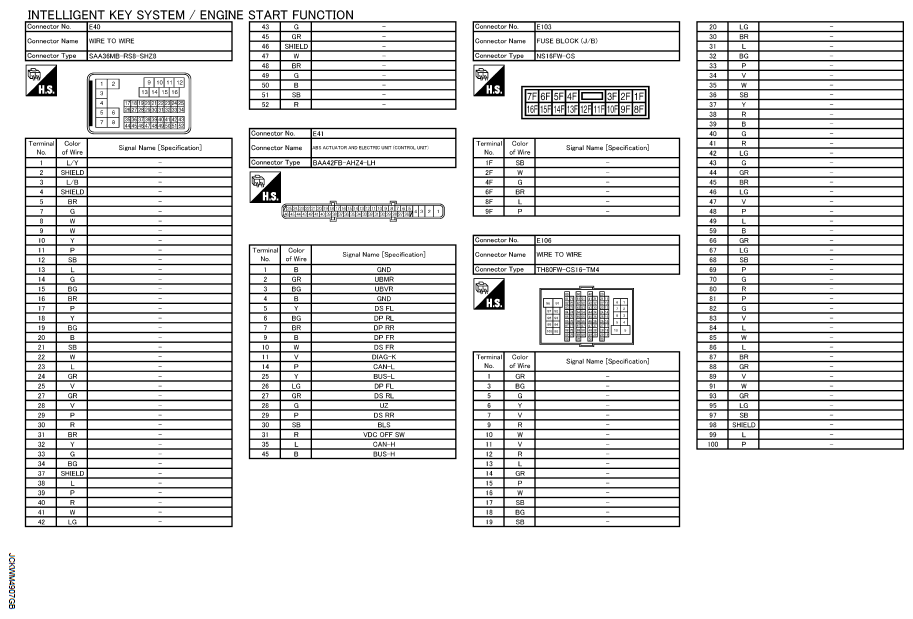

Fig 4: Identifying Intelligent Key System/Engine Start Function Connectors (1 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

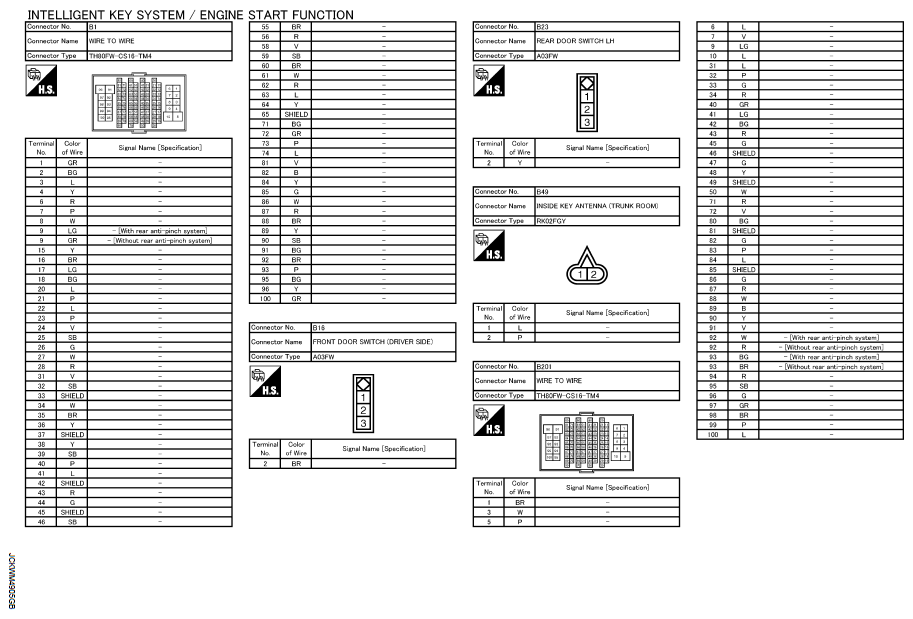

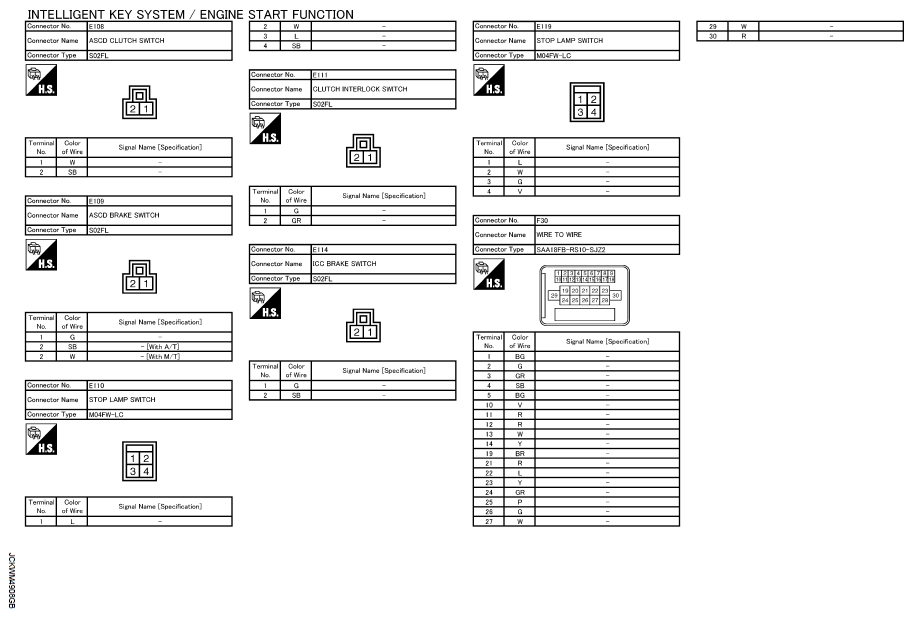

Fig 5: Identifying Intelligent Key System/Engine Start Function Connectors (2 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

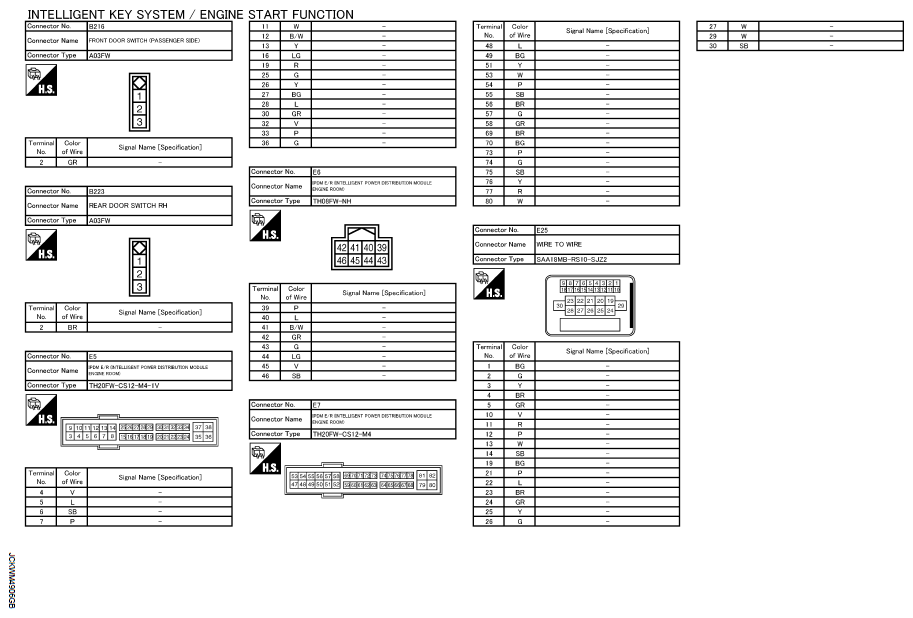

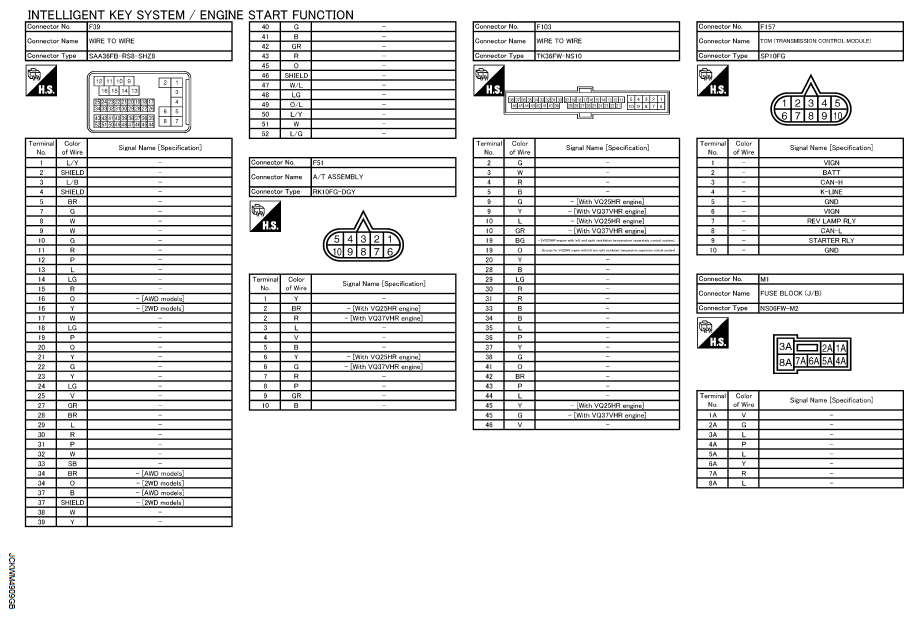

Fig 6: Identifying Intelligent Key System/Engine Start Function Connectors (3 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

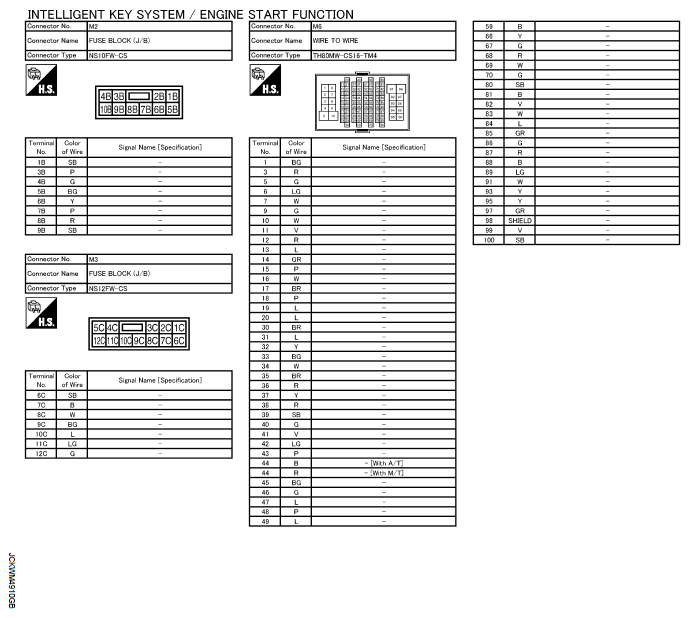

Fig 7: Identifying Intelligent Key System/Engine Start Function Connectors (4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Intelligent Key System/Engine Start Function Connectors (5 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

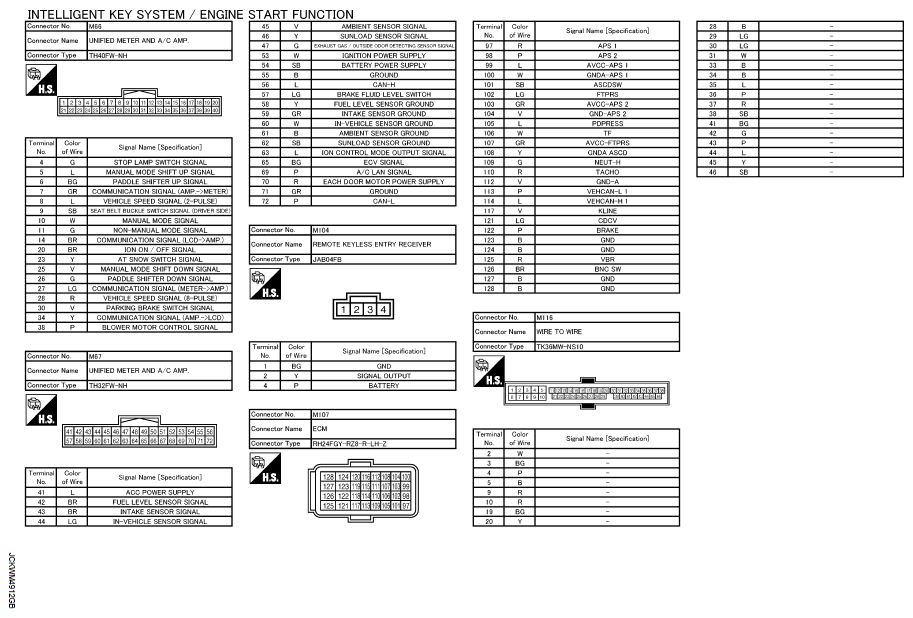

Fig 9: Identifying Intelligent Key System/Engine Start Function Connectors (6 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

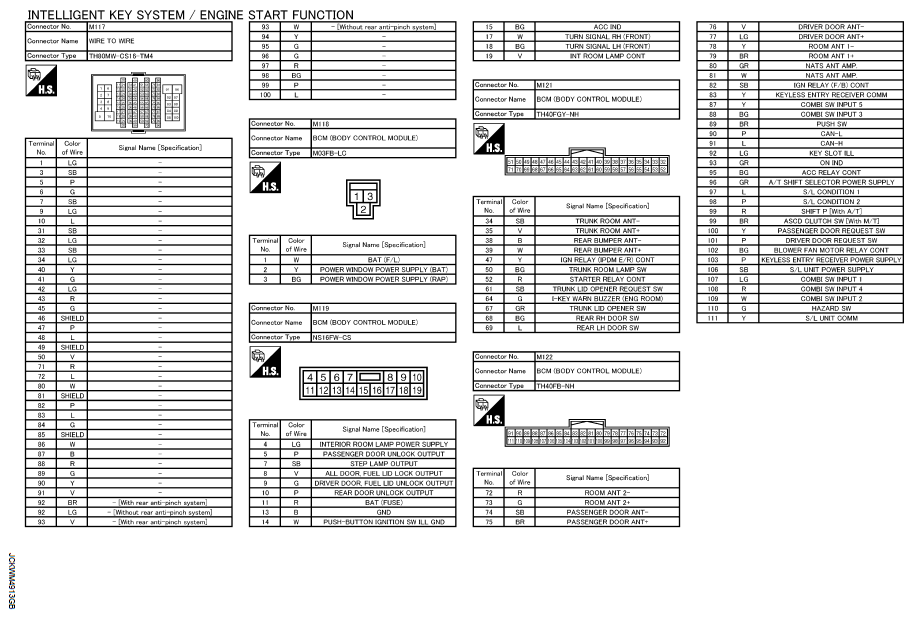

Fig 10: Identifying Intelligent Key System/Engine Start Function Connectors (7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

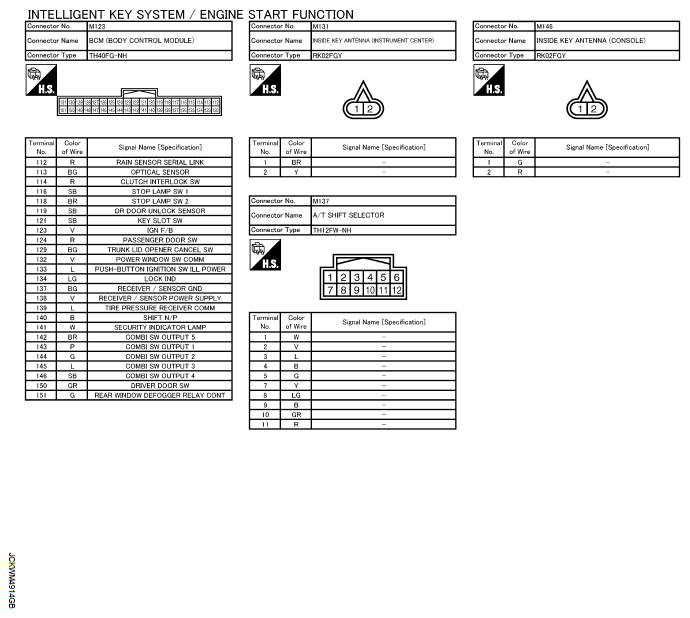

Fig 11: Identifying Intelligent Key System/Engine Start Function Connectors (8 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intelligent Key System/Engine Start Function Connectors (9 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Intelligent Key System/Engine Start Function Connectors (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
