Wiring Diagram - VEHICLE SECURITY SYSTEM -

WARNING: This page is about a different variant/trim than selected.

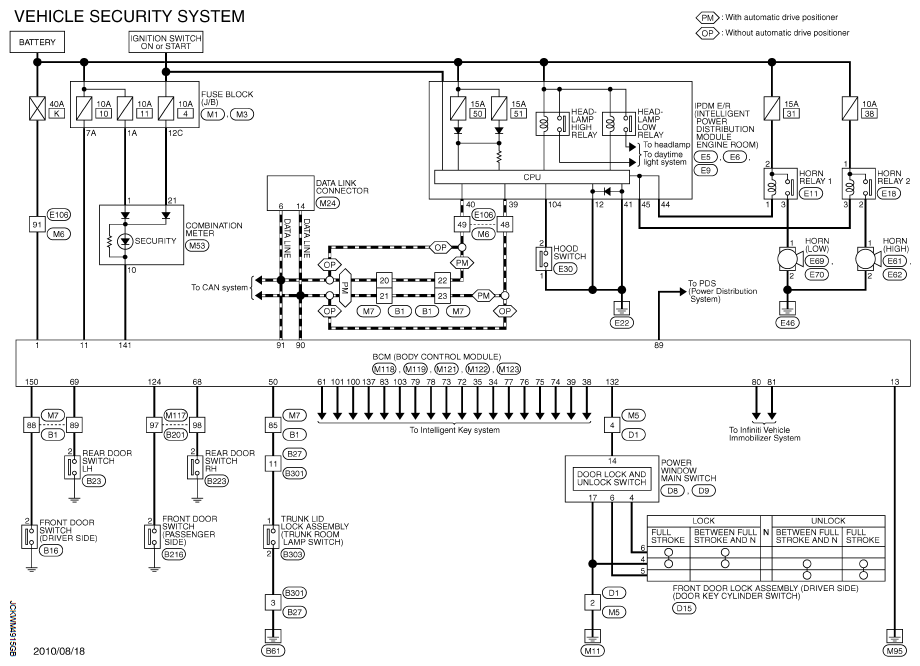

Fig 1: Vehicle Security System - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

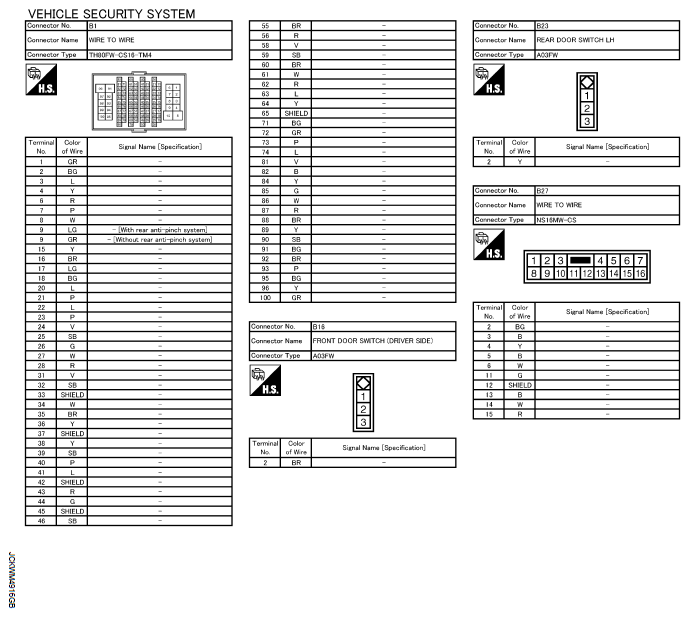

Fig 2: Identifying Vehicle Security System Connectors (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

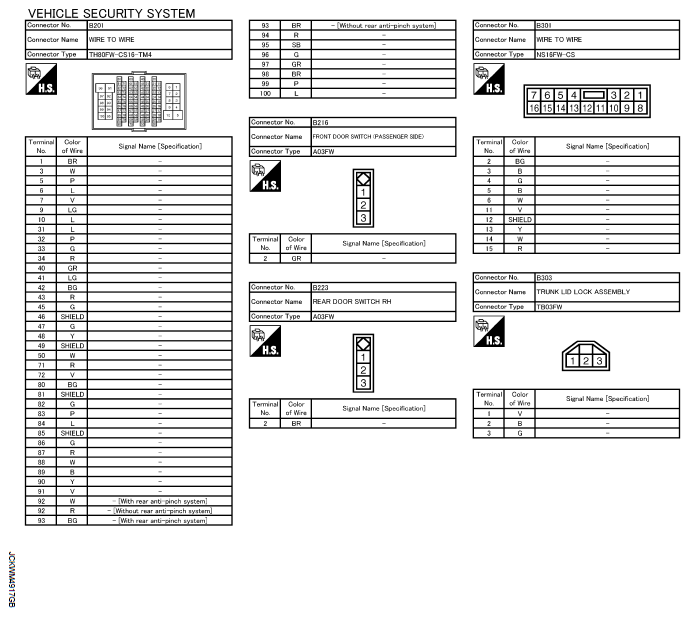

Fig 3: Identifying Vehicle Security System Connectors (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

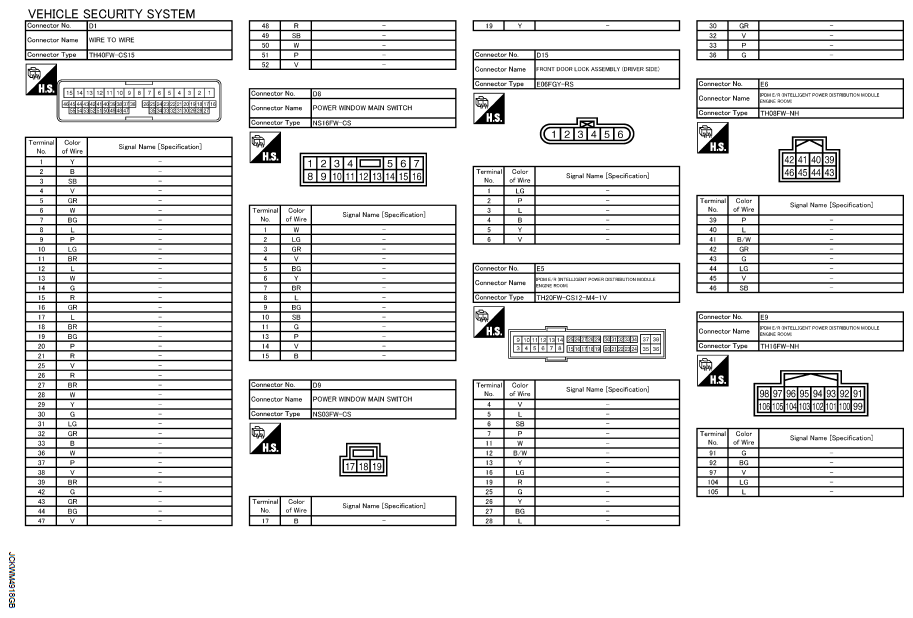

Fig 4: Identifying Vehicle Security System Connectors (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

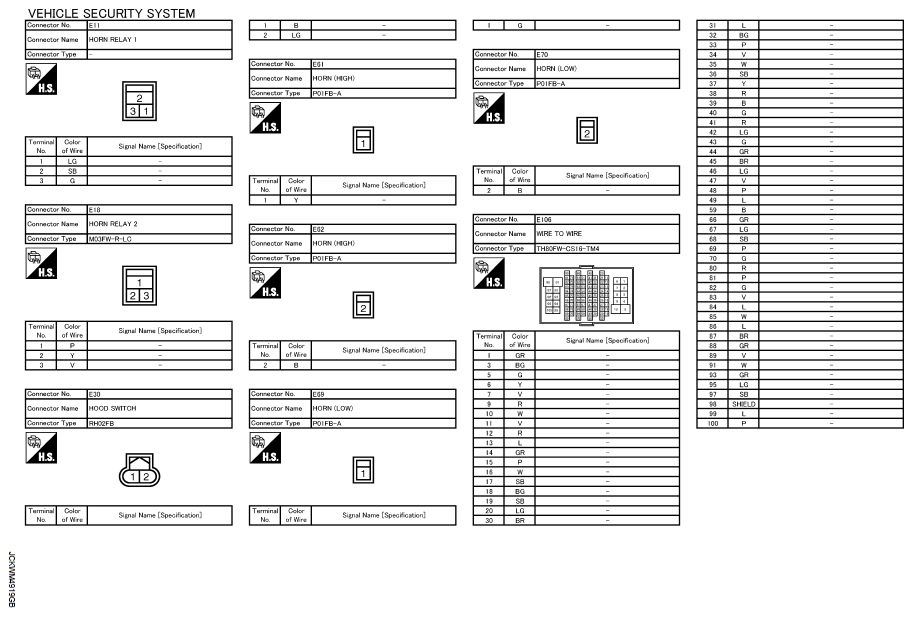

Fig 5: Identifying Vehicle Security System Connectors (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

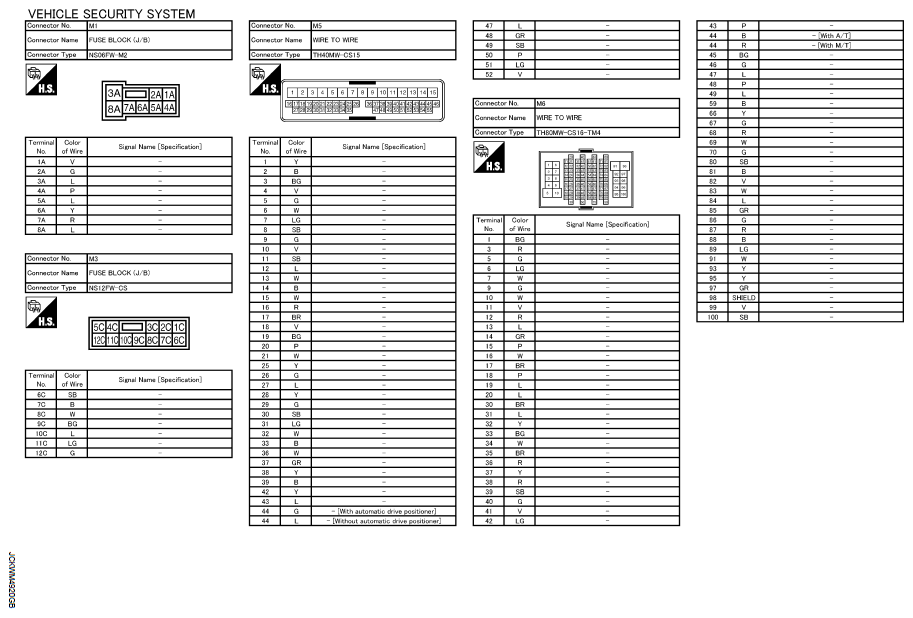

Fig 6: Identifying Vehicle Security System Connectors (5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

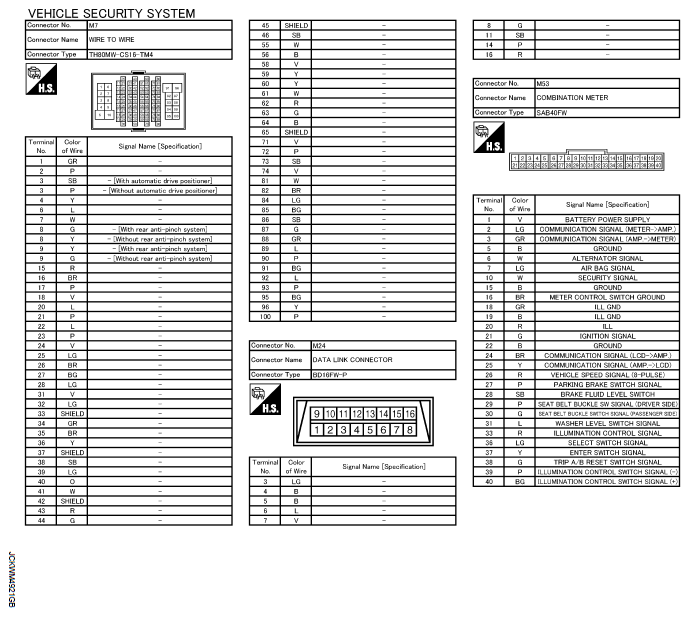

Fig 7: Identifying Vehicle Security System Connectors (6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

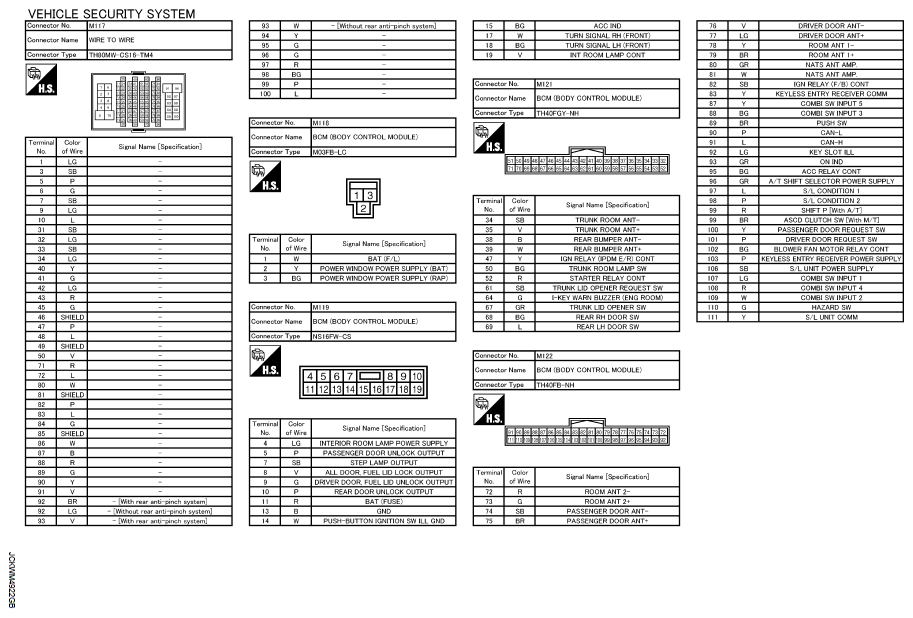

Fig 8: Identifying Vehicle Security System Connectors (7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

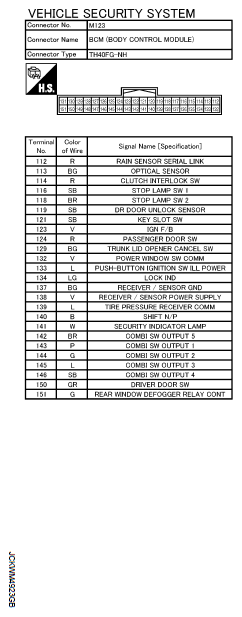

Fig 9: Identifying Vehicle Security System Connectors (8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
