Power Steering Control System -- G37 Convertible
>>
System Description
>>
EPS System
>>
Component Parts Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Parts Location

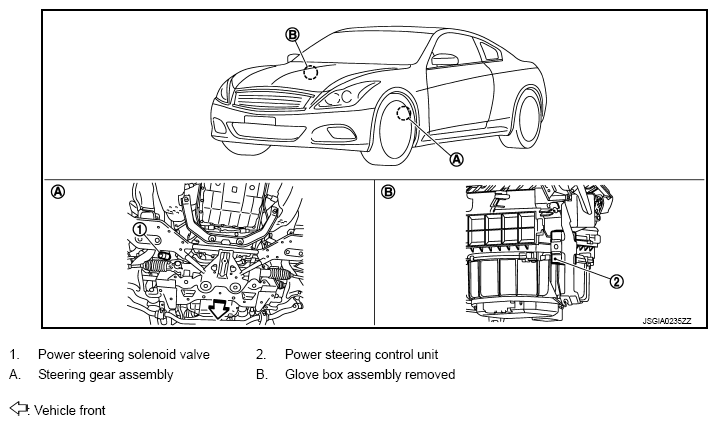

Fig 1: Identifying EPS System Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
