Power Steering Control System -- G37 Convertible
>>
System Description
>>
EPS System
>>
System Diagram
>>
Control Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control Diagram

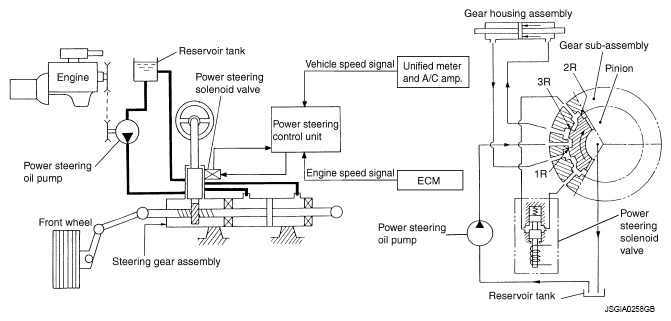

Fig 1: EPS System Control Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
