A/T MODELS : Exploded View

WARNING: This page is about a different variant/trim than selected.

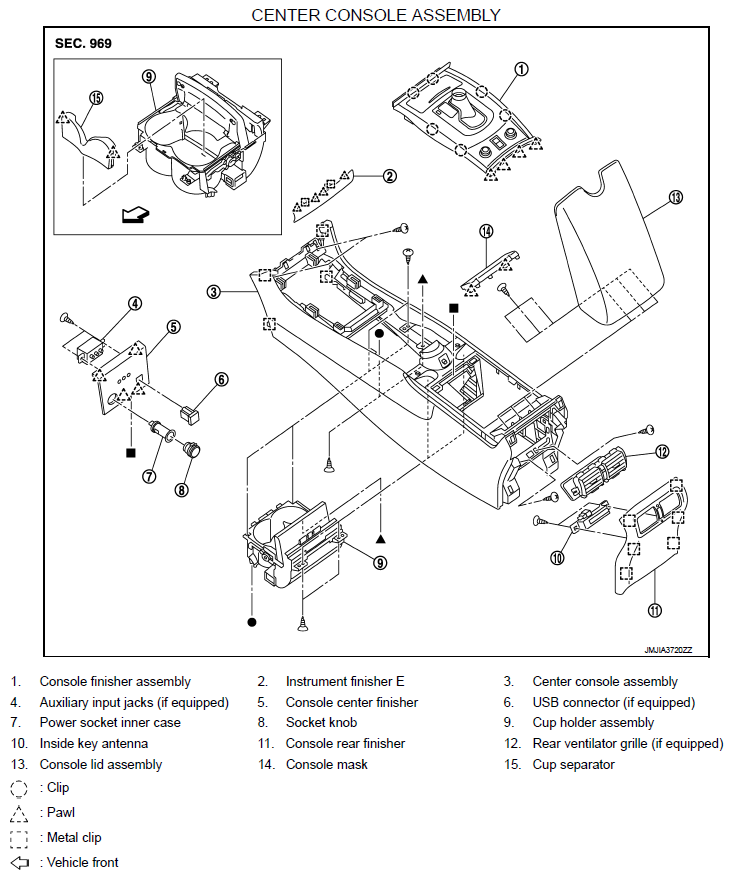

Fig 1: Exploded View Of Center Console Assembly (A/T Models)
G07160735Courtesy of NISSAN MOTOR CO., U.S.A.

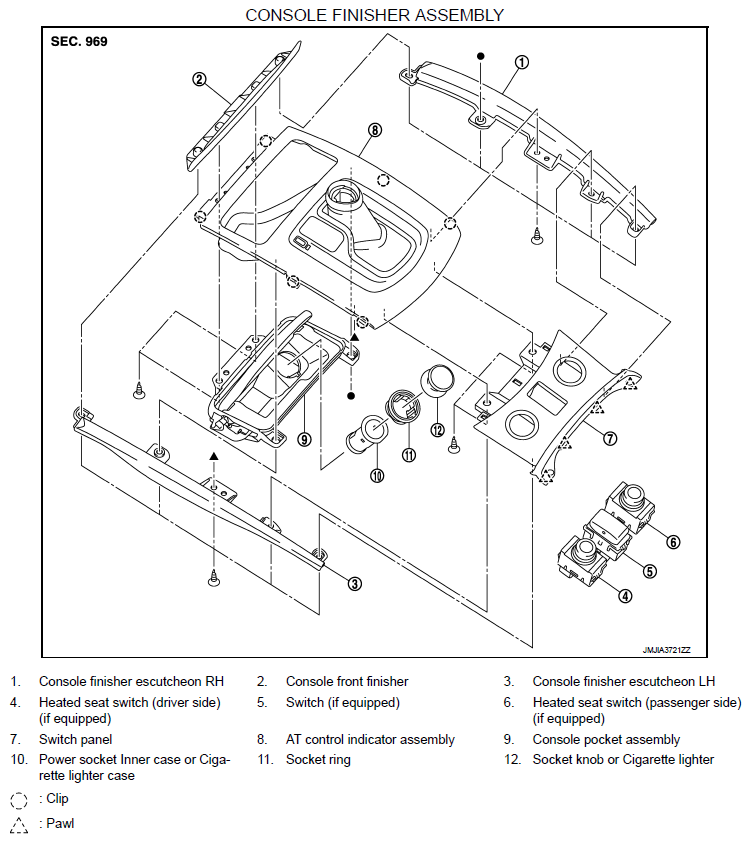

Fig 2: Exploded View Of Console Finisher Assembly
G07160736Courtesy of NISSAN MOTOR CO., U.S.A.
