MULTI AV SYSTEM : System Diagram

WARNING: This page is about a different variant/trim than selected.

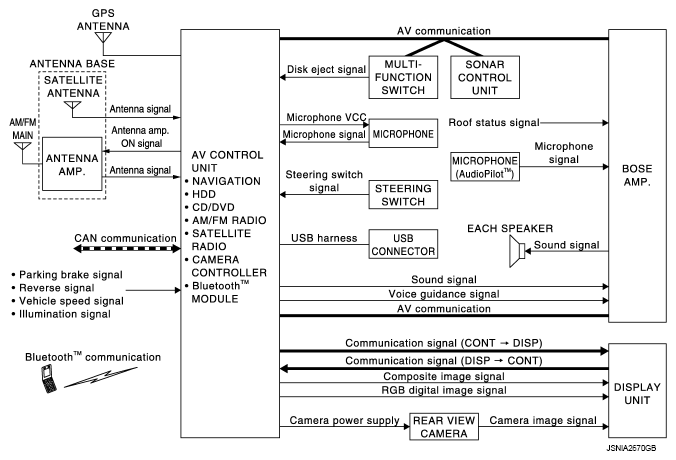

Fig 1: Multi AV System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
An antenna base integrated with radio antenna and satellite radio antenna is adopted.

Fig 2: Radio Antenna And Satellite Radio Antenna Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
