Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove cluster lid C. Refer to "A/T MODELS : EXPLODED VIEW " (A/T models) or "M/T MODELS : EXPLODED VIEW " (M/T models).
  2. Remove preset switch (2) from cluster lid C. Remove preset switch screws (A), (B) and (C), remove preset switch (2) from cluster lid C.

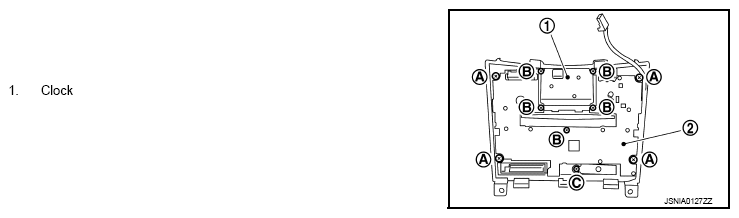

    Fig 1: Locating Preset Switch And Screws
    G07161325Courtesy of NISSAN MOTOR CO., U.S.A.
