Flow Chart Of Trouble Diagnosis

WARNING: This page is about a different variant/trim than selected.

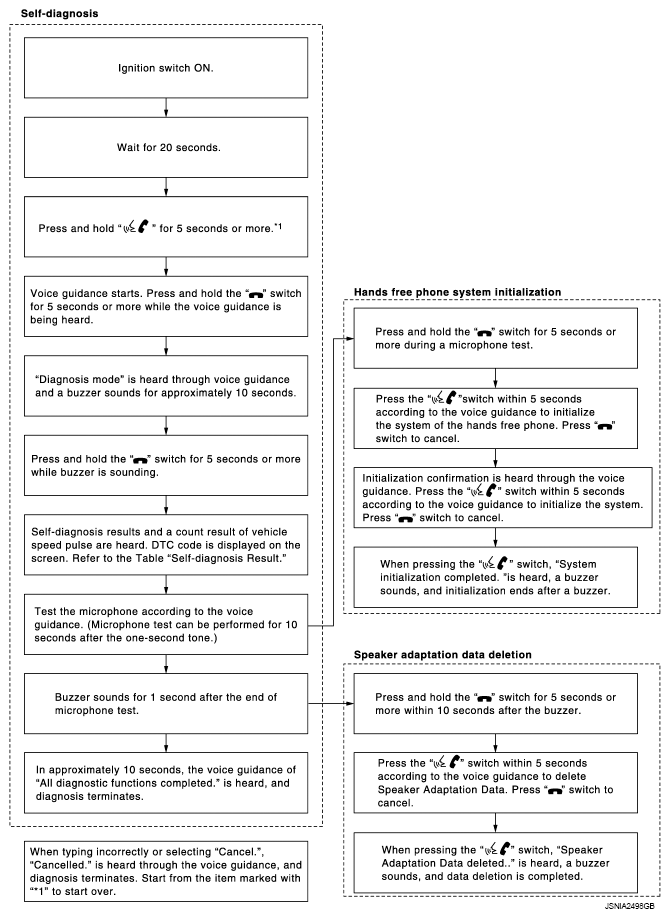

Fig 1: Flow Chart Of Trouble Diagnosis
G07161234Courtesy of NISSAN MOTOR CO., U.S.A.
