Component Parts Location

Fig 1: Identifying Engine Control System Components Location (1 Of 22)

G07168639

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Control System Components Location (2 Of 22)

G07168640

Courtesy of NISSAN MOTOR CO., U.S.A.

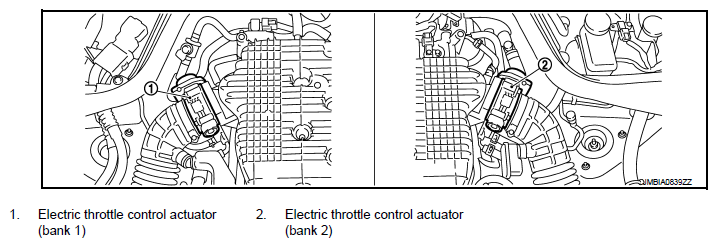

Fig 3: Identifying Engine Control System Components Location (3 Of 22)

G07168641

Courtesy of NISSAN MOTOR CO., U.S.A.

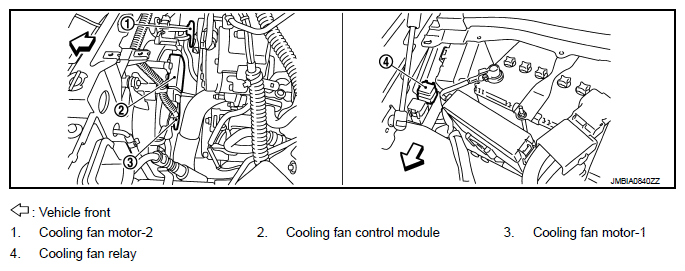

Fig 4: Identifying Engine Control System Components Location (4 Of 22)

G07168642

Courtesy of NISSAN MOTOR CO., U.S.A.

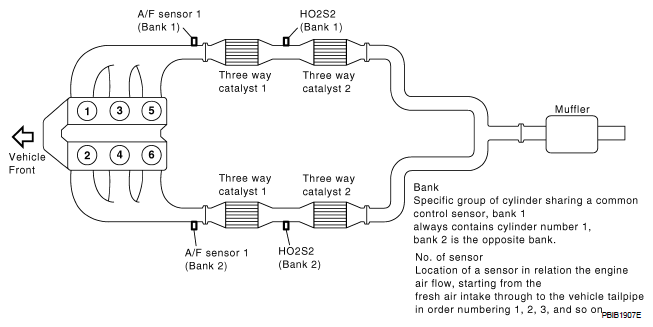

Fig 5: Identifying Engine Control System Components Location (5 Of 22)

G07168643

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Engine Control System Components Location (6 Of 22)

G07168644

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine Control System Components Location (7 Of 22)

G07168645

Courtesy of NISSAN MOTOR CO., U.S.A.

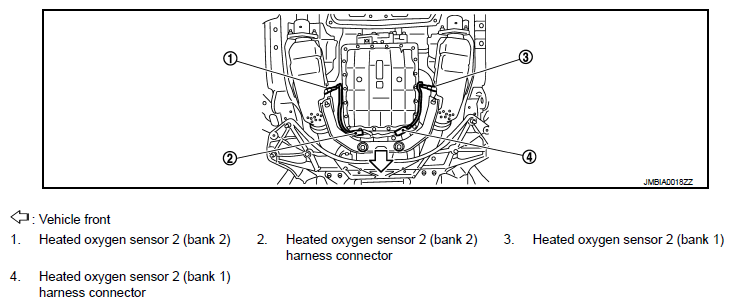

Fig 8: Identifying Engine Control System Components Location (8 Of 22)

G07168646

Courtesy of NISSAN MOTOR CO., U.S.A.

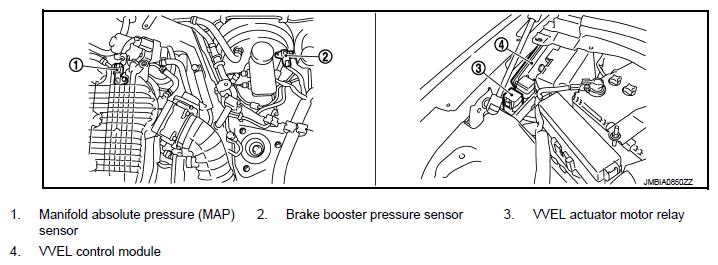

Fig 9: Identifying Engine Control System Components Location (9 Of 22)

G07168647

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Engine Control System Components Location (10 Of 22)

G07168648

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Engine Control System Components Location (11 Of 22)

G07168649

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Engine Control System Components Location (12 Of 22)

G07168650

Courtesy of NISSAN MOTOR CO., U.S.A.

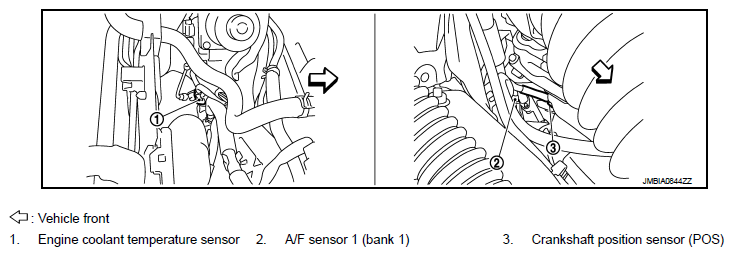

Fig 13: Identifying Engine Control System Components Location (13 Of 22)

G07168651

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Control System Components Location (14 Of 22)

G07168652

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Engine Control System Components Location (15 Of 22)

G07168653

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Engine Control System Components Location (16 Of 22)

G07168654

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Engine Control System Components Location (17 Of 22)

G07168655

Courtesy of NISSAN MOTOR CO., U.S.A.

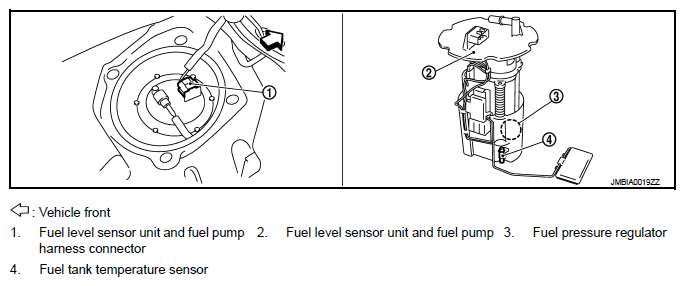

Fig 18: Identifying Engine Control System Components Location (18 Of 22)

G07168656

Courtesy of NISSAN MOTOR CO., U.S.A.

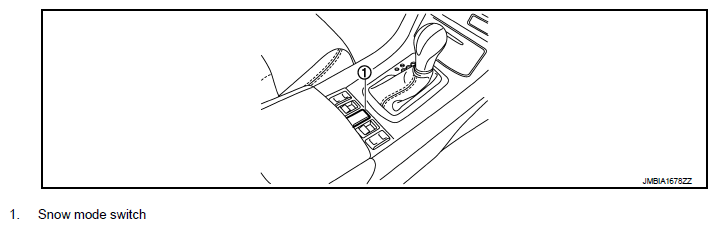

Fig 19: Identifying Engine Control System Components Location (19 Of 22)

G07168657

Courtesy of NISSAN MOTOR CO., U.S.A.

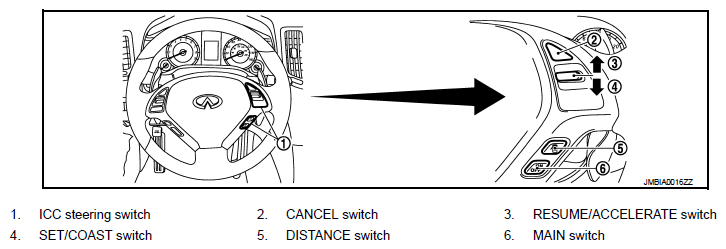

Fig 20: Identifying Engine Control System Components Location (20 Of 22)

G07168658

Courtesy of NISSAN MOTOR CO., U.S.A.

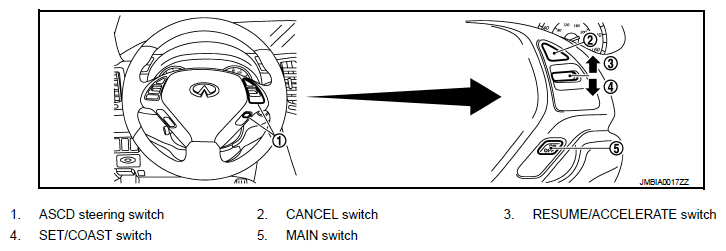

Fig 21: Identifying Engine Control System Components Location (21 Of 22)

G07168659

Courtesy of NISSAN MOTOR CO., U.S.A.

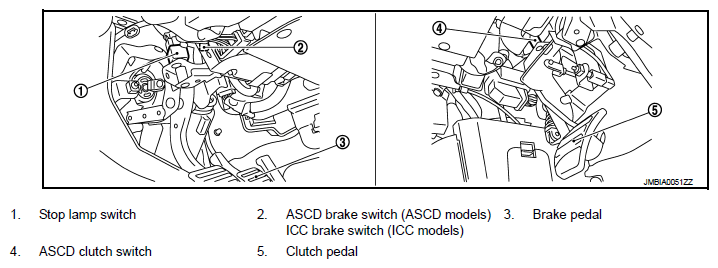

Fig 22: Identifying Engine Control System Components Location (22 Of 22)

G07168660

Courtesy of NISSAN MOTOR CO., U.S.A.
