Terminal Layout

WARNING: This page is about a different variant/trim than selected.

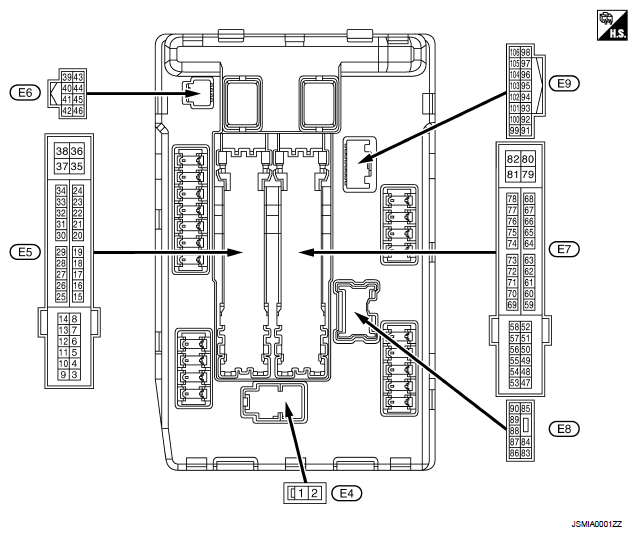

Fig 1: IPDM E/R Terminal Connector End Views
G07158748Courtesy of NISSAN MOTOR CO., U.S.A.
