Component Parts Location
WARNING:
This page is about a different variant/trim than selected.

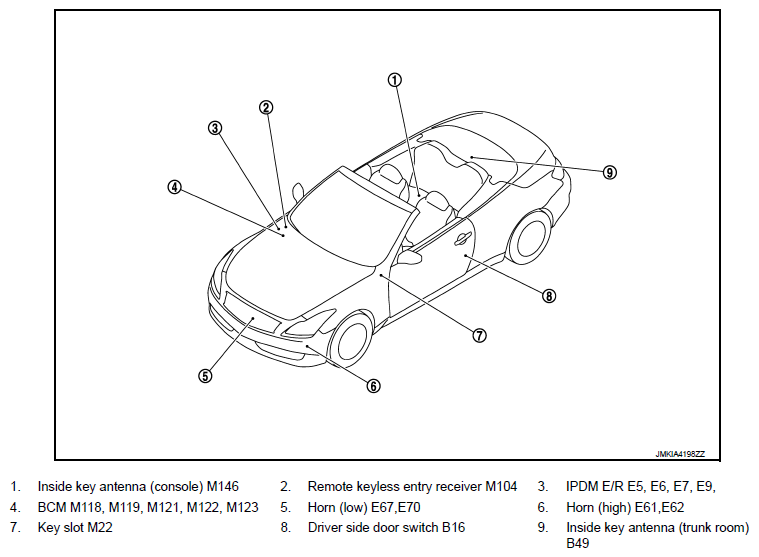

Fig 1: Identifying Vehicle Security System Component Parts Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

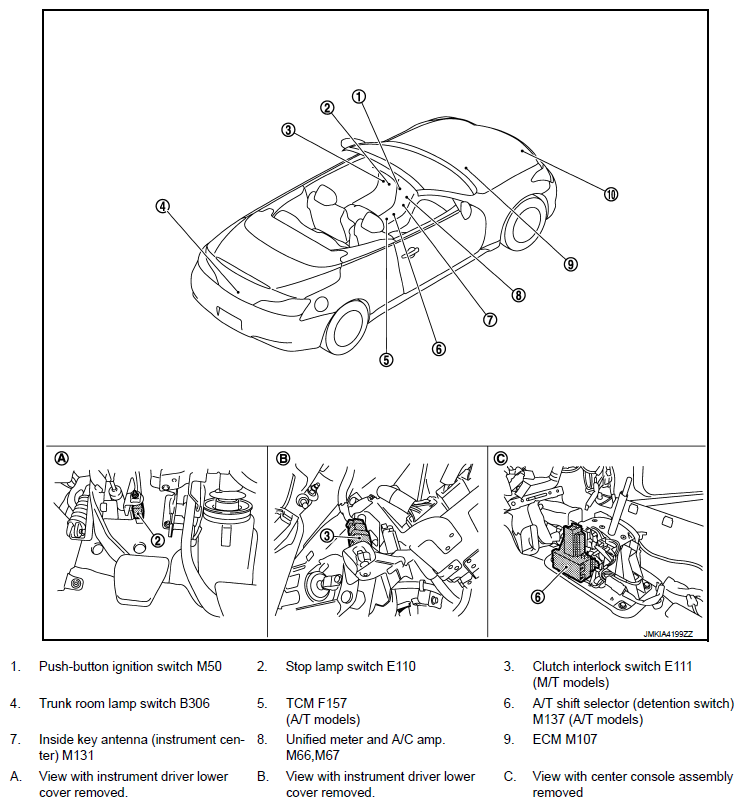

Fig 2: Identifying Vehicle Security System Component Parts Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
