A/T MODELS : Exploded View

WARNING: This page is about a different variant/trim than selected.

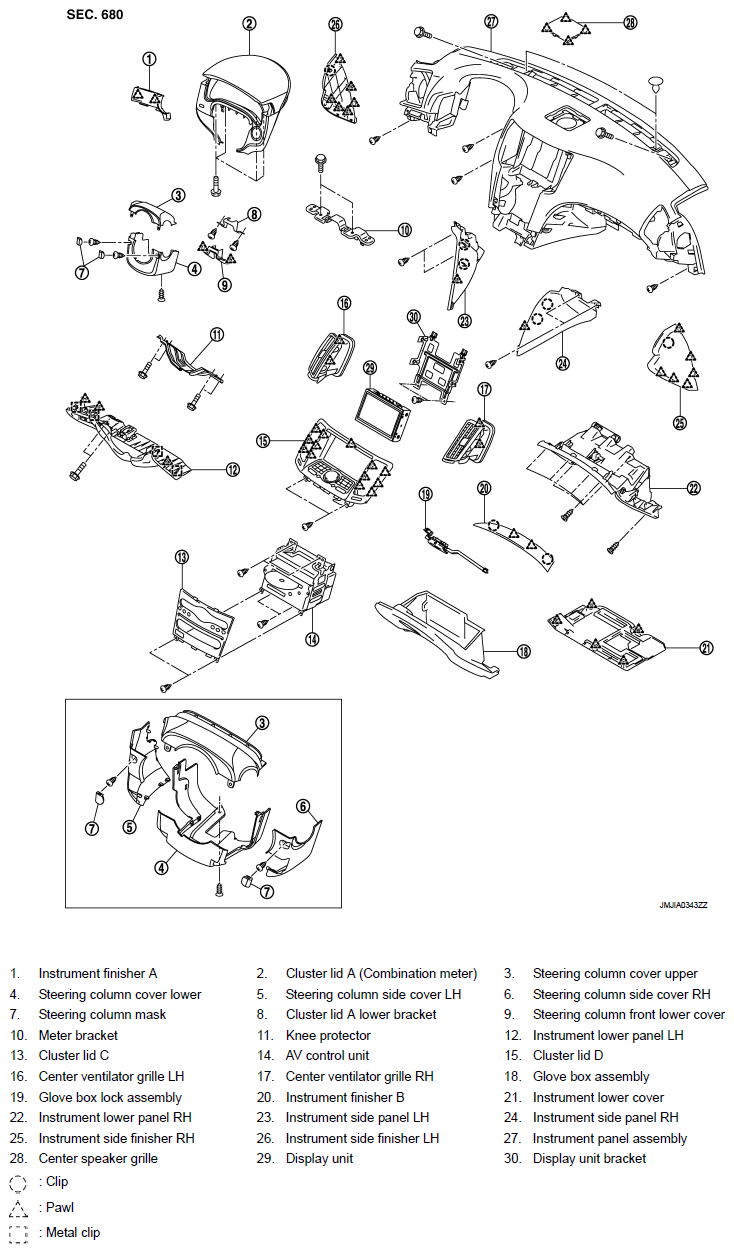

Fig 1: Exploded View Of Instrument Panel Assembly (A/T Models)
G07160670Courtesy of NISSAN MOTOR CO., U.S.A.
