Component Parts Location

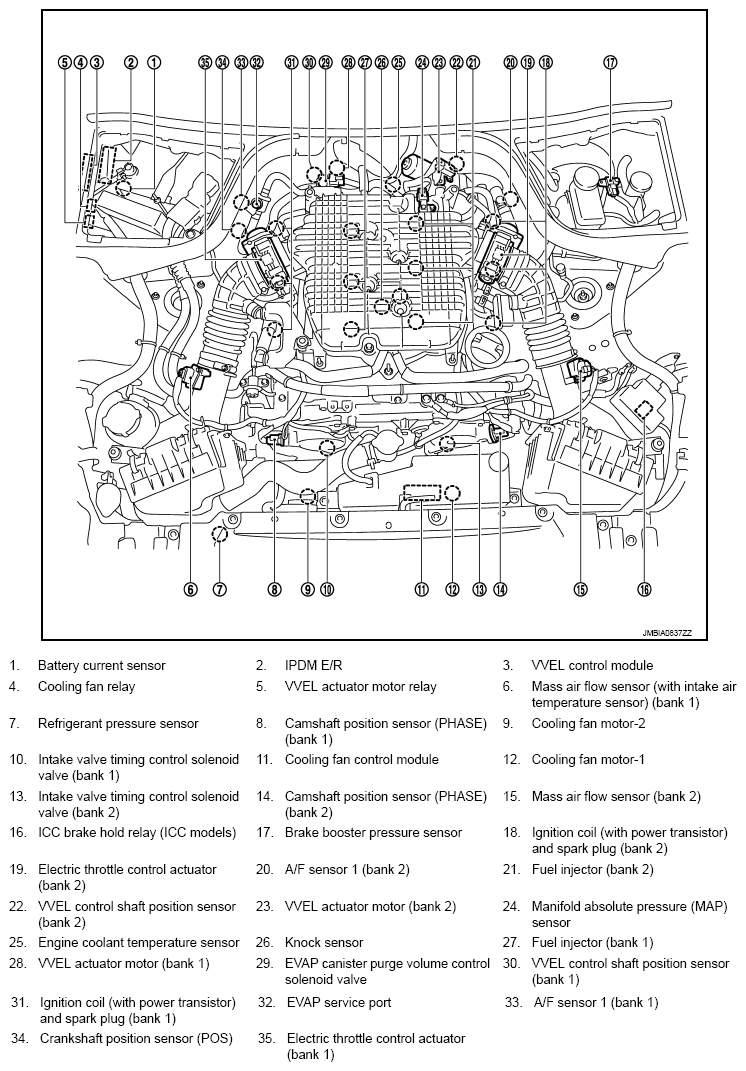

Fig 1: Identifying Automatic Speed Control Device Component Parts Location (1 Of 21)

G07159545

Courtesy of NISSAN MOTOR CO., U.S.A.

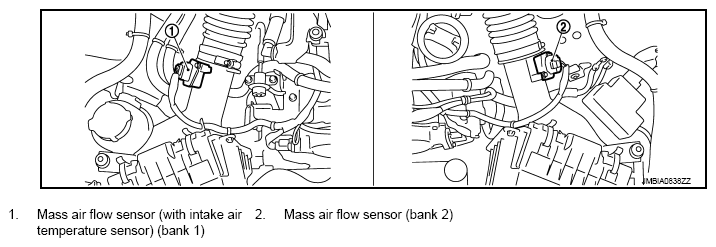

Fig 2: Identifying Automatic Speed Control Device Component Parts Location (2 Of 21)

G07159546

Courtesy of NISSAN MOTOR CO., U.S.A.

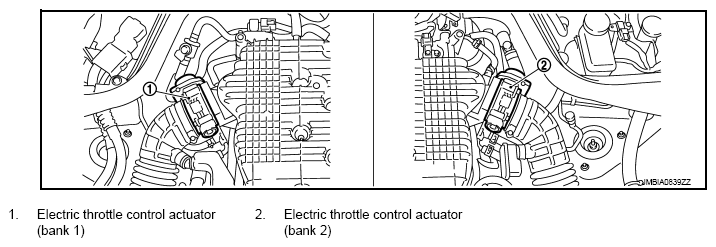

Fig 3: Identifying Automatic Speed Control Device Component Parts Location (3 Of 21)

G07159547

Courtesy of NISSAN MOTOR CO., U.S.A.

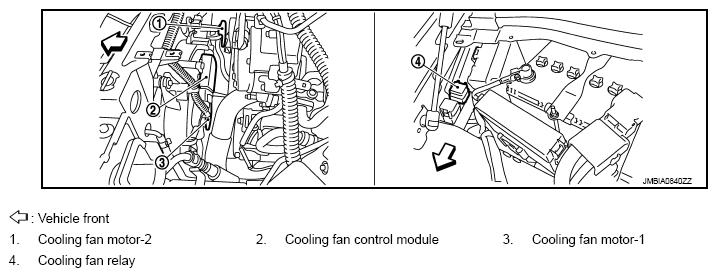

Fig 4: Identifying Automatic Speed Control Device Component Parts Location (4 Of 21)

G07159548

Courtesy of NISSAN MOTOR CO., U.S.A.

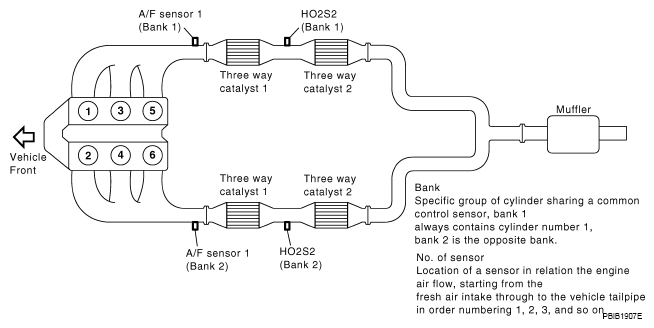

Fig 5: Identifying Automatic Speed Control Device Component Parts Location (5 Of 21)

G07159549

Courtesy of NISSAN MOTOR CO., U.S.A.

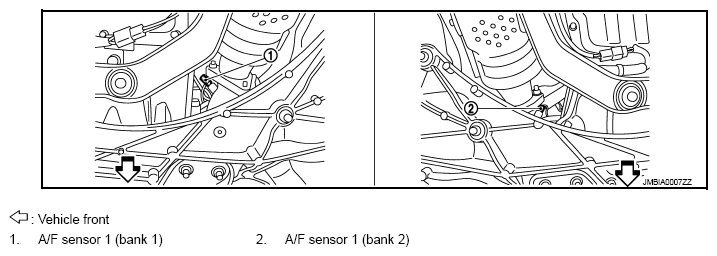

Fig 6: Identifying Automatic Speed Control Device Component Parts Location (6 Of 21)

G07159550

Courtesy of NISSAN MOTOR CO., U.S.A.

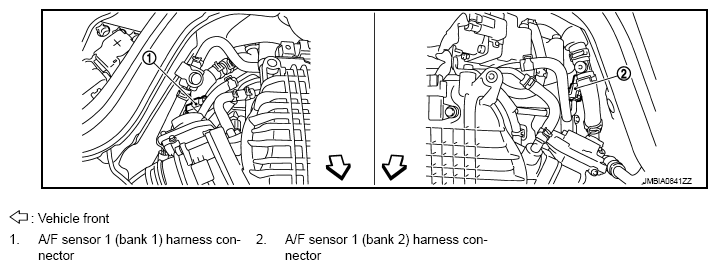

Fig 7: Identifying Automatic Speed Control Device Component Parts Location (7 Of 21)

G07159551

Courtesy of NISSAN MOTOR CO., U.S.A.

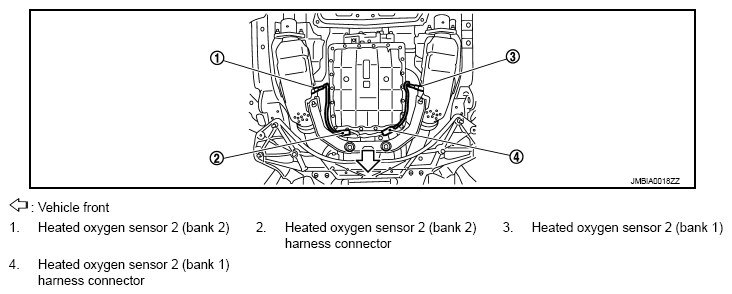

Fig 8: Identifying Automatic Speed Control Device Component Parts Location (8 Of 21)

G07159552

Courtesy of NISSAN MOTOR CO., U.S.A.

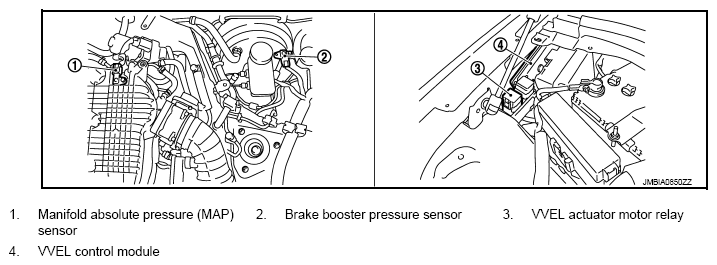

Fig 9: Identifying Automatic Speed Control Device Component Parts Location (9 Of 21)

G07159553

Courtesy of NISSAN MOTOR CO., U.S.A.

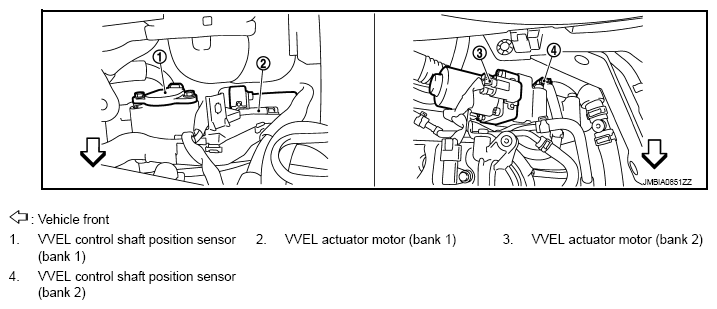

Fig 10: Identifying Automatic Speed Control Device Component Parts Location (10 Of 21)

G07159554

Courtesy of NISSAN MOTOR CO., U.S.A.

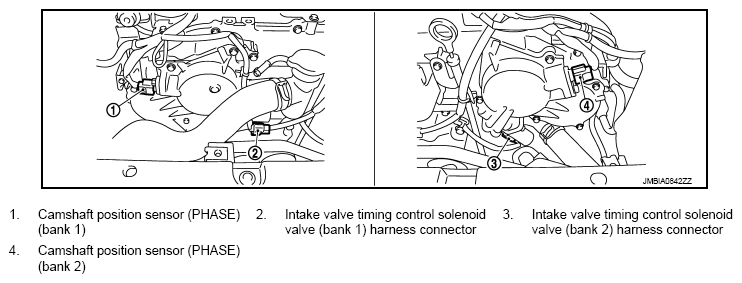

Fig 11: Identifying Automatic Speed Control Device Component Parts Location (11 Of 21)

G07159555

Courtesy of NISSAN MOTOR CO., U.S.A.

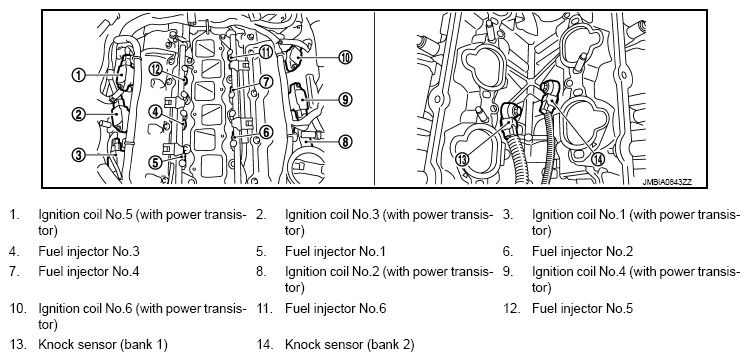

Fig 12: Identifying Automatic Speed Control Device Component Parts Location (12 Of 21)

G07159556

Courtesy of NISSAN MOTOR CO., U.S.A.

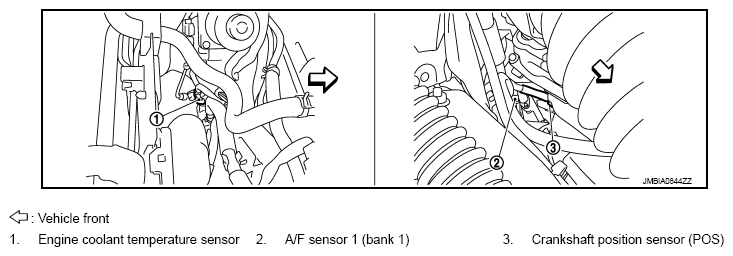

Fig 13: Identifying Automatic Speed Control Device Component Parts Location (13 Of 21)

G07159557

Courtesy of NISSAN MOTOR CO., U.S.A.

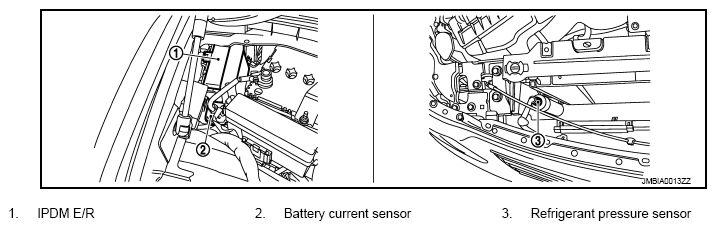

Fig 14: Identifying Automatic Speed Control Device Component Parts Location (14 Of 21)

G07159558

Courtesy of NISSAN MOTOR CO., U.S.A.

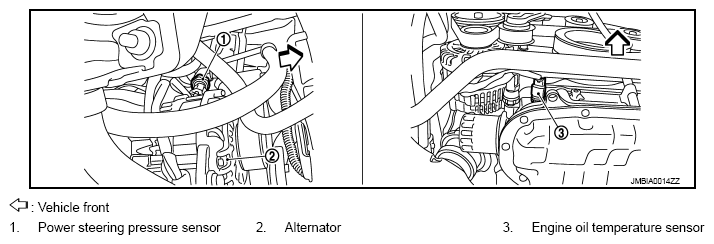

Fig 15: Identifying Automatic Speed Control Device Component Parts Location (15 Of 21)

G07159559

Courtesy of NISSAN MOTOR CO., U.S.A.

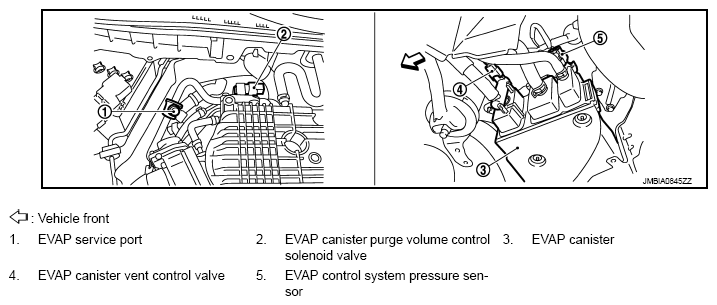

Fig 16: Identifying Automatic Speed Control Device Component Parts Location (16 Of 21)

G07159560

Courtesy of NISSAN MOTOR CO., U.S.A.

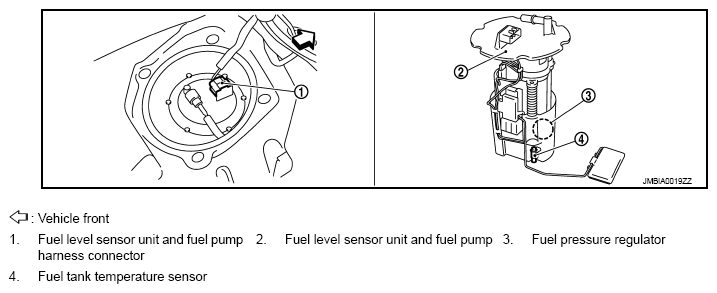

Fig 17: Identifying Automatic Speed Control Device Component Parts Location (17 Of 21)

G07159561

Courtesy of NISSAN MOTOR CO., U.S.A.

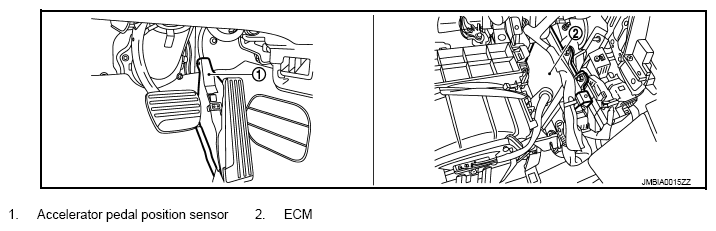

Fig 18: Identifying Automatic Speed Control Device Component Parts Location (18 Of 21)

G07159562

Courtesy of NISSAN MOTOR CO., U.S.A.

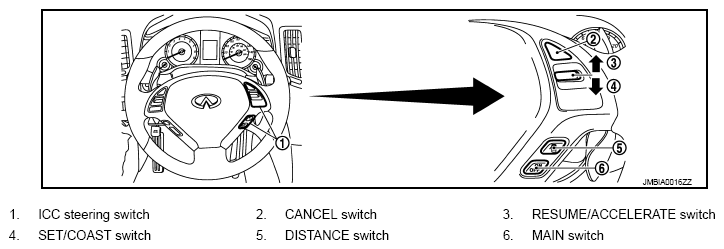

Fig 19: Identifying Automatic Speed Control Device Component Parts Location (19 Of 21)

G07159563

Courtesy of NISSAN MOTOR CO., U.S.A.

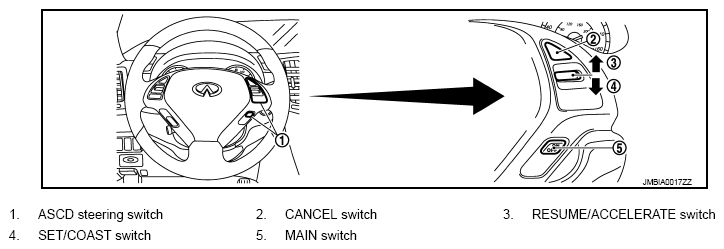

Fig 20: Identifying Automatic Speed Control Device Component Parts Location (20 Of 21)

G07159564

Courtesy of NISSAN MOTOR CO., U.S.A.

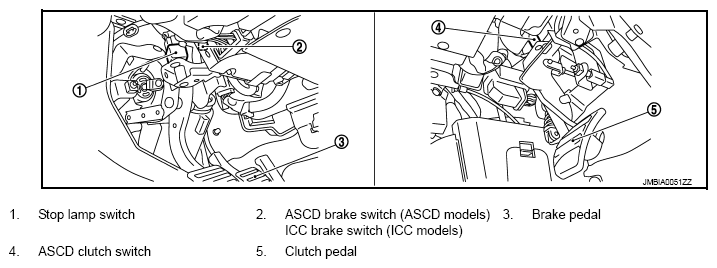

Fig 21: Identifying Automatic Speed Control Device Component Parts Location (21 Of 21)

G07159565

Courtesy of NISSAN MOTOR CO., U.S.A.
