Engine Mechanical
>>
Engine Lubrication System
>>
System Description
>>
Description
>>
Engine Lubrication System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Lubrication System

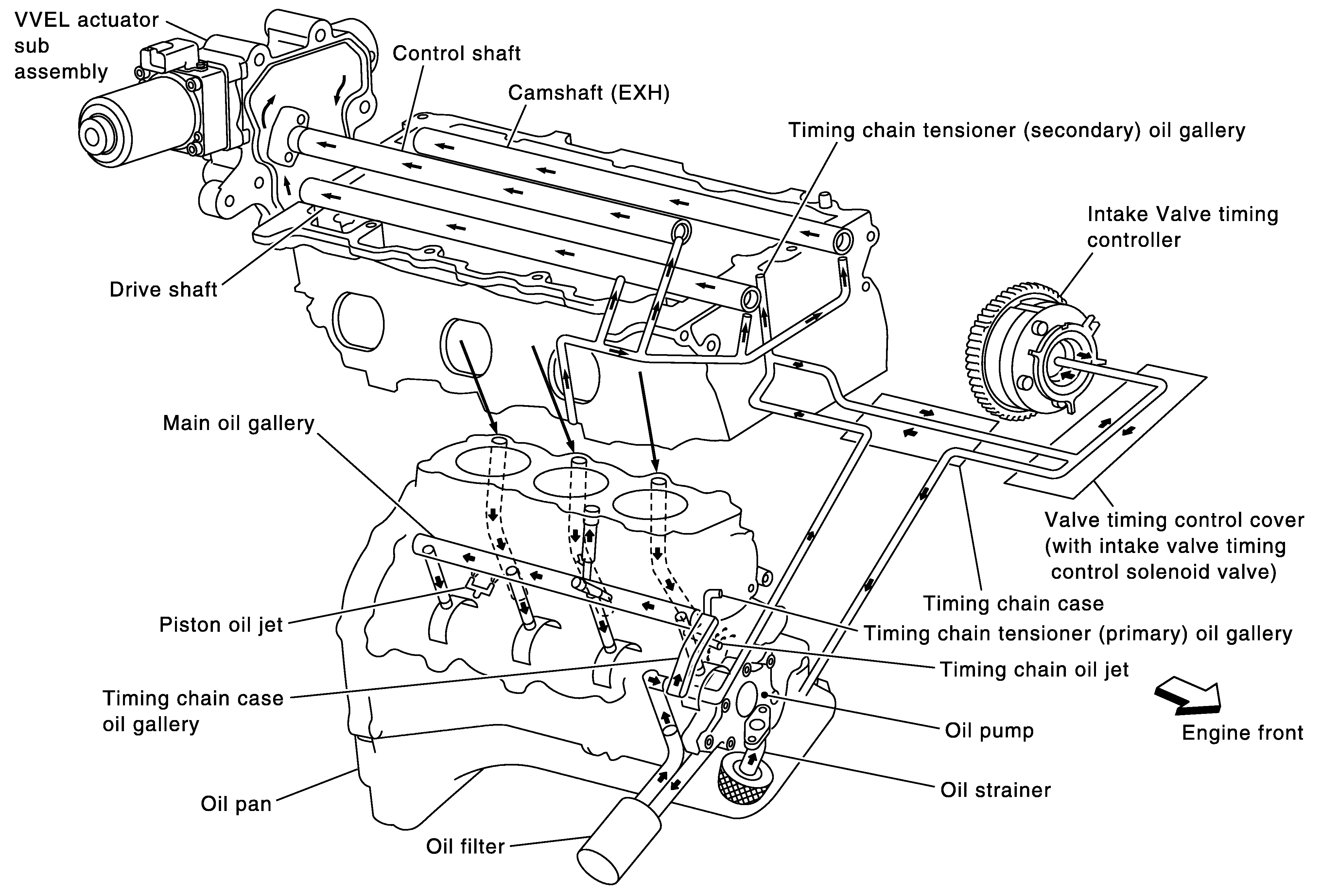

Fig 1: Engine Lubrication System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
