SRT Status Mode
WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
Description
This function allows to read if ECM has completed the self-diagnoses of major emission control systems and components. For SRT, refer to "DIAGNOSIS DESCRIPTION: SYSTEM READINESS TEST (SRT) CODE ".
Operation Procedure
- Turn ignition switch ON and wait 20 seconds.

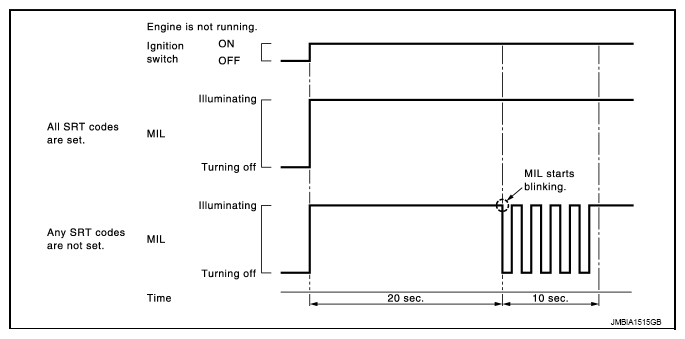

- SRT status is indicated as shown below.
- ECM continues to illuminate MIL if all SRT codes are set.
- ECM blinks MIL for about 10 seconds if all SRT codes are not set.
