Home
>>
Infiniti
>>
2011
>>
M37 Base
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Transmission -- M37/M56
>>
System Description
>>
Structure And Operation
>>
Cross-Sectional View
>>
AWD Models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
AWD Models

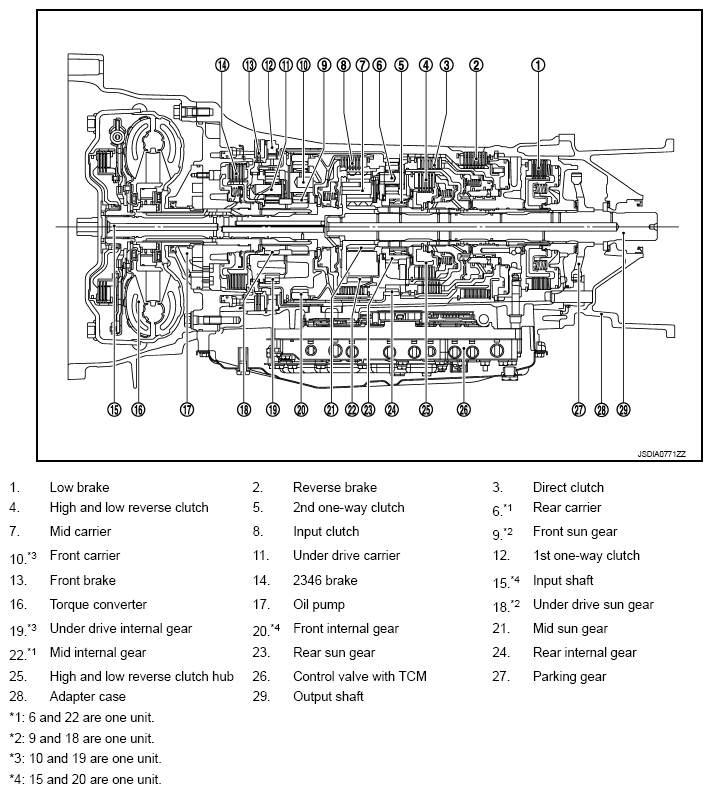

Fig 1: Cross-Sectional View Of Transmission Assembly (AWD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
