Component Parts Location

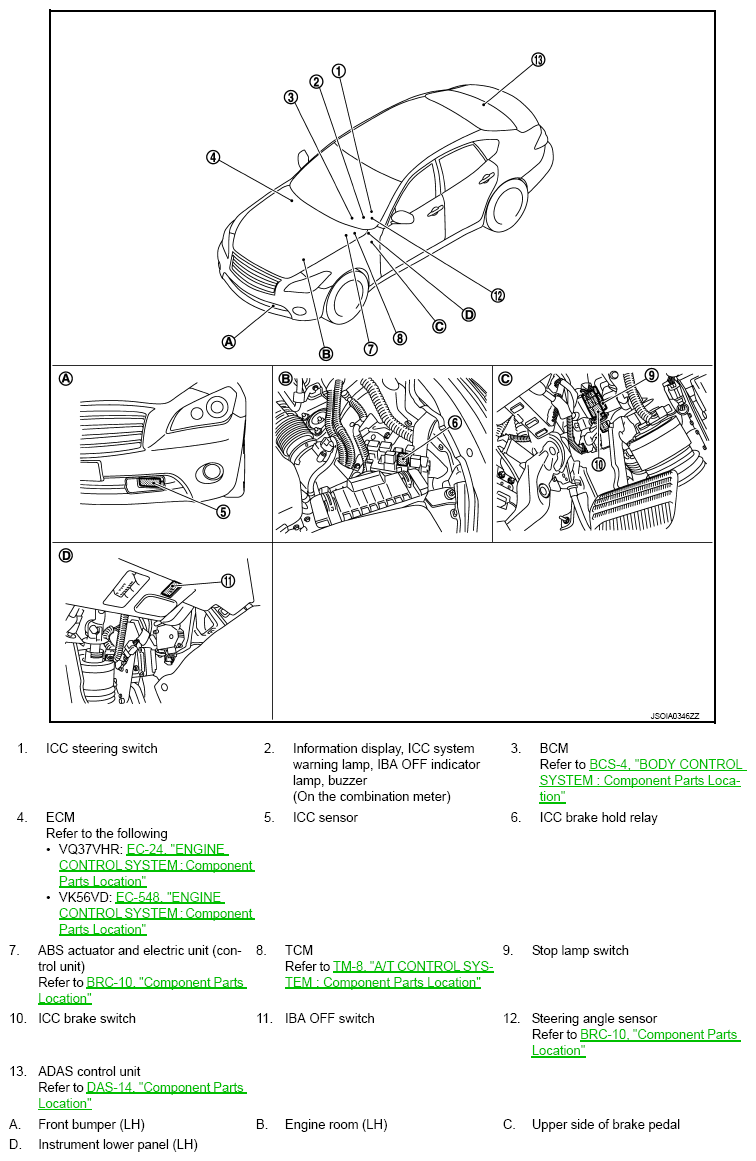

Fig 1: Brake Control System Components Location (Brake Assist With Preview Function)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
