System - Engine Mechanical & Other

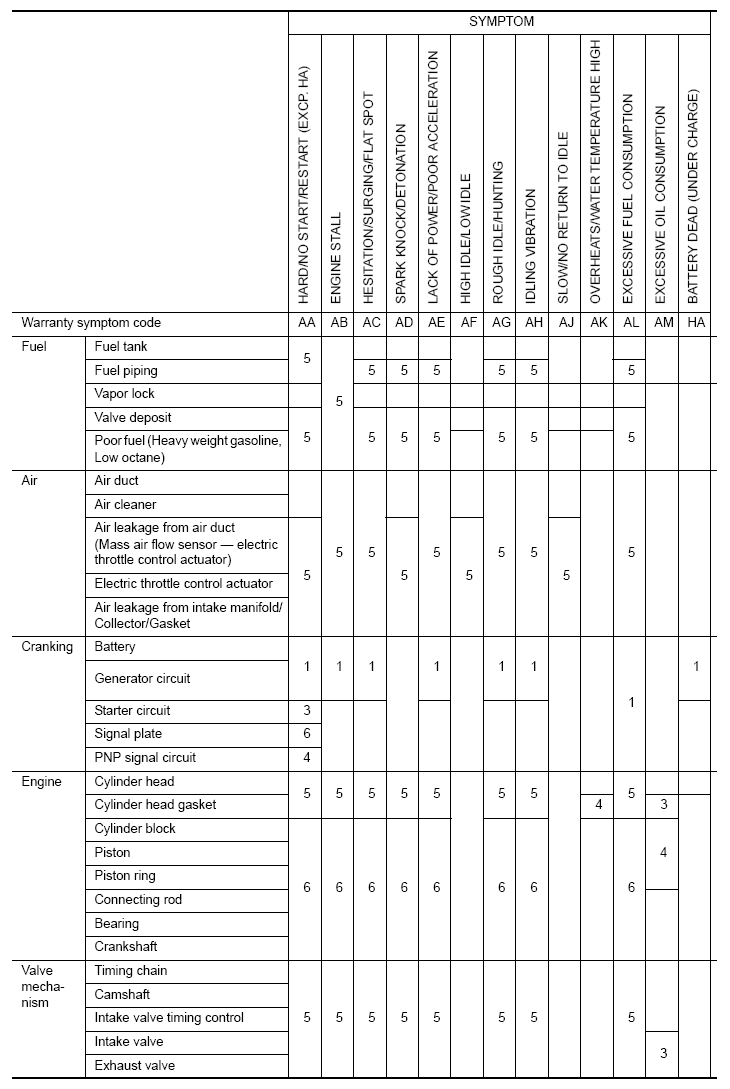

Fig 1: Engine Control System Symptoms Table (3 Of 4)
G07020193Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Engine Control System Symptoms Table (4 Of 4)
G07020194Courtesy of NISSAN MOTOR CO., U.S.A.
