Component Inspection
- CHECK MAP SENSOR-I
- Turn ignition switch OFF.
- Start engine and warm it up to normal operating temperature.
- Turn ignition switch OFF, wait at least 5 seconds and then turn ON.
- Check the voltage between ECM harness connector terminals as follows.VOLTAGE REFERENCE
ECM + - Connector Terminal Connector Terminal F101 38 F102 96 NOTE:- To avoid the influence of intake manifold vacuum, check the voltage 1 or more minutes past after engine is stopped.
- Because the sensor is absolute pressure sensor, output value may differ depending on atmospheric pressure and altitude.
- Measure the atmospheric pressure.NOTE: As the atmospheric pressure described on the synoptic chart is the value at sea level, compensate the pressure with the following chart.PRESSURE REFERENCE
Altitude (m) Compensated pressure (hPa) 0 0 200 -24 400 -47 600 -70 800 -92 1000 -114 1500 -168 2000 -218 - Check the manifold absolute pressure sensor value corresponding to the atmospheric pressure.VOLTAGE REFERENCE

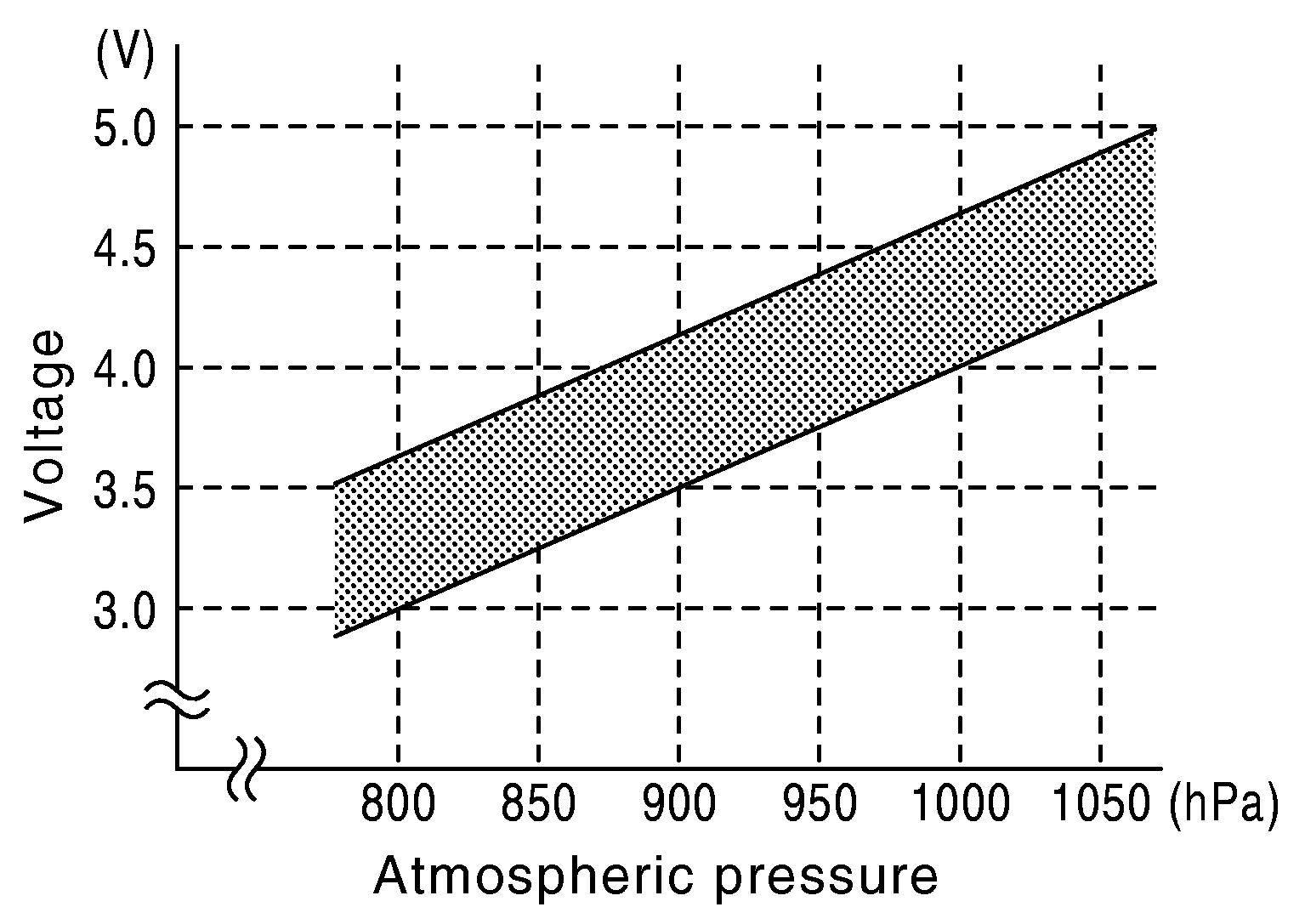

Atmospheric pressure (hPa) Voltage (V) 800 3.1 - 3.7 850 3.3 - 3.9 900 3.5 - 4.1 950 3.8 - 4.3 1000 4.0 - 4.6 1050 4.2 - 4.8 Is the inspection result normal?
YES: GO TO 2.
NO: Replace MAP sensor.
- CHECK MAP SENSOR-II
- Start engine and let it idle.
- Check intake manifold vacuum.
- Check the voltage between ECM harness connector terminals as per the following.VOLTAGE REFERENCE
ECM + - Connector Terminal Connector Terminal F101 38 F102 96 - Confirm the difference of the voltage when engine is stopped and at idling is within the values shown in the following chart.VOLTAGE REFERENCE
Intake manifold vacuum Voltage difference (V) -40kPa (-300mmHg) 1.5 - 2.0 -53.3kPa (-400mmHg) 2.0 - 2.6 -66.7kPa (-500mmHg) 2.6 - 3.2 -80kPa (-600mmHg) 3.2 - 3.8 Is the inspection result normal?
YES: INSPECTION END
NO: Replace MAP sensor.
