Operation Description

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

The IBA system uses an ICC sensor located below the front bumper to measure the distance to a vehicle ahead. When the system judges that the distance gets shorter, the vehicle ahead detection indicator on the combination meter blinks and the warning chime sounds.

To turn the system OFF/ON, push and hold the IBA OFF switch after starting the engine for more than 1 second.

NOTE:

The system ON/OFF condition will be memorized even if the ignition switch turns OFF.
The IBA system operates under the following conditions:

The IBA system will function when the vehicle is driven at speeds of approximately 15 km/h (10 MPH) and above, and when the vehicle's speed is approximately 15 km/h (10 MPH) faster than that of the vehicle ahead.

Switch and Indicators

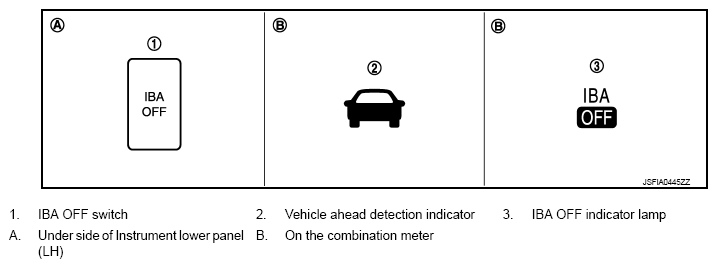

Fig 1: Identifying IBA OFF Switch, Vehicle Ahead Detection Indicator And IBA OFF Indicator Lamp

Courtesy of NISSAN NORTH AMERICA, INC.

TEMPORARY UNAVAILABLE INDICATION

Condition	Description	Indication on the combination meter
When the 4WD shift switch is in the 4H or 4L position	The system is temporary unavailable. (Without the warning chime)	Courtesy of NISSAN NORTH AMERICA, INC.

FAIL-SAFE INDICATION

Condition	Description	Indication on the combination meter
When the sensor window is dirty When the system malfunction	The system will be cancelled automatically with a beep sound.	Courtesy of NISSAN NORTH AMERICA, INC.
When driving into a strong light (i.e. sunlight)	The system is temporary unavailable. (Without the warning chime)	Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: When the IBA turns OFF, the IBA OFF indicator lamp will illuminate.
