Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cluster lid A. Refer to "REMOVAL AND INSTALLATION ".
  2. Disengage the push-button ignition switch fixing pawl and then remove push-button ignition switch.

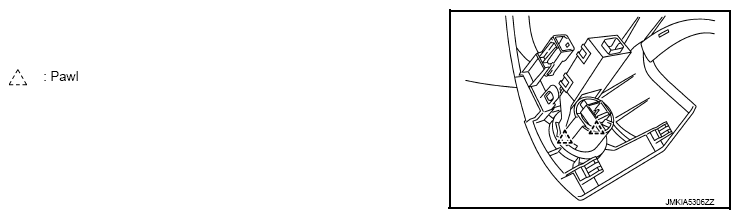

    Fig 1: Identifying Push-Button Ignition Switch Pawls
    G08258189Courtesy of NISSAN NORTH AMERICA, INC.
