Ignition Timing

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Attach timing light to loop wire as shown below.

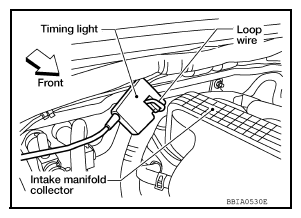

Fig 1: Identifying Timing Light, Loop Wire And Intake Manifold Collector
Courtesy of NISSAN NORTH AMERICA, INC.
Check ignition timing.

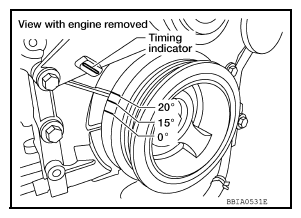

Fig 2: Locating Ignition Timing Marks
Courtesy of NISSAN NORTH AMERICA, INC.
