Exploded View: Disassembly

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

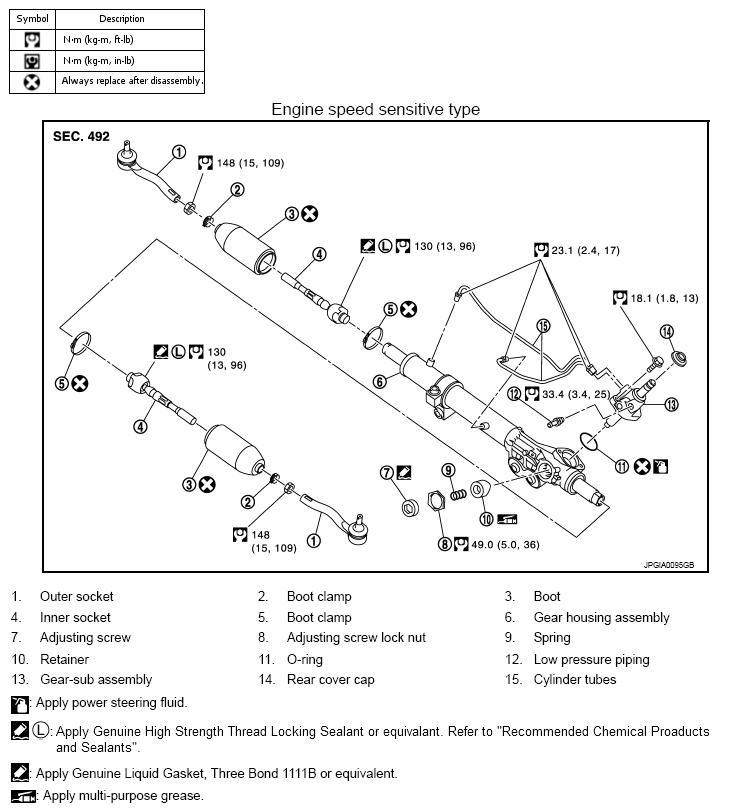

Fig 1: Disassembled View Of Steering Gear & Linkage With Torque Specifications (Engine Speed Sensitive Type)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

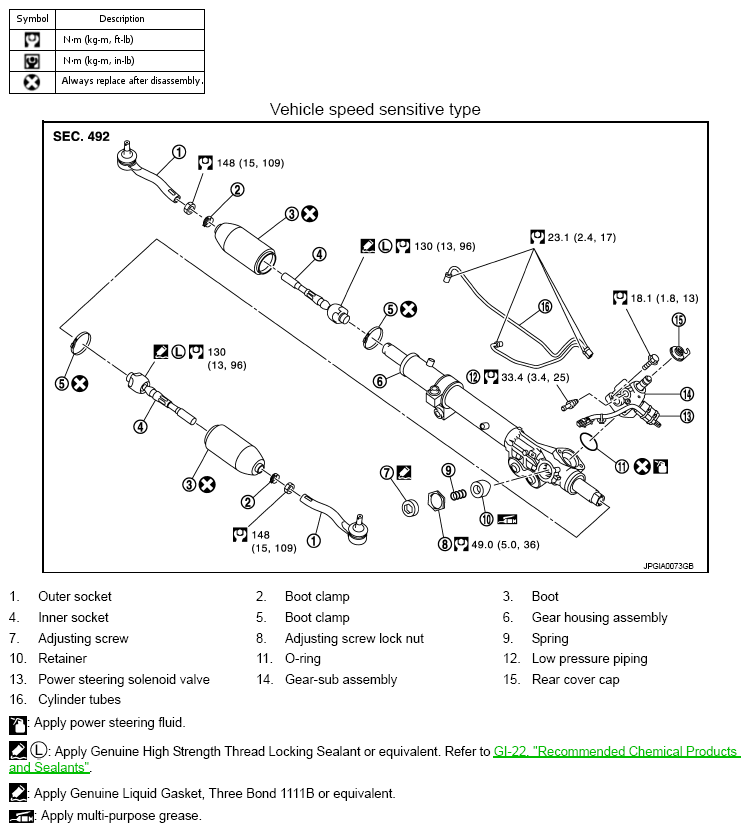

Fig 2: Disassembled View Of Steering Gear & Linkage With Torque Specifications (Vehicle Speed Sensitive Type)

Courtesy of NISSAN MOTOR CO., U.S.A.
