CAN COMMUNICATION SYSTEM: CAN Communication Signal Chart

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

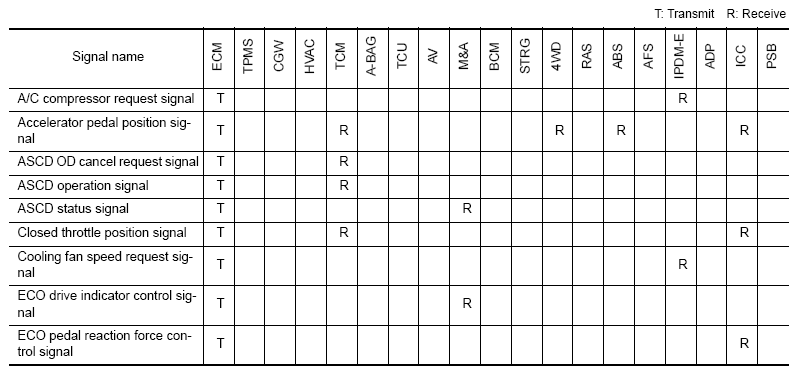

Fig 1: CAN Communication System Signal Chart (1 Of 6)
G08884581Courtesy of NISSAN NORTH AMERICA, INC.

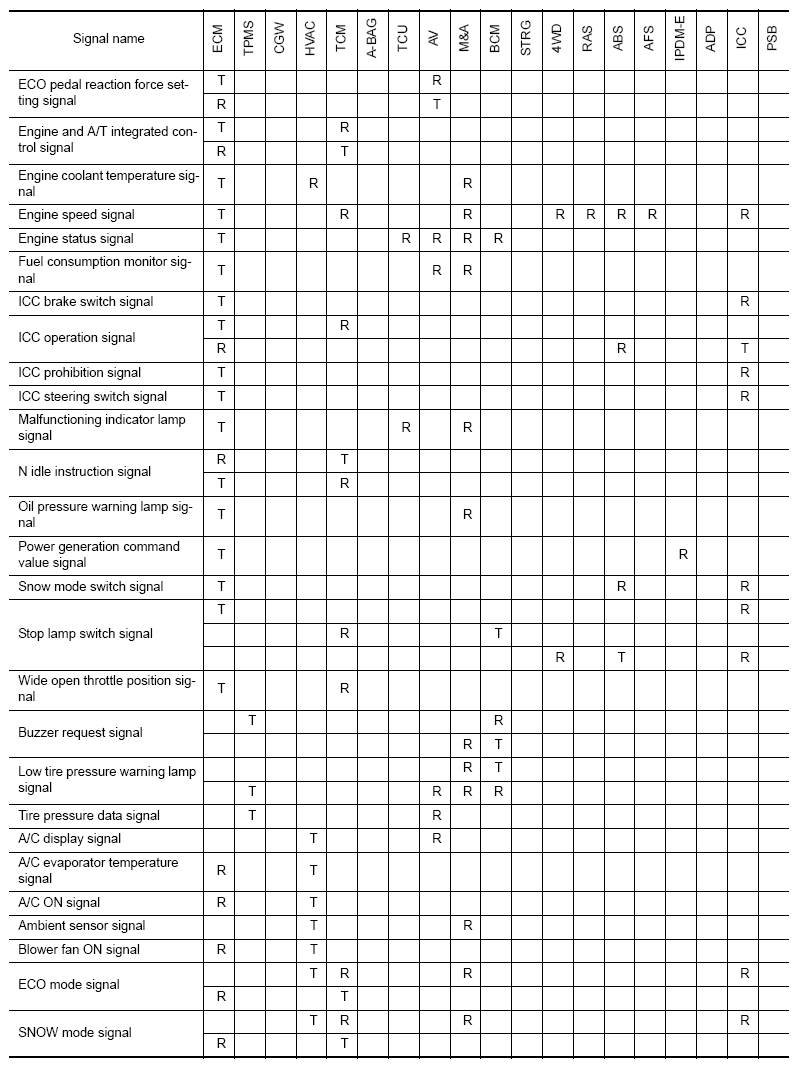

Fig 2: CAN Communication System Signal Chart (2 Of 6)
G08884582Courtesy of NISSAN NORTH AMERICA, INC.

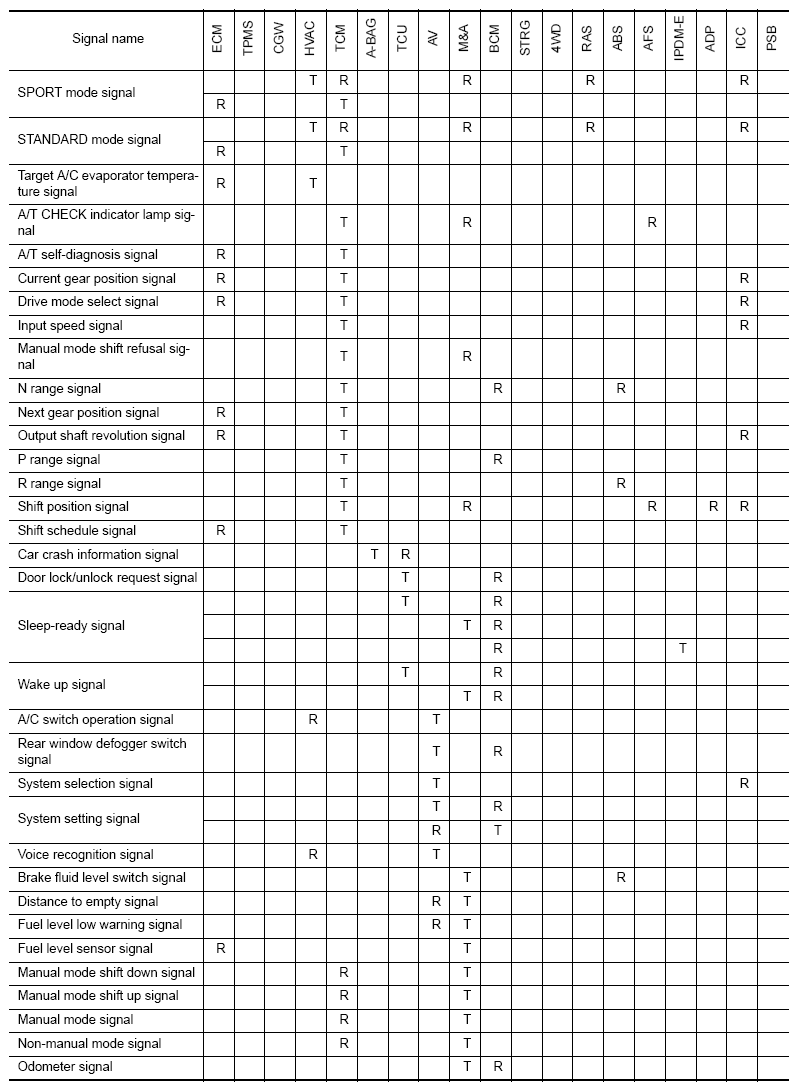

Fig 3: CAN Communication System Signal Chart (3 Of 6)
G08884583Courtesy of NISSAN NORTH AMERICA, INC.

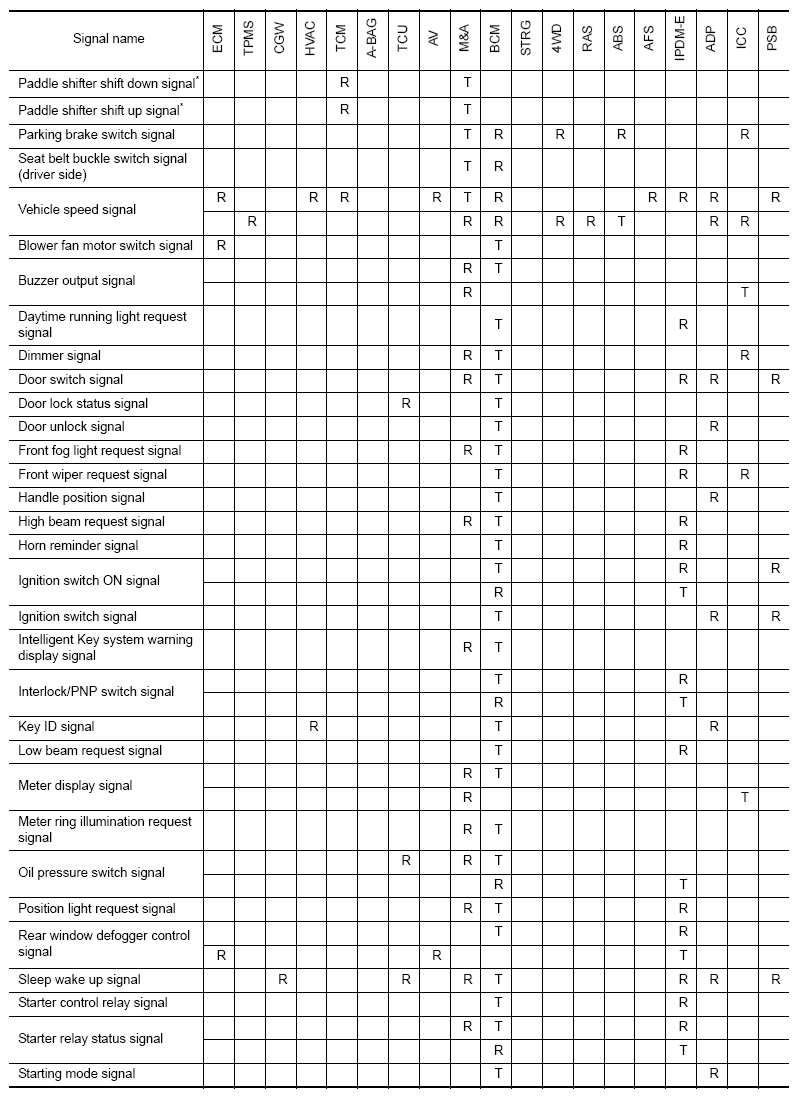

Fig 4: CAN Communication System Signal Chart (4 Of 6)
G08884584Courtesy of NISSAN NORTH AMERICA, INC.

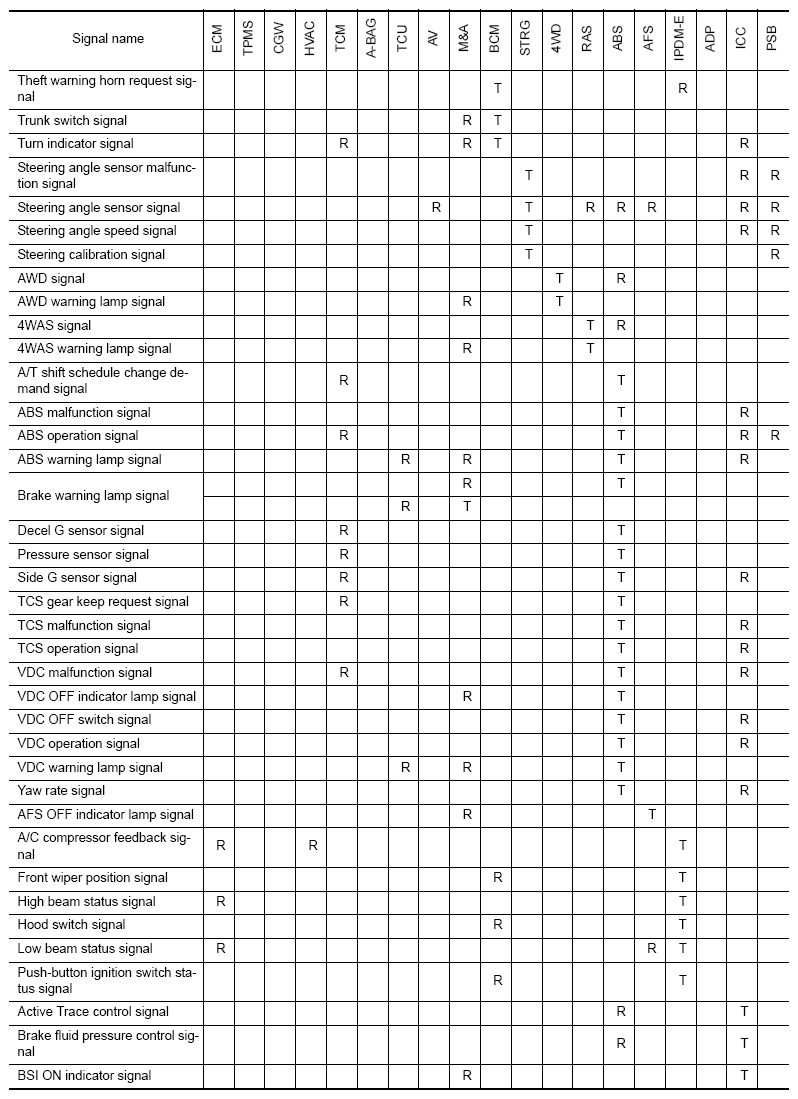

Fig 5: CAN Communication System Signal Chart (5 Of 6)
G08884585Courtesy of NISSAN NORTH AMERICA, INC.

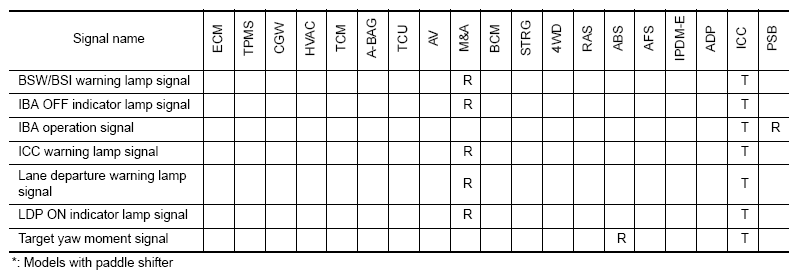

Fig 6: CAN Communication System Signal Chart (6 Of 6)
G08884586Courtesy of NISSAN NORTH AMERICA, INC.
