Work Support

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
WORK SUPPORT ITEMS DESCRIPTION

Work support items Description
CAUSE OF AUTO-CANCEL 1 Displays causes of automatic system cancellation occurred during control of the following systems
  • Vehicle-to-vehicle distance control mode
  • Conventional (fixed speed) cruise control mode
  • Distance Control Assist (DCA)
CAUSE OF AUTO-CANCEL 2 Displays causes of automatic system cancellation occurred during control of the Lane Departure Prevention (LDP) system
NOTE:
  • Causes of the maximum five cancellations (system cancel) are displayed.
  • The displayed cancellation causes display the number of the ignition switch ON/OFF up to 254. It is fixed to 254 if it is over 254. It returns to 0 when the same cancellation cause is detected again.

Display Items for The Cause of Automatic Cancellation 1

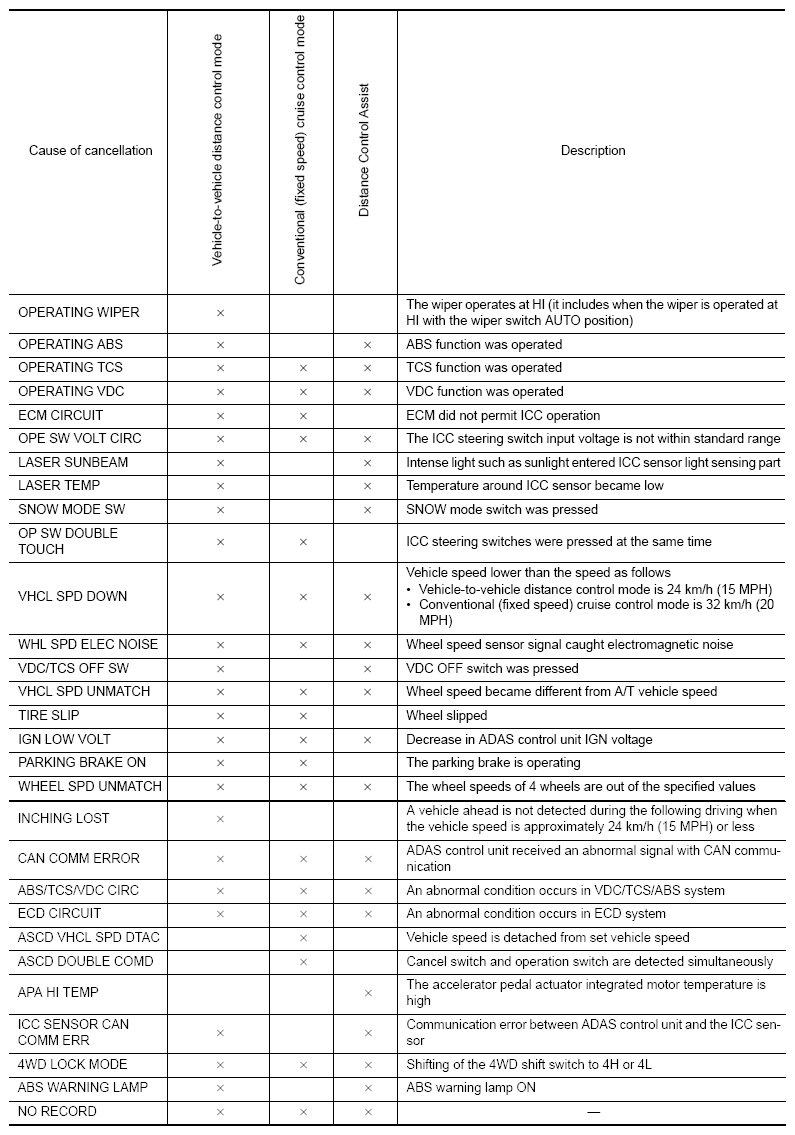

Fig 1: Automatic Cancellation 1 Cause Chart
G07024529Courtesy of NISSAN MOTOR CO., U.S.A.

Display Items for The Cause of Automatic Cancellation 2

CANCELLATION CAUSE DESCRIPTION

Cause of cancellation Description
OPE VDC/TCS/ABS 1 The activation of VDC, TCS, or ABS during LDP system control
Vehicle dynamics Vehicle behavior exceeds specified value
Steering speed Steering speed was more than the specified value in evasive direction
End by yaw angle Yaw angle was the end of LDP control
Departure yaw large Detected more than the specified value of yaw angle in departure direction
ICC WARNING Target approach warning of ICC system, A.B.A. system or FCW system was activated
CURVATURE Road curve was more than the specified value
Steering angle large Steering angle was more than the specified value
Brake is operated Brake pedal was operated
IGN LOW VOLT Decrease in ADAS control unit IGN voltage
Lateral offset Distance of vehicle and lane was detached in lateral direction more than the specified value
Lane marker lost Lane camera unit lost the trace of lane marker
Lane marker unclear Detected lane marker was unclear
Yaw acceleration Detected yawing speed was more than the specified value
Deceleration large Deceleration in a longitudinal direction was more than the specified value
Accel is operated Accelerator pedal was depressed
Departure steering Steering wheel was steered more than the specified value in departure direction
Evasive steering Steering wheel was steered more than the specified value in the evasive direction
R range Selector lever was operated to R range
Parking brake drift Rear wheels lock was detected
Not operating condition Did not meet the operating condition (vehicle speed, turn signal operation, etc)
SNOW MODE SW SNOW mode switch was pressed
VDC OFF SW VDC OFF switch was pressed
OPE VDC/ABS 2 The activation of VDC or ABS during a standby time of LDP system control
4WD LOCK MODE Shifting of the 4WD shift switch to 4H or 4L
NO RECORD -
