ICC SYSTEM ACTION TEST
Perform the ICC system action test. Refer to "DESCRIPTION ".

GO TO 2.
CHECK DCA SYSTEM SETTING
1. Start the engine.
2. After starting the engine wait for 30 seconds or more.
3. Check that the DCA system setting can be enabled/disabled on the navigation screen.
4. Turn OFF the ignition switch and wait for 5 seconds or more.
5. Check that the previous setting is saved when the engine starts again.
  GO TO 3.
CHECK DYNAMIC DRIVER ASSISTANCE SWITCH
1. Start the engine.
2. After starting the engine wait for 30 seconds or more.
3. Enable the setting of the DCA system on the navigation screen.
4. Press the dynamic driver assistance switch (1).
5. Check that the DCA system switch indicator (2) on the information display illuminates.
6. Check that the DCA system switch indicator turns OFF when the system is turned OFF by pressing the dynamic driver assistance switch.
7. Check that the DCA system switch indicator turns OFF when the engine starts again.
  NOTE: The DCA system switch indicator does not illuminate even when the dynamic driver assistance switch is turned ON within approximately 5 seconds after starting the engine.

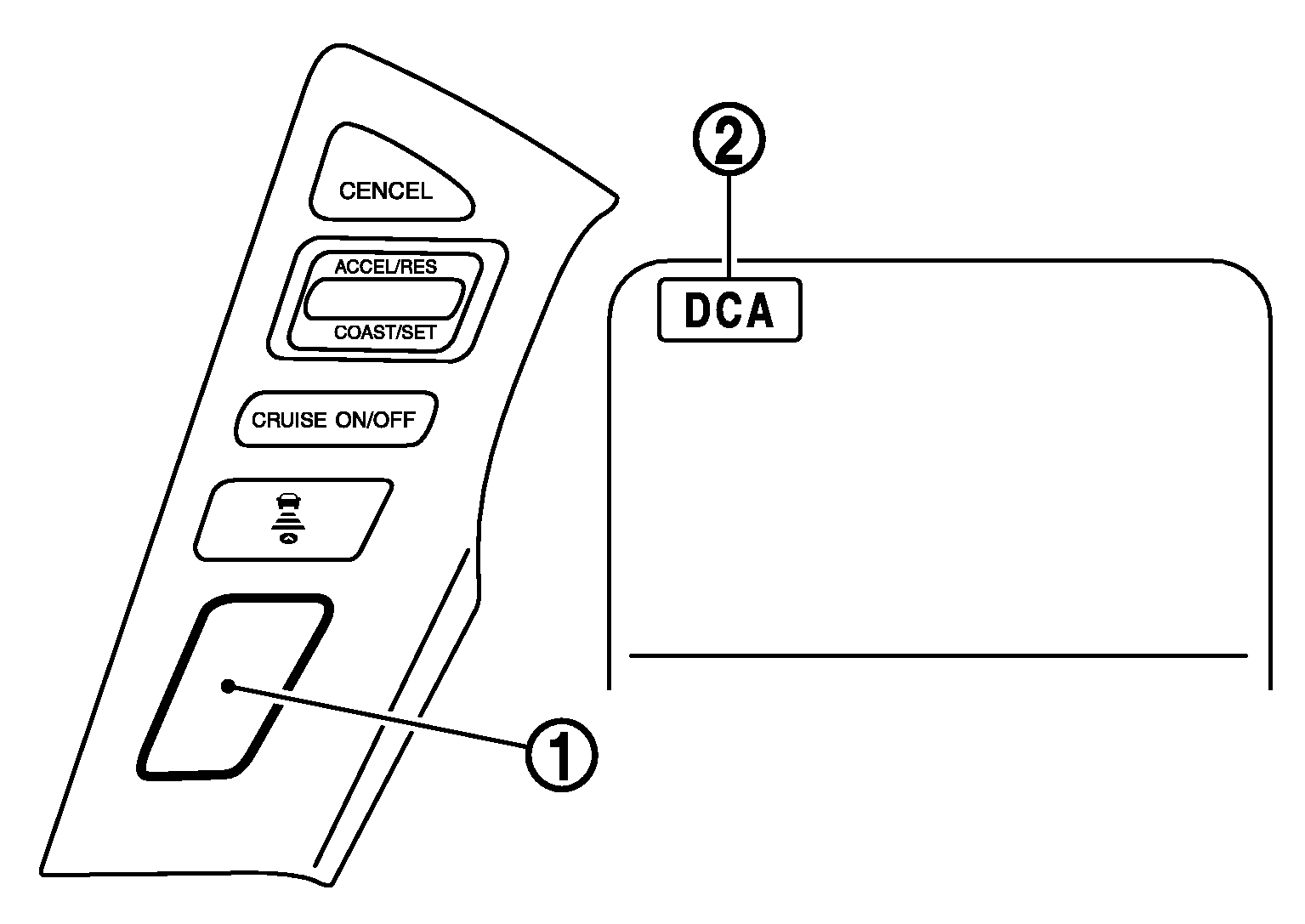

  Fig 1: Identifying Dynamic Driver Assistance Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.

  If the accelerator pedal assembly is not replaced: INSPECTION END

  If the accelerator pedal assembly is replaced: GO TO 4.
CHECK DCA SYSTEM OPERATION
Check that the accelerator pedal actuator operates by the "Active Test" items "ACCELERATOR PEDAL ACTUATOR TEST1" and "ACCELERATOR PEDAL ACTUATOR TEST2" of "ACCELE PEDAL ACT" with CONSULT-III.

INSPECTION END
