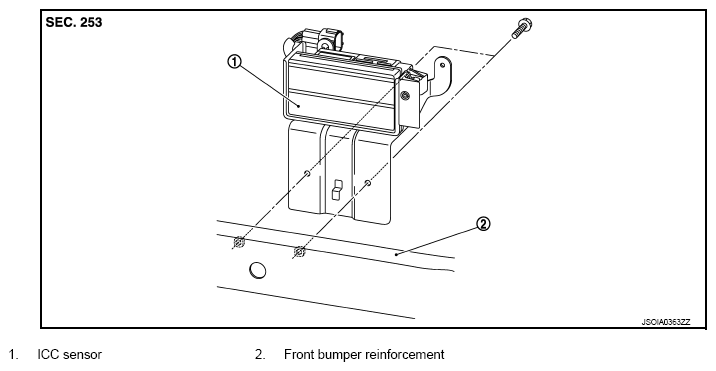

Exploded View
WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor.
Courtesy of NISSAN MOTOR CO., U.S.A.
