INTELLIGENT KEY INTERLOCK FUNCTION : System Diagram

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

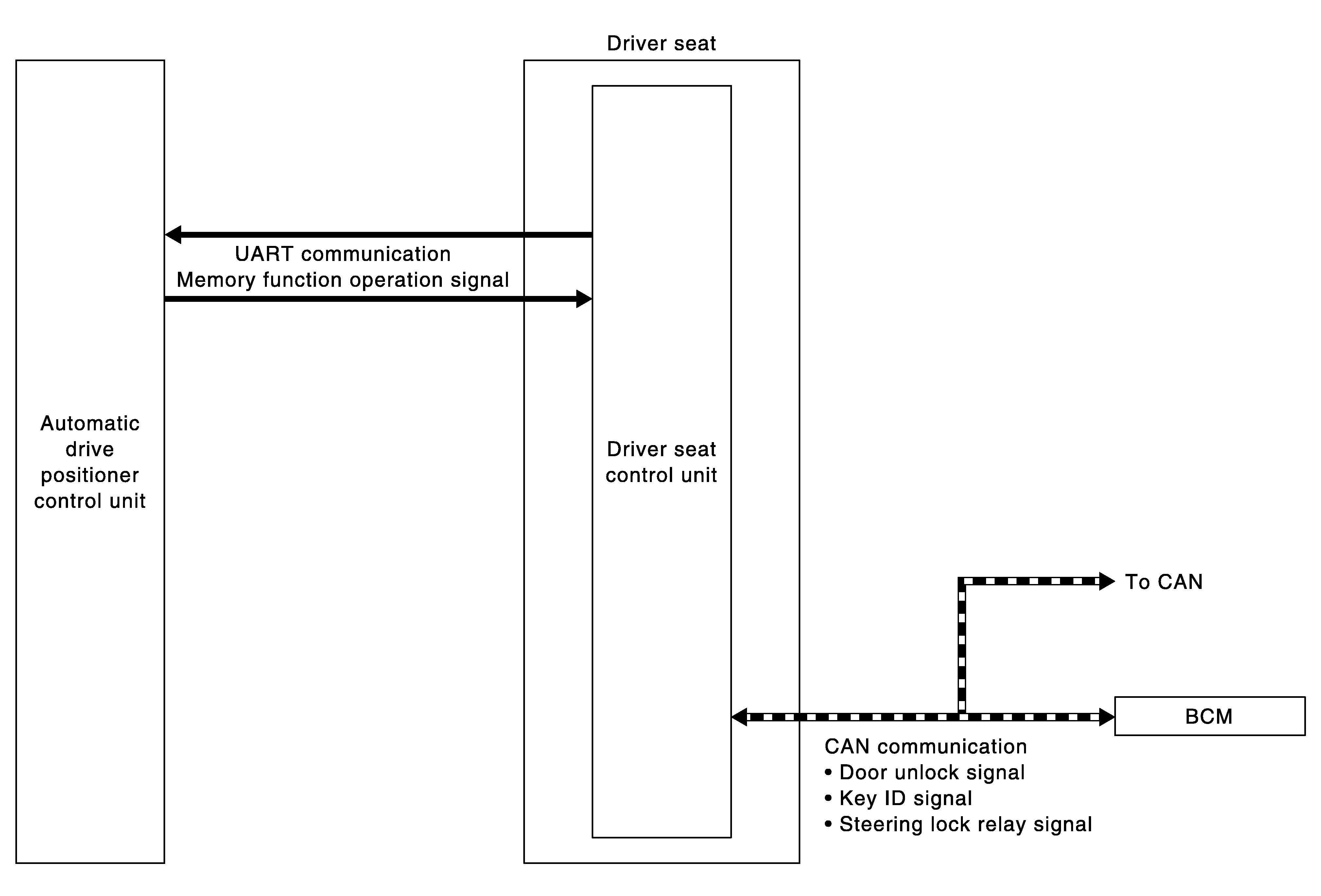

Fig 1: Automatic Drive Positioner System (Intelligent Key Interlock Function) - System Diagram
G07022271Courtesy of NISSAN MOTOR CO., U.S.A.
