A/C Assembly Connector End View (M66)

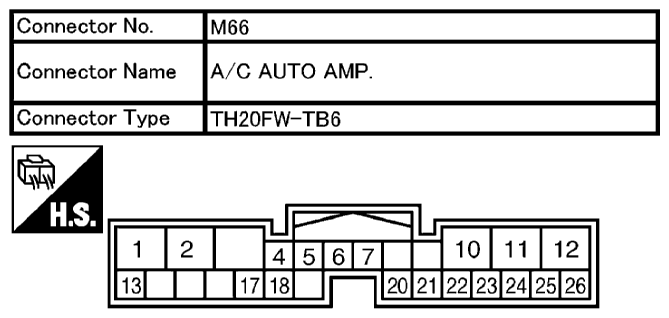

Fig 1: A/C Assembly Connector End View (M66)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
