4WAS SYSTEM : Sectional View

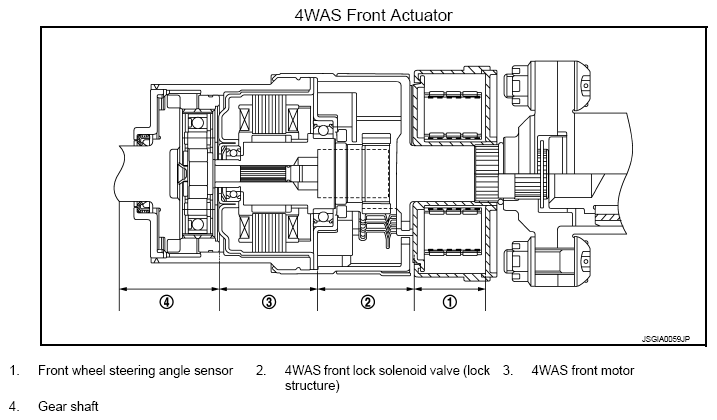

Fig 1: Sectional View Of 4WAS Front Actuator
G07021909Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying 4WAS Rear Actuator Components
G07021910Courtesy of NISSAN MOTOR CO., U.S.A.
