Display Diagnosis

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

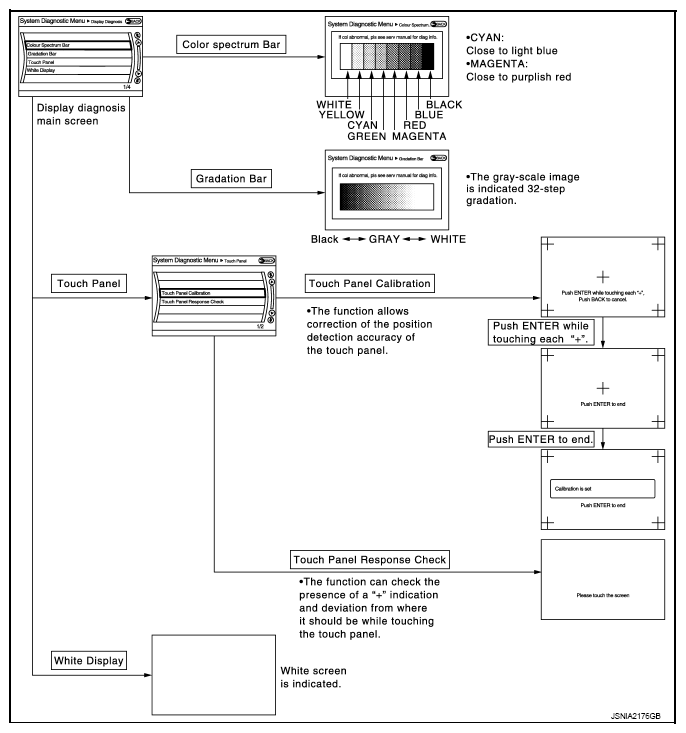

Fig 1: Identifying Display Diagnosis System Diagnostic Menu Screen
G08893342Courtesy of NISSAN NORTH AMERICA, INC.
