Alter/Confirm Configuration
WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

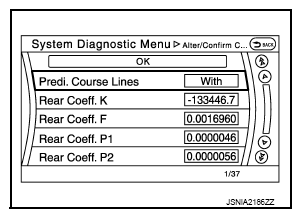

- Configuration stored in the AV control unit can be checked and modified.
CONFIGURATION LIST
| Setting item | Setting | Setting item | Setting | ||
|---|---|---|---|---|---|
| Without 4WAS | With 4WAS | Without 4WAS | With 4WAS | ||
| Predi. Course Lines | With | Wheelbase | 2.9000001 | ||
| Rear Coeff. K | -38009.06 | Total Length | 4.9489002 | ||
| Rear Coeff. F | 0.0014260 | Steering Gear Ratio | 16.704000 | 13.464000 | |
| Rear Coeff. P1 | 0.0000062 | Side Coeff. K | 0.0000000 | ||
| Rear Coeff. P2 | 0.0000056 | Side Coeff. F | 0.0000000 | ||
| Rear Coeff. C1 | 823.00000 | Side Coeff. P1 | 0.0000000 | ||
| Rear Coeff. C2 | 480.00000 | Side Coeff. P2 | 0.0000000 | ||
| Rear Coeff. D1 | 800.00000 | Side Coeff. C1 | 0.0000000 | ||
| Rear Coeff. D2 | 494.00000 | Side Coeff. C2 | 0.0000000 | ||
| Car Width | 1.8479000 | Side Coeff. D1 | 0.0000000 | ||
| Rear Offset | 0.0330000 | Side Coeff. D2 | 0.0000000 | ||
| Rear Height | 0.9336000 | Side Offset | 0.0000000 | ||
| Rear L/R Angle | 0.0000000 | Overall Height | 0.0000000 | ||
| Rear Up/Dn Angle | 48.830001 | Side L/R Angle | 0.0000000 | ||
| Rear Roll Angle | 0.0000000 | Side Up/Dn Angle | 0.0000000 | ||
| Bumper Rear Dist. | 0.1230000 | Side Roll Angle | 0.0000000 | ||
| Bumper Rear Ax Dist | 1.1476001 | Side Front End Dist | 0.0000000 | ||
| Steer. Max Angle | 524.33856 | 422.63496 | Total Width | 0.0000000 | |
| Min. Turning Red. | 5.3000002 | - | - | ||
