Security Control System: Wiring Diagram

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

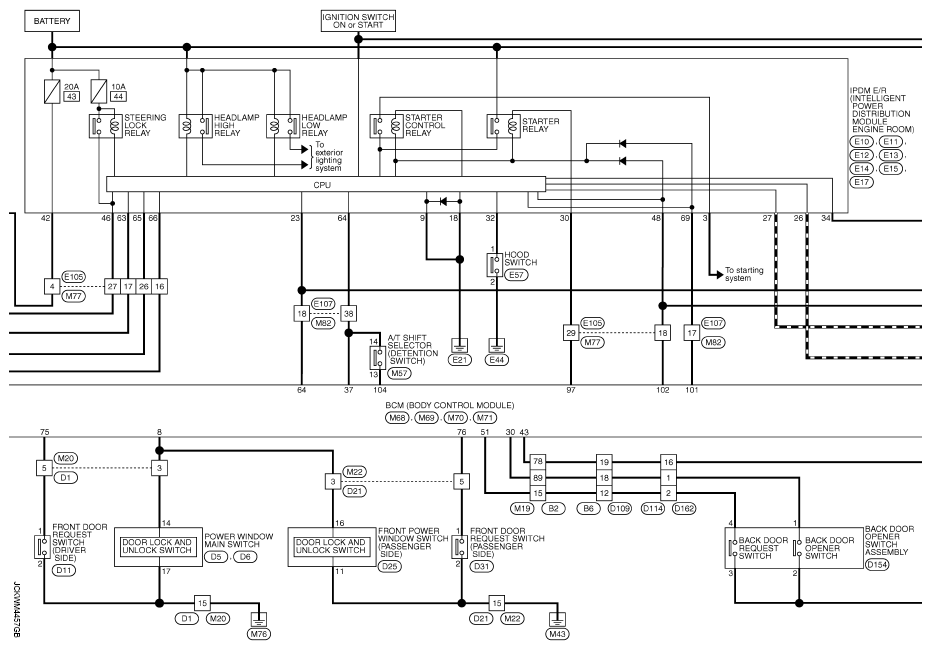

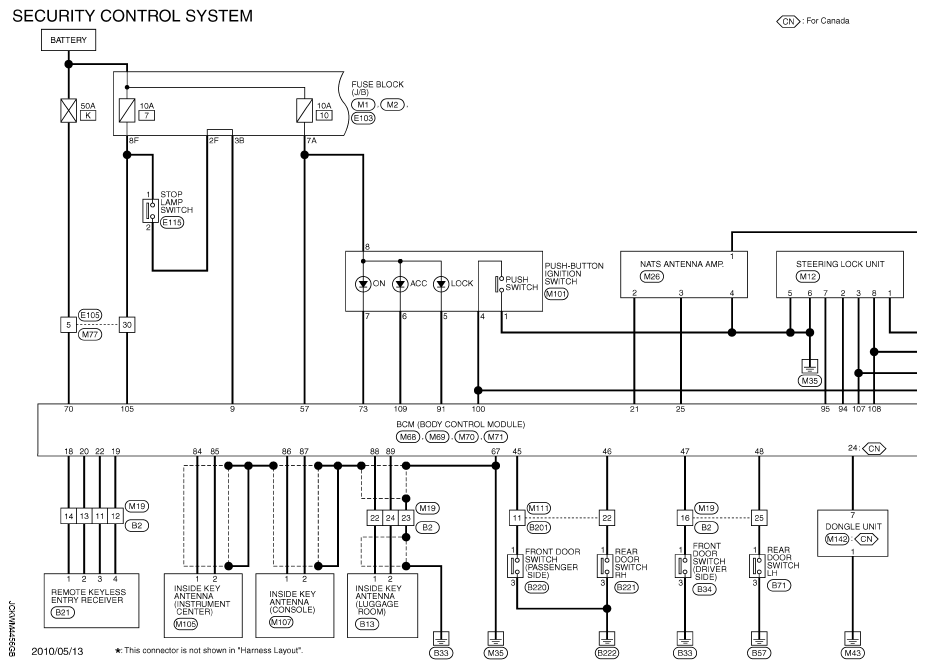

Fig 1: Security Control System - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

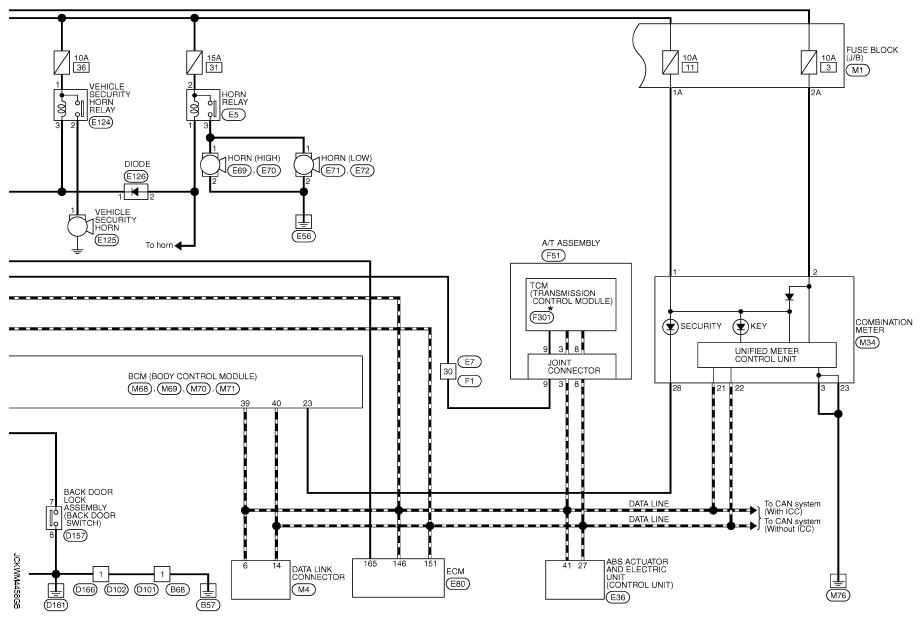

Fig 2: Security Control System - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Security Control System - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

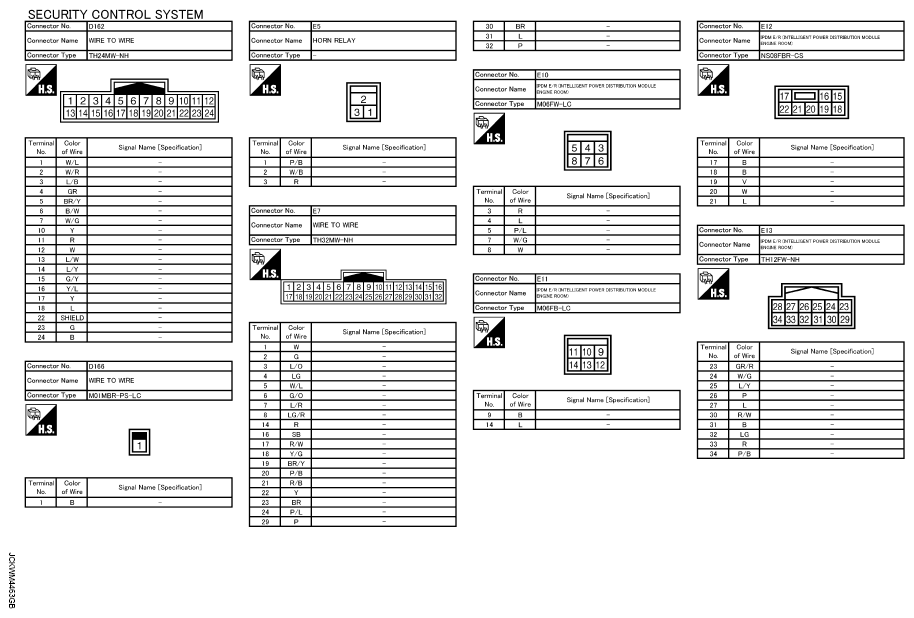

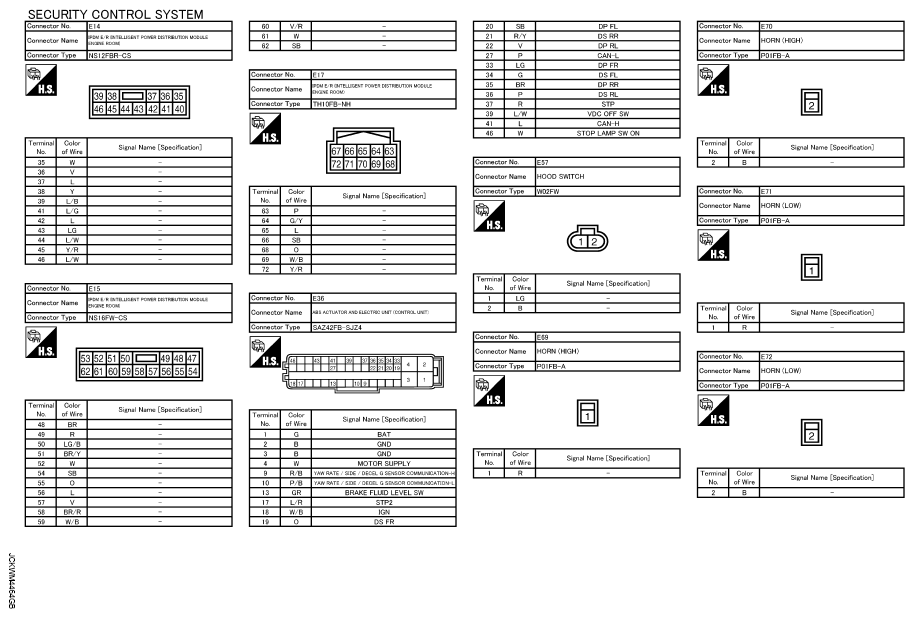

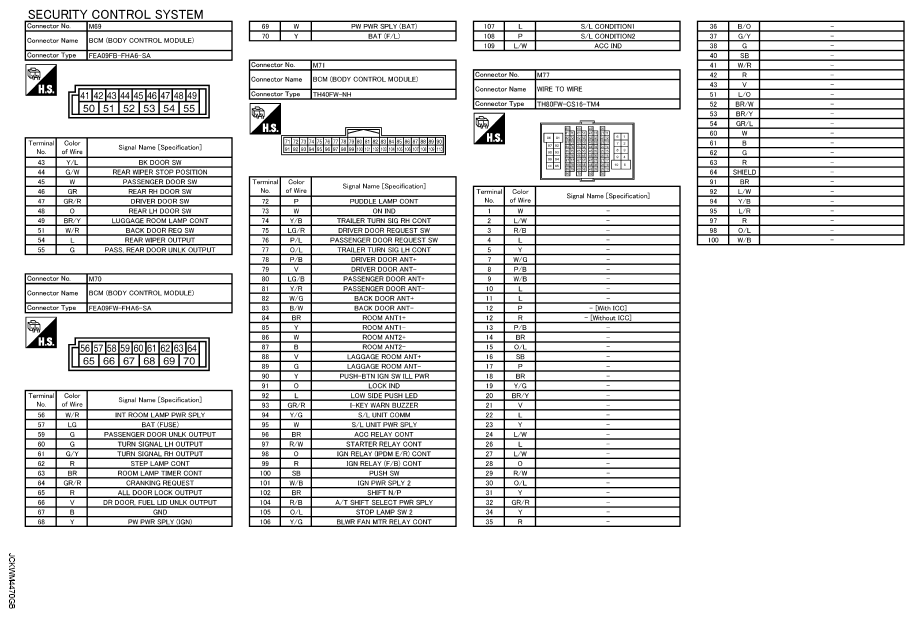

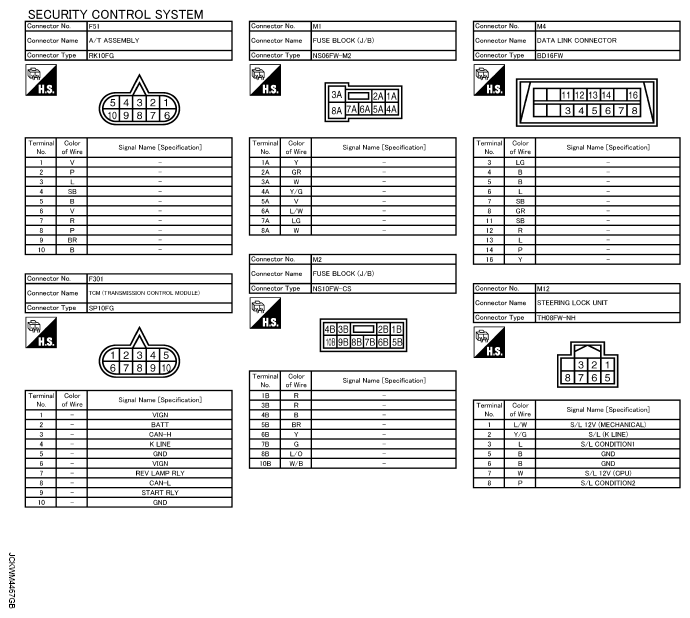

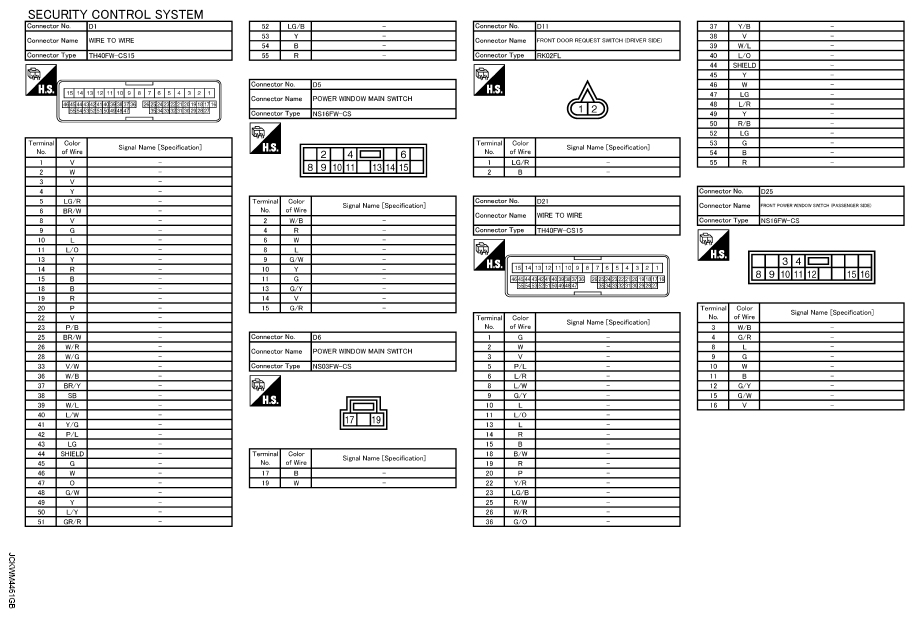

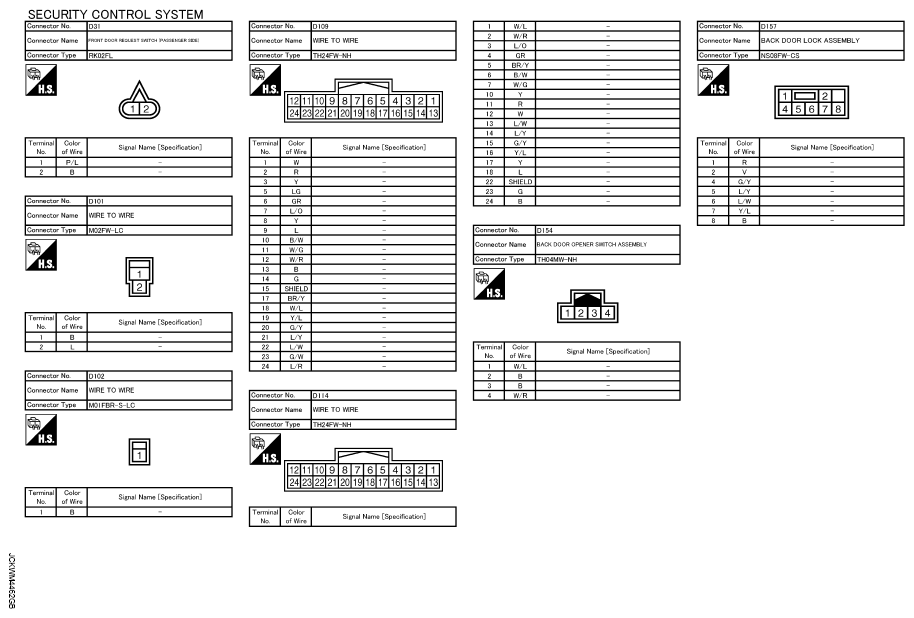

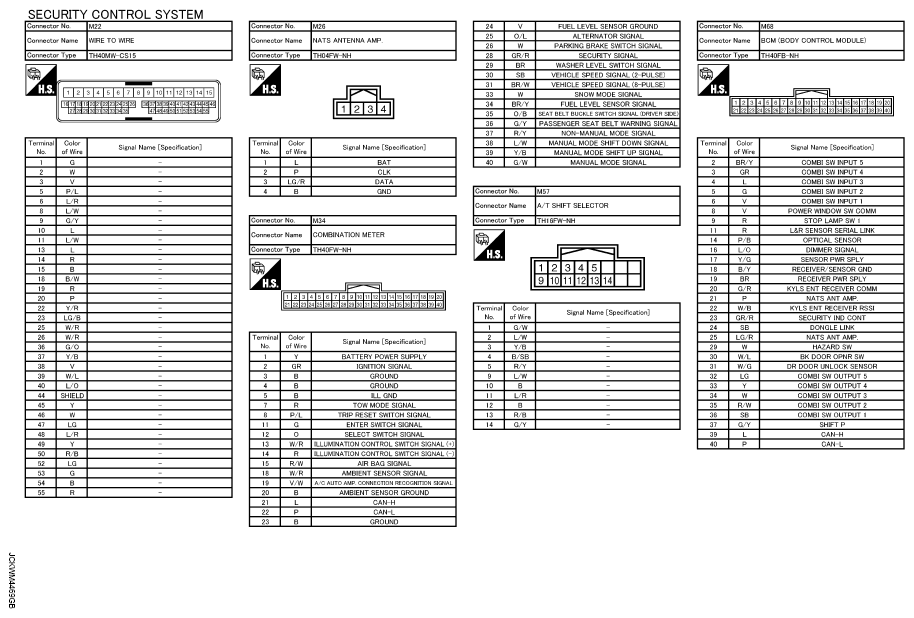

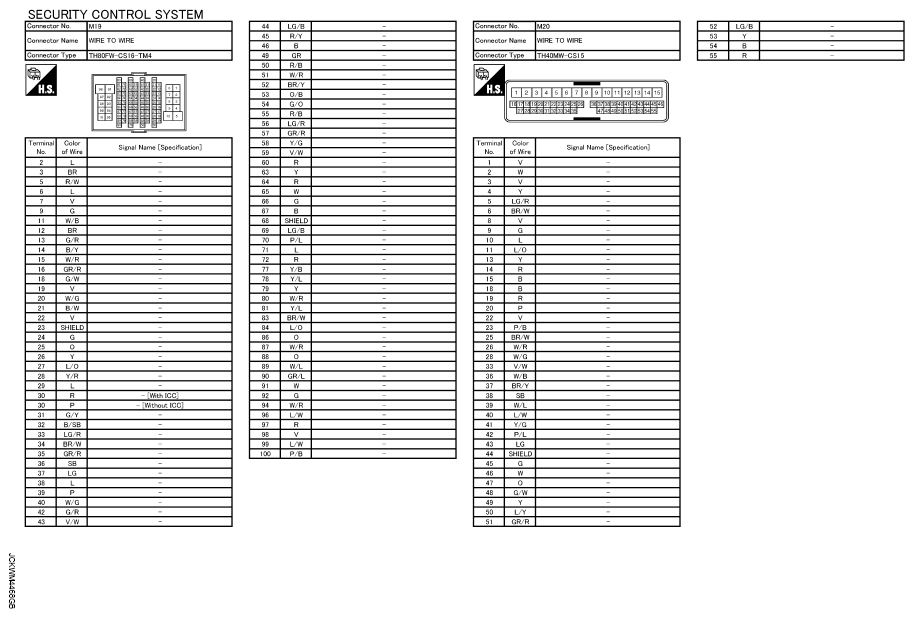

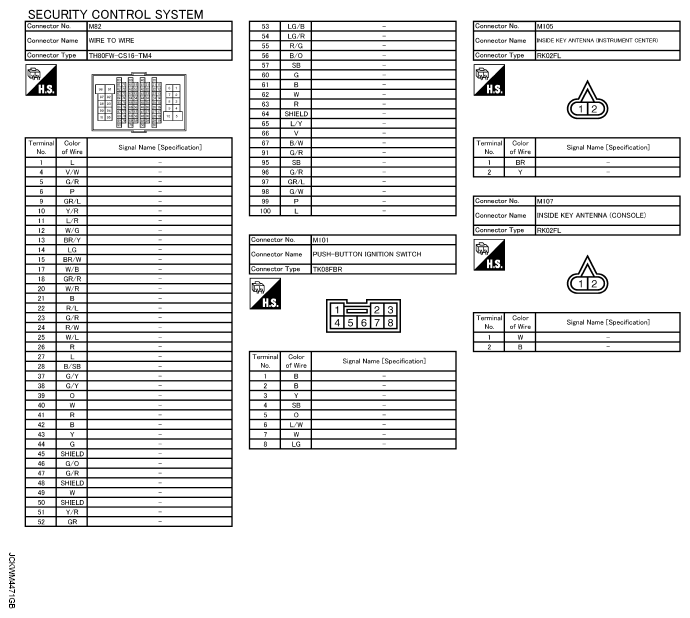

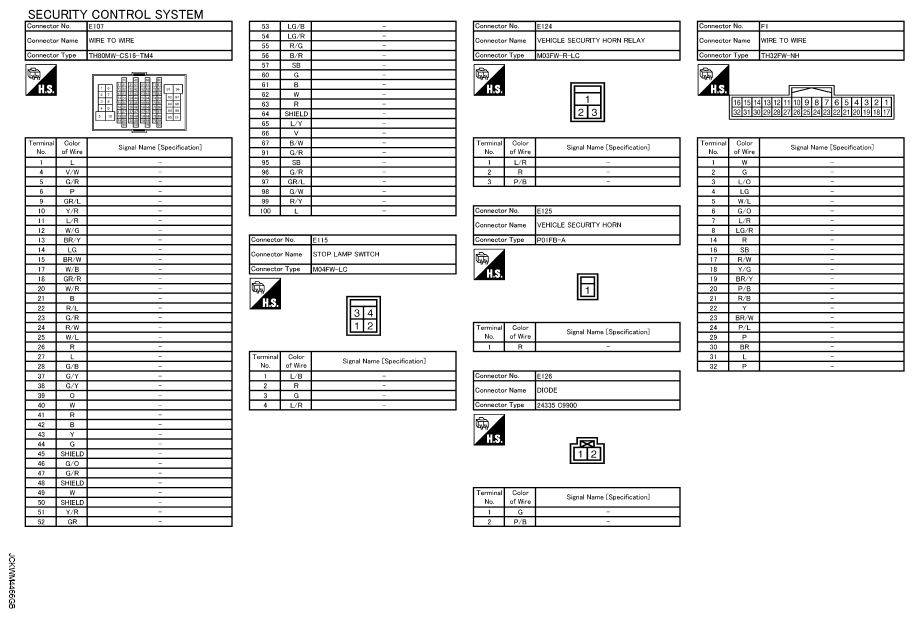

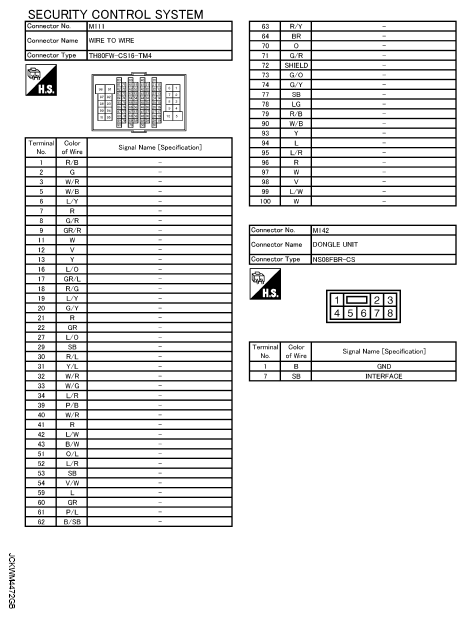

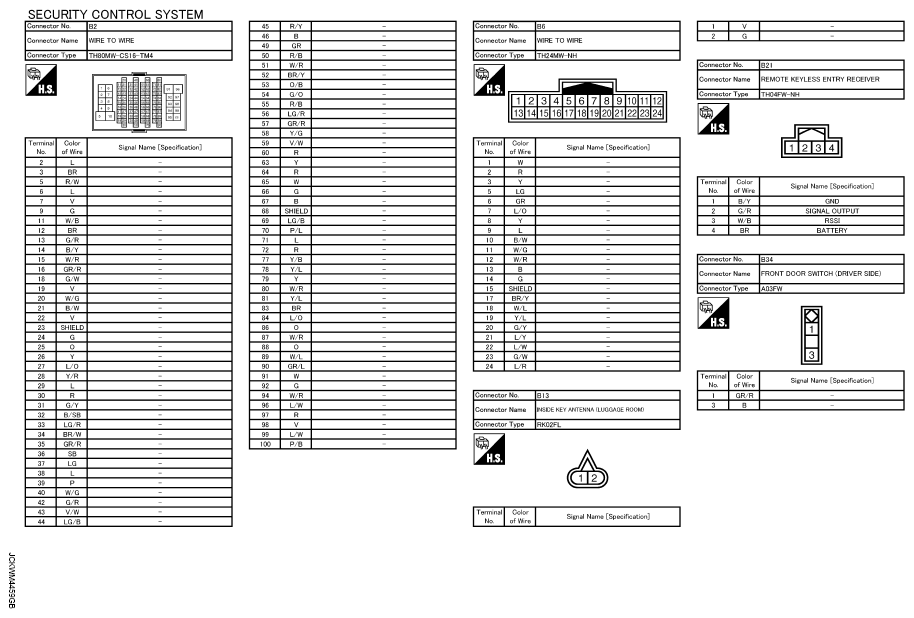

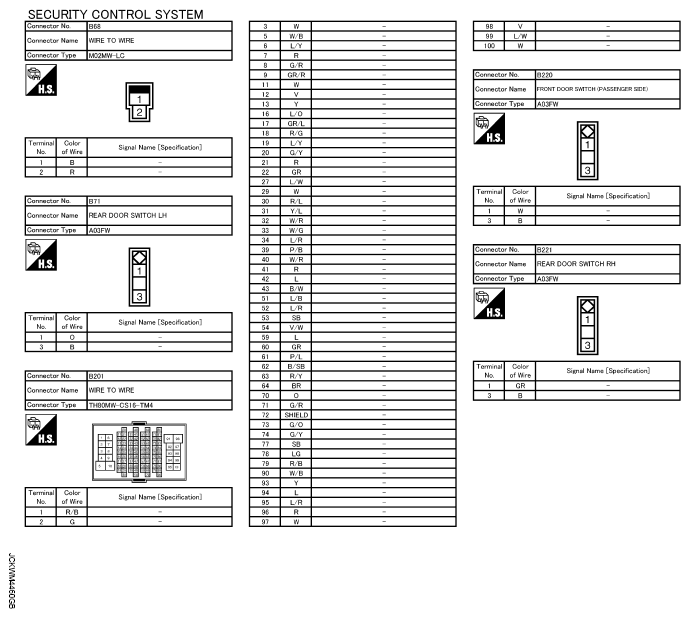

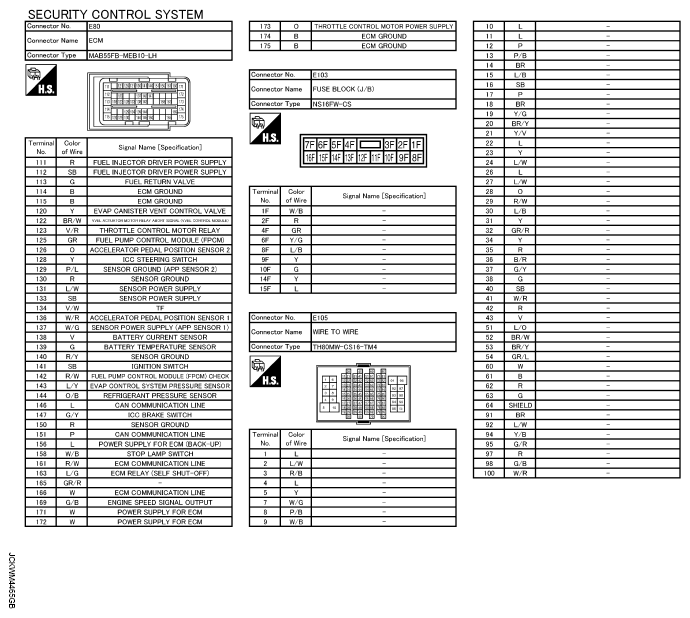

Fig 4: Identifying Security Control System Connectors (1 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Security Control System Connectors (2 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Security Control System Connectors (3 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Security Control System Connectors (4 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Security Control System Connectors (5 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Security Control System Connectors (6 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Security Control System Connectors (7 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Security Control System Connectors (8 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Security Control System Connectors (9 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Security Control System Connectors (10 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Security Control System Connectors (11 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Security Control System Connectors (12 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Security Control System Connectors (13 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Security Control System Connectors (14 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.
