Electric Throttle Control Actuator: Outline

WARNING: This page is about a different car, the 2013 Infiniti M56. However, it is still accessible from the selected car via links, so may be relevant.

Electric throttle control actuator consists of throttle body, throttle valve, throttle control motor and throttle position sensor.

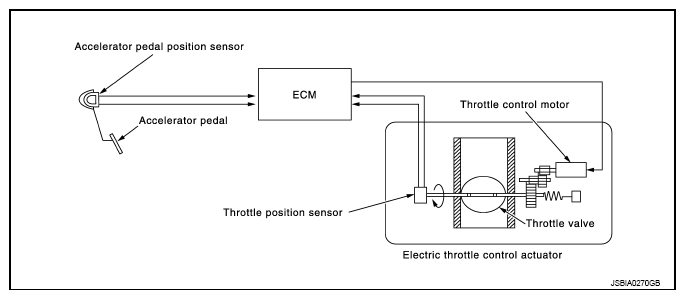

Fig 1: Electric Throttle Control Actuator Communication Diagram
G08896973Courtesy of NISSAN NORTH AMERICA, INC.
