Data Monitor
Fig 1: Data Monitor Items Description Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

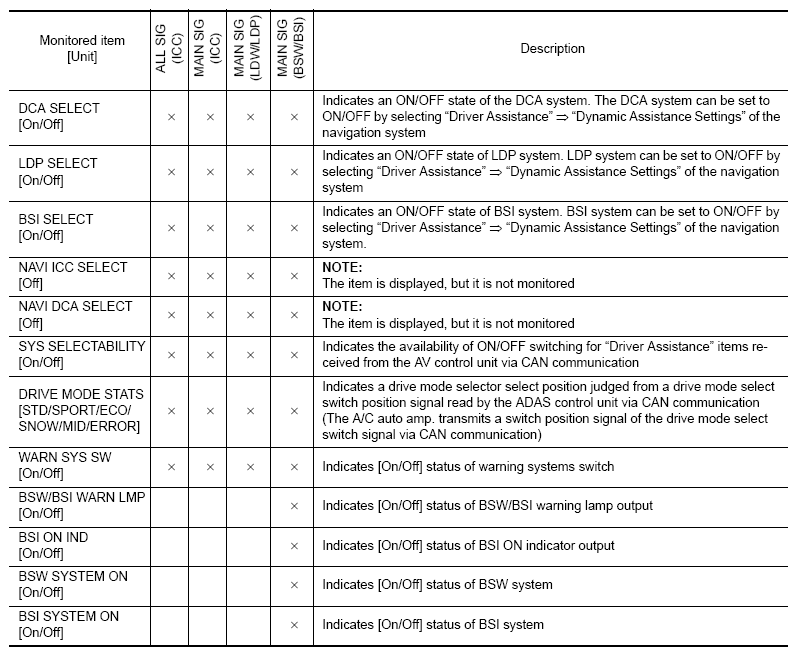

Fig 2: Data Monitor Items Description Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Data Monitor Items Description Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

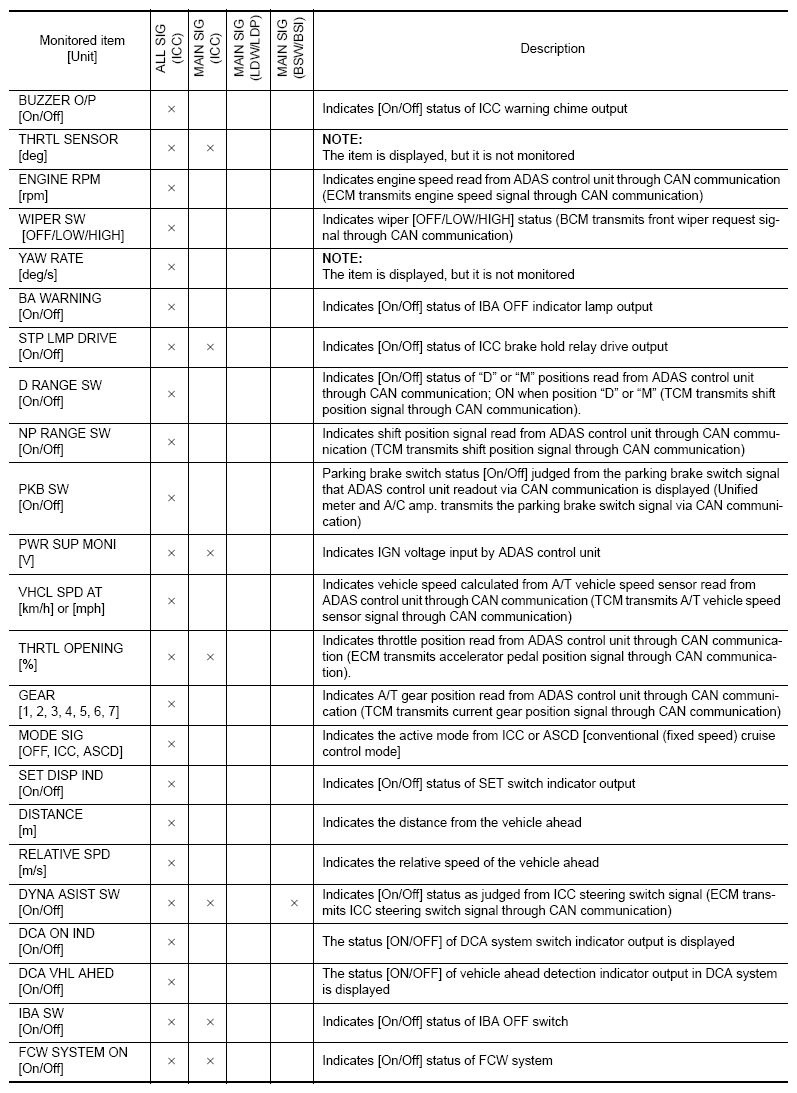

Fig 4: Data Monitor Items Description Chart (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
