Exploded View

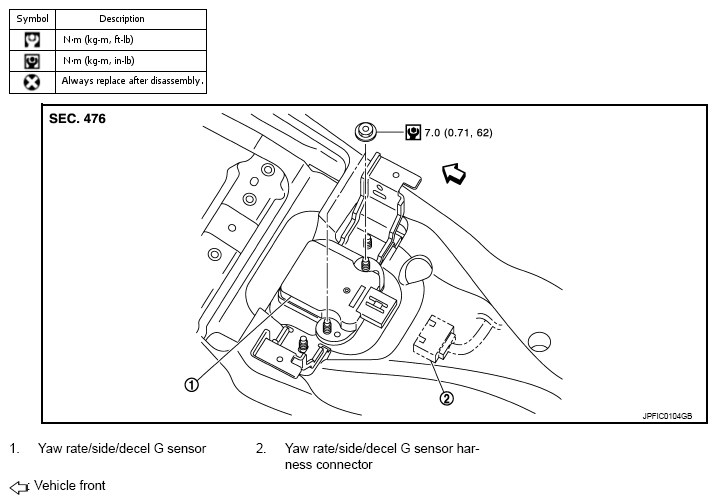

Fig 1: Yaw Rate/Side/Decel G Sensor & Harness Connector With Torque Specifications
G07019516Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
