Exploded View

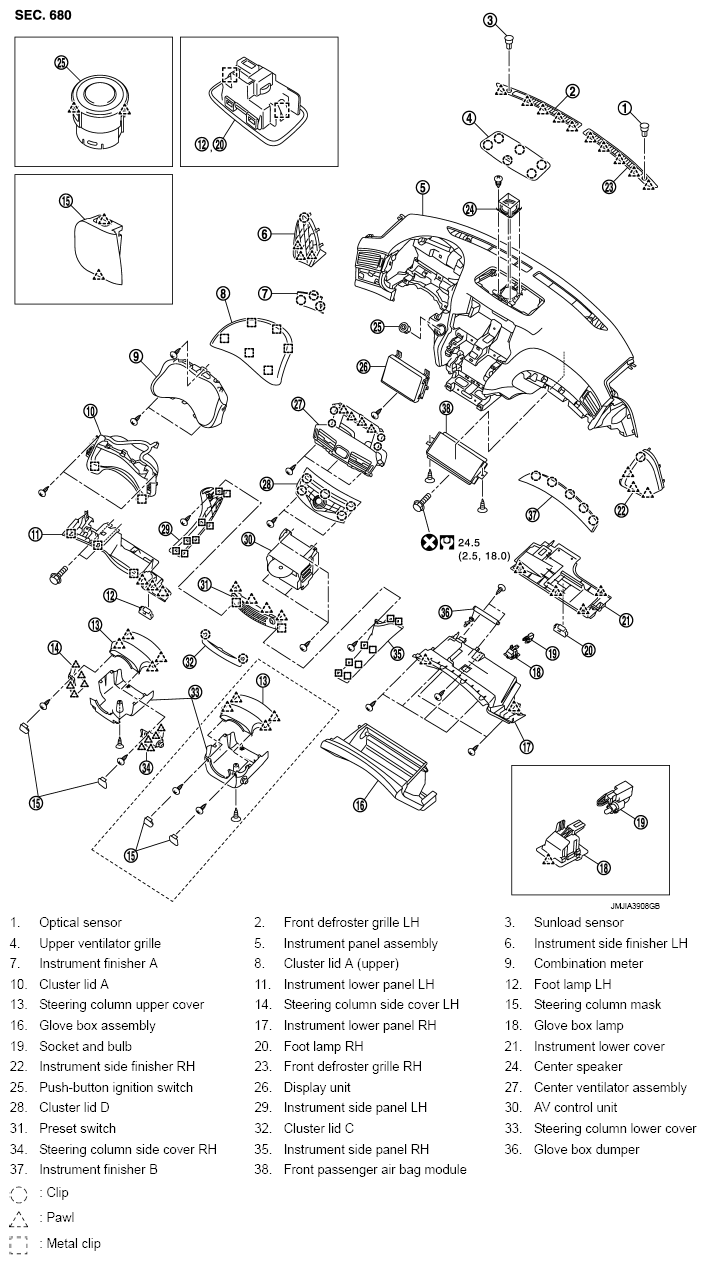

Fig 1: Exploded View Of Instrument Panel Assembly
G07019736Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
