Work Procedure: Notes

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

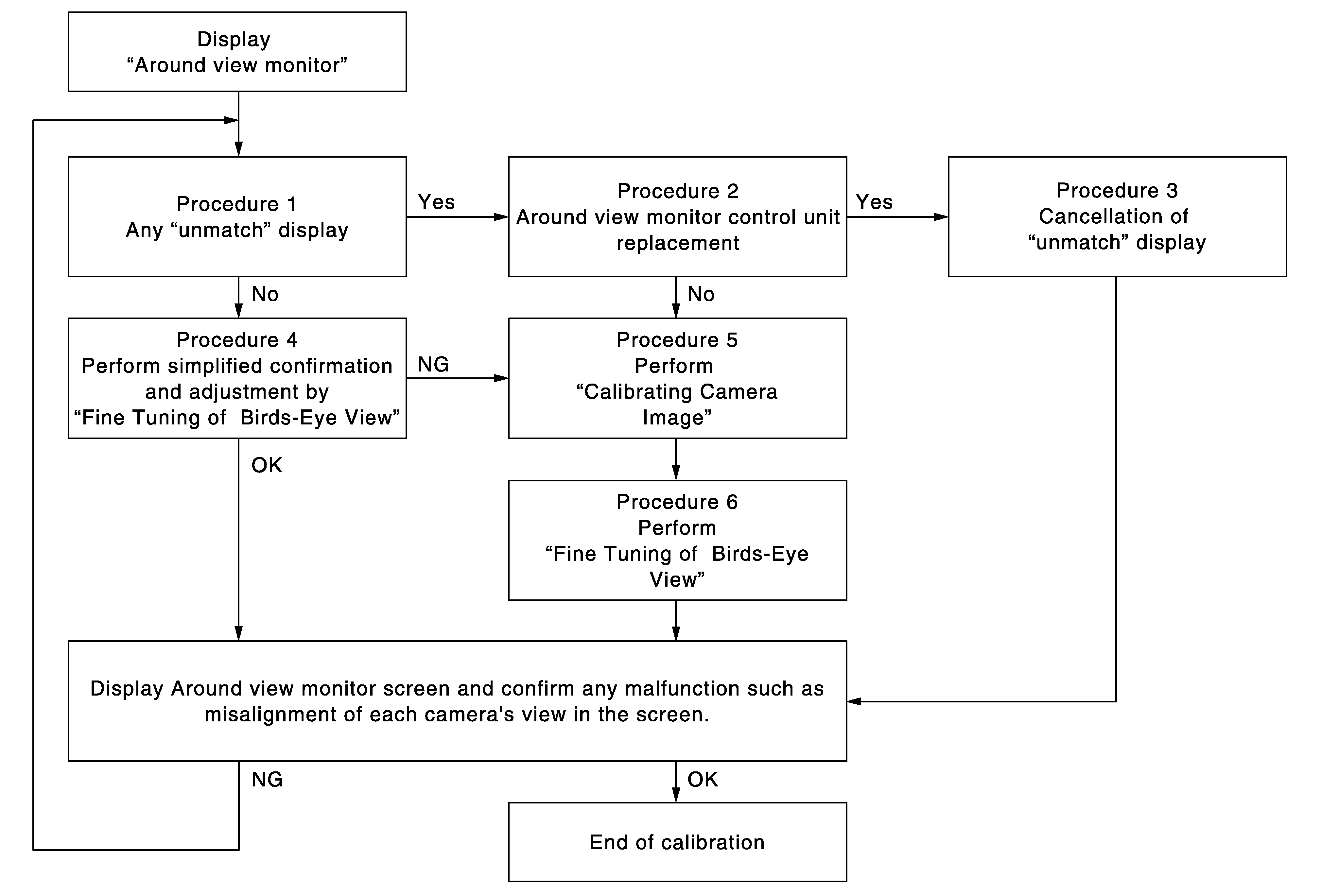

Calibration flowchart

Following the flowchart shown in the figure, perform the calibration.

Fig 1: Calibration Flowchart

Courtesy of NISSAN MOTOR CO., U.S.A.

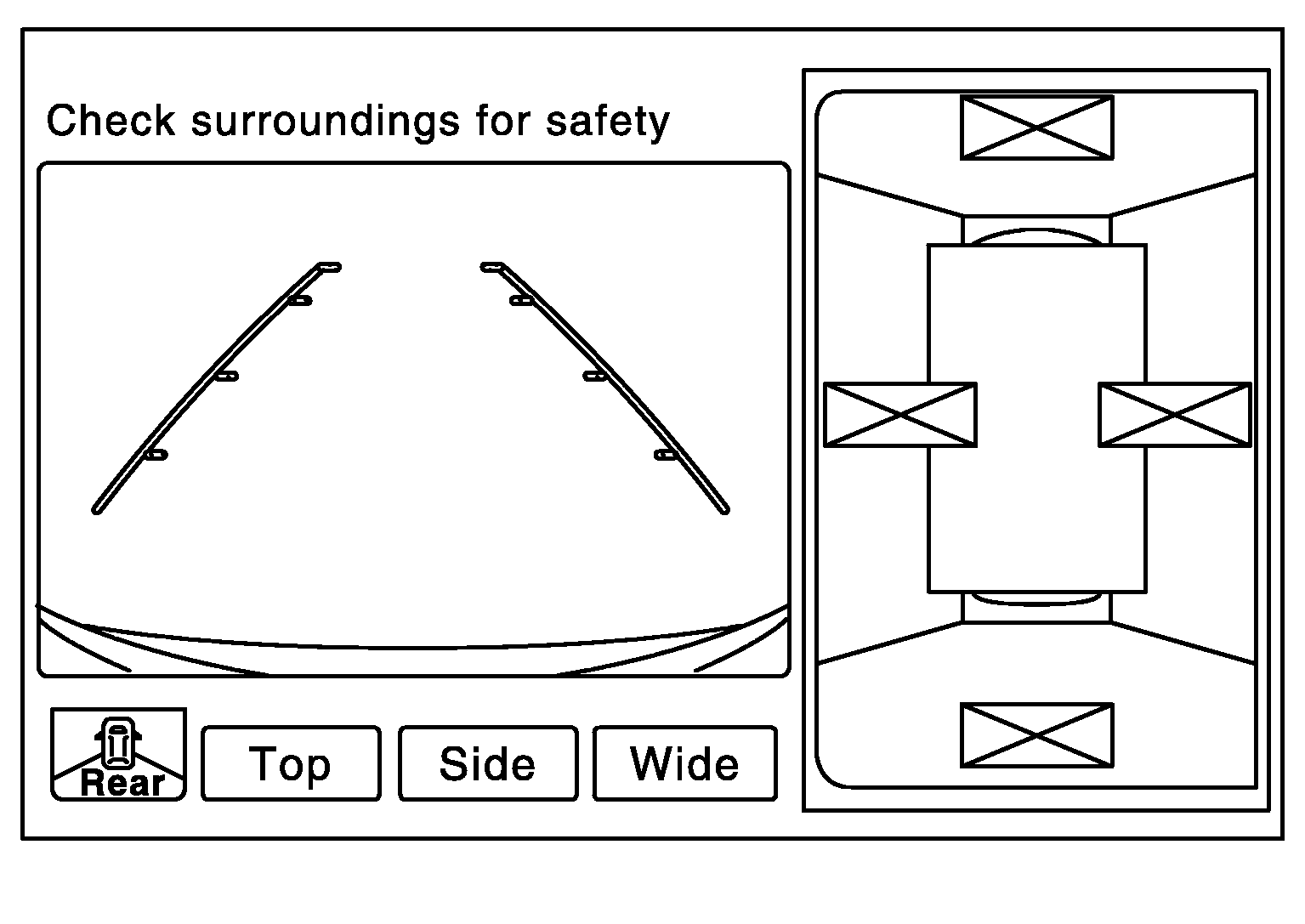

NOTE: In the un-match display, the un-match camera position is indicated as "" on the birds-eye view.

Fig 2: Screen Display - Birds-Eye View

Courtesy of NISSAN MOTOR CO., U.S.A.
