Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Instrument side panel LH and RH. Refer to "REMOVAL AND INSTALLATION ".

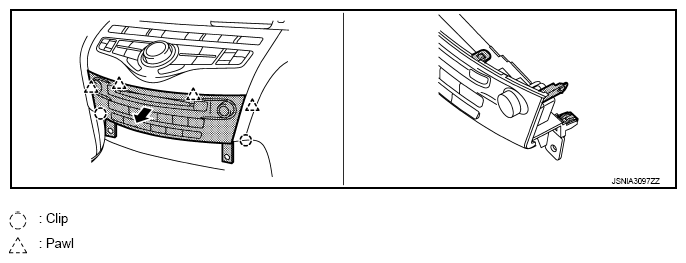

Remove the preset switch straight from the instrument panel assembly while disengaging the resin clips and pawls with a remover.

Fig 1: Removing Instrument Side Panel LH And RH
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- The resin clips and pawls must be disengaged slowly to avoid damage to the pawls and the preset switch.
- Place protective tape on the area of using the remover to avoid damage.
