Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trunk lid inner finisher. Refer to "REMOVAL AND INSTALLATION ".
Disconnect the connector.
Insert a tool as shown in the figure below into the groove and push the pawl to remove the rear view camera (2) from the inner bracket (1) of the trunk lid finisher.

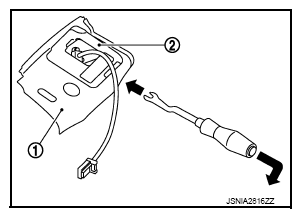

Fig 1: Removing Rear View Camera From Inner Bracket Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.
