Component Inspection

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.

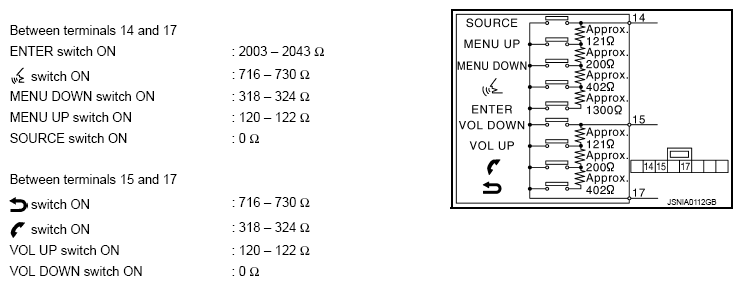

Fig 1: Measuring Resistance Between Steering Switch Connector Terminals 14 To 17 And 15 To 17
G08259679Courtesy of NISSAN NORTH AMERICA, INC.
