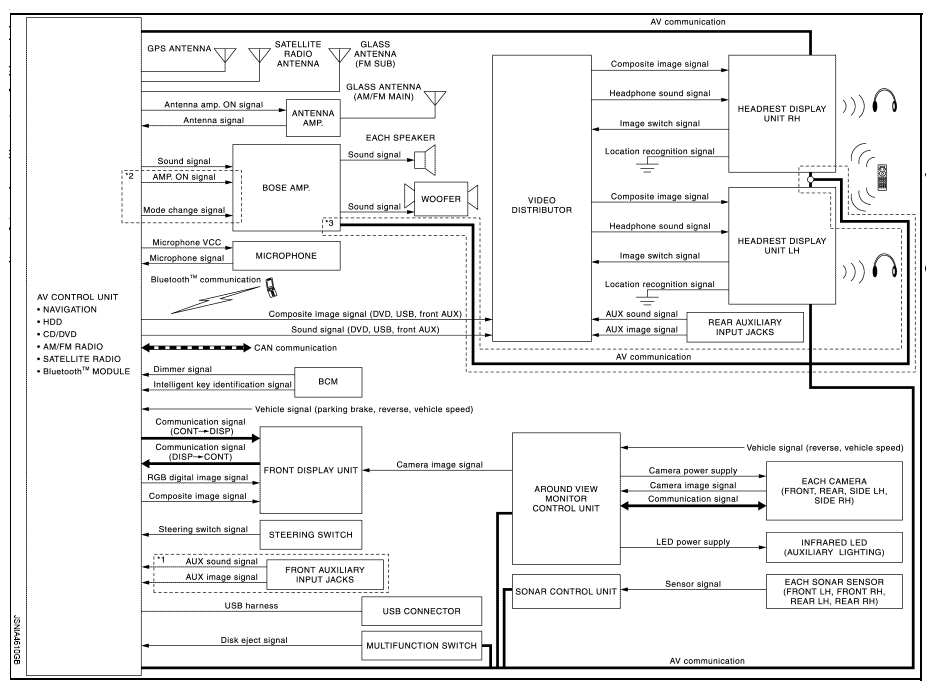

MULTI AV SYSTEM: System Diagram
WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
- *1: Models with front auxiliary input function.
- *2: Models with 13 speakers.
- *3: Models with 15 speakers.
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
