A/T CONTROL SYSTEM: Component Parts Location

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

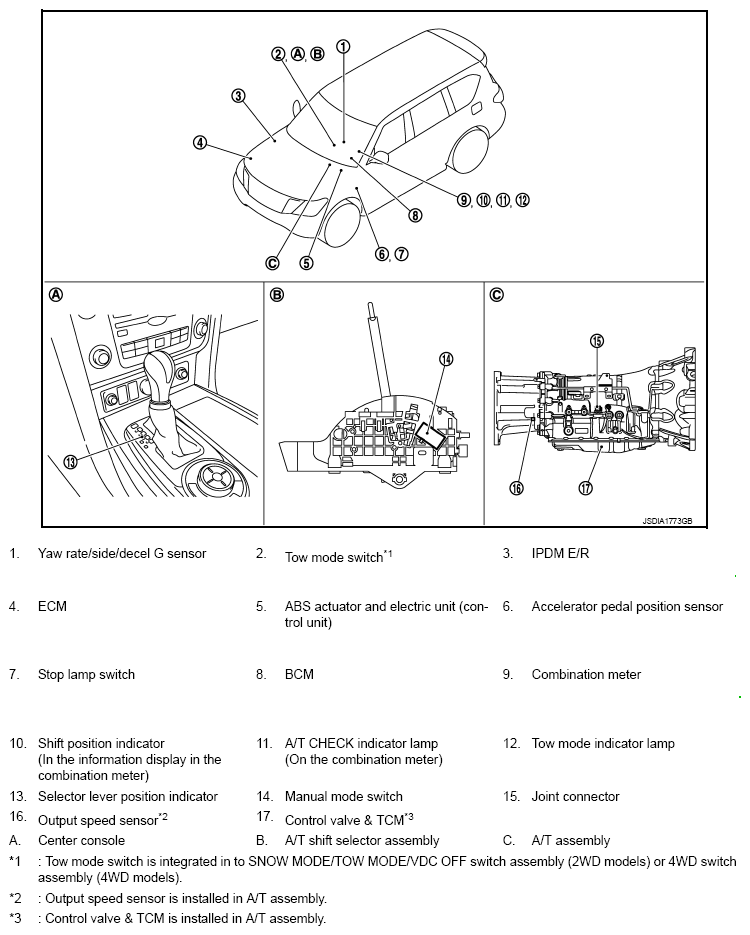

Fig 1: A/T Control System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The following components are included in the control valve & TCM (17. in figure above):

TCM
Input speed sensor 1, 2
A/T fluid temperature sensor
Transmission range switch
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Input clutch solenoid valve
Front brake solenoid valve
Low brake solenoid valve
Anti-interlock solenoid valve
2346 brake solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve
