Exploded View

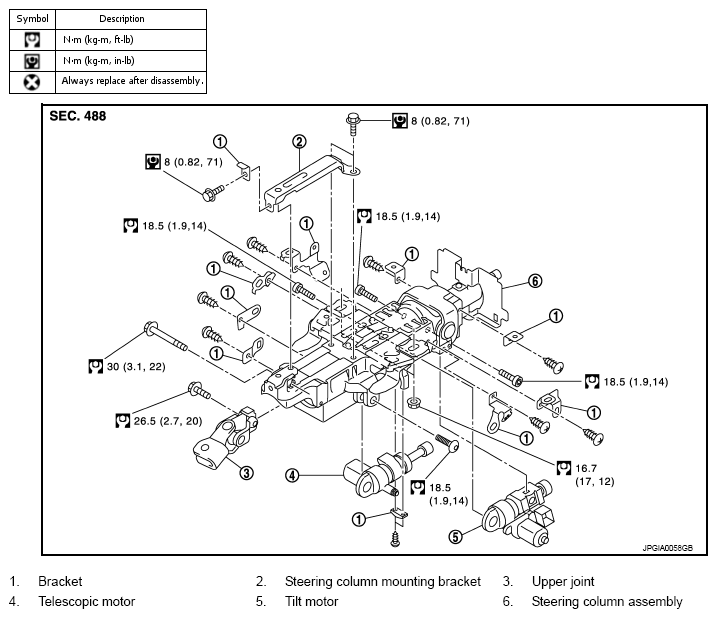

Fig 1: Exploded View Of Steering Column With Torque Specifications
G07019555Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
