Engine Room Compartment

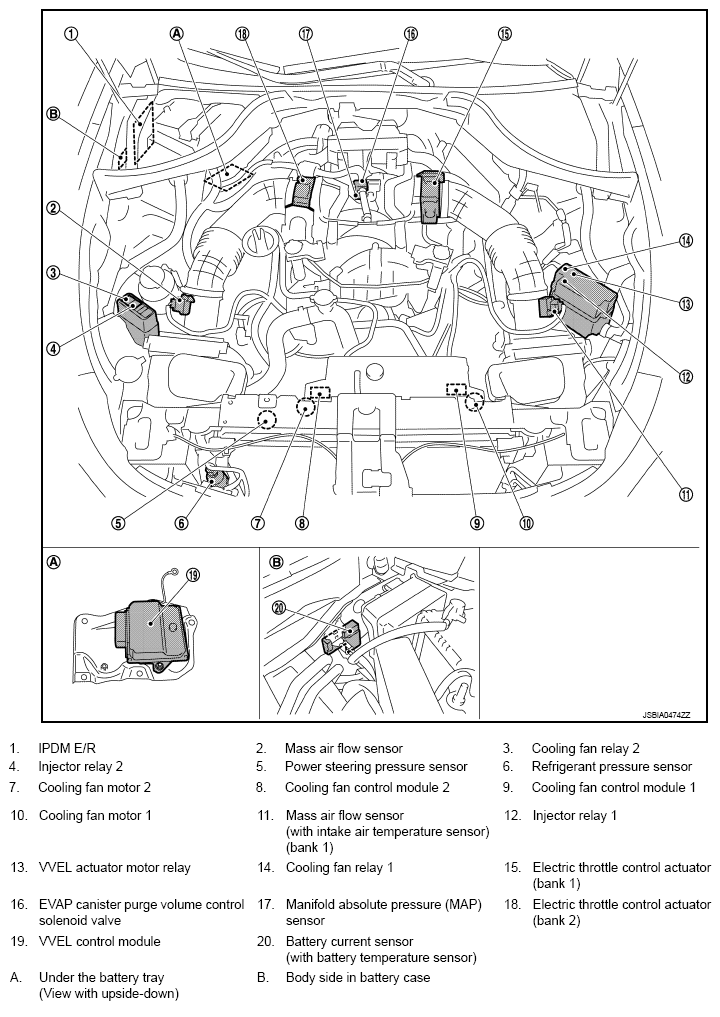

Fig 1: Identifying Engine Control System Component Parts Location - Engine Room Compartment
Courtesy of NISSAN MOTOR CO., U.S.A.
