High Pressure Fuel Pump

The high pressure fuel pump is installed at the front of the engine bank 2 side and activated by the camshaft. ECM controls the high pressure fuel pump control solenoid valve built into the high pressure fuel pump and adjusts the amount of discharge by changing the suction timing of the low pressure fuel.

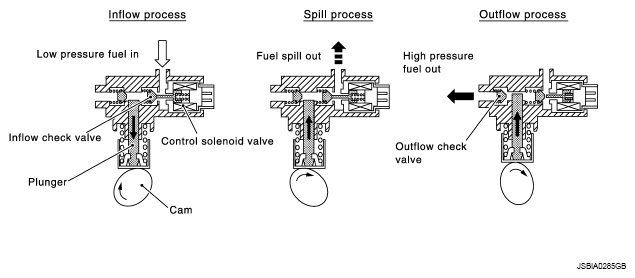

Fig 1: High Pressure Fuel Pump Operating Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

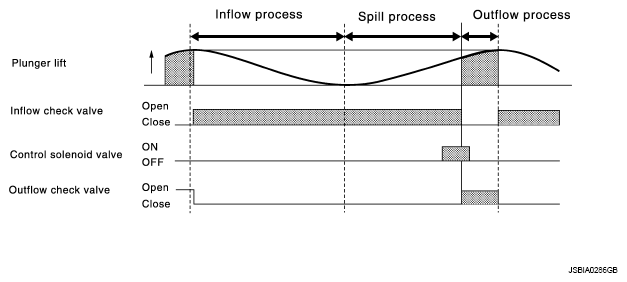

Fig 2: High Pressure Fuel Pump Operating Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
